Expansion Block/Orifice Tube: Locations

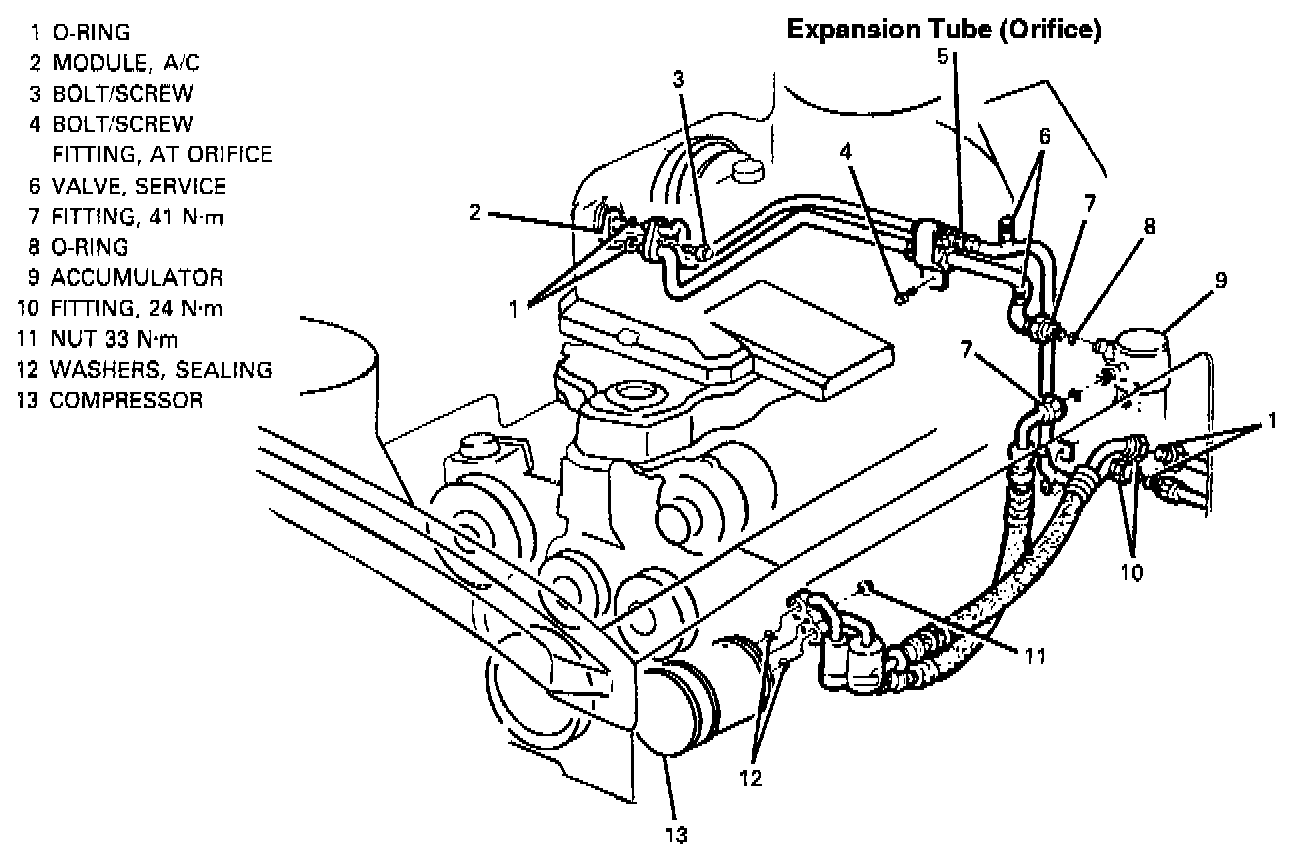

Refrigerant Lines And Routing:

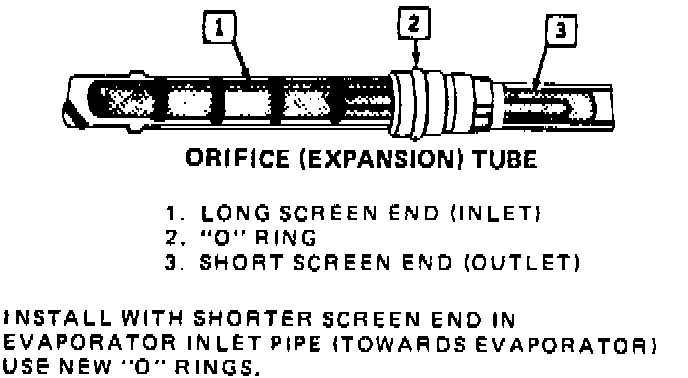

Expansion Tube (Orifice):

The Expansion tube (orifice) is located in the liquid line from the condenser to the evaporator at the fitting on inside left front fender.
