Trailing Arm: Service and Repair

Fig. 4 Exploded View Of Tri-link Suspension Assembly:

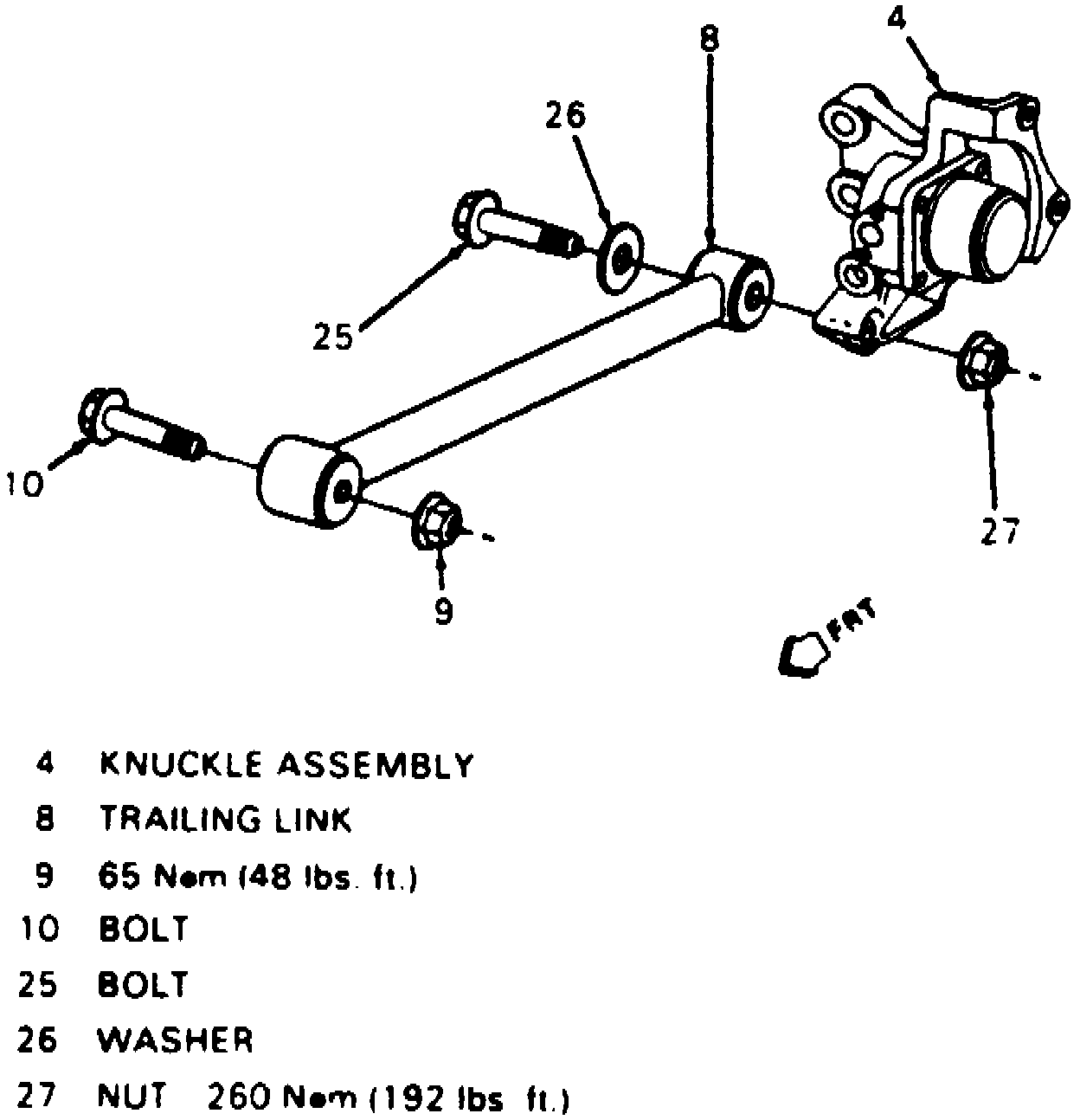

Fig. 5 Exploded View Of Trailing Rod:

1. Raise and support vehicle.
2. Disconnect anti-lock brake system electrical harness connector, if equipped.
3. Remove trailing rod to knuckle attaching nut and bolt, then the trailing rod (link) to body attaching nut and bolt, Fig. 4 and 5 .
4. Remove trailing rod.
5. Reverse procedure to install. Tighten trailing rod to body nut and trailing link to knuckle nut to specifications.
