Cross Groove Design Front Axle

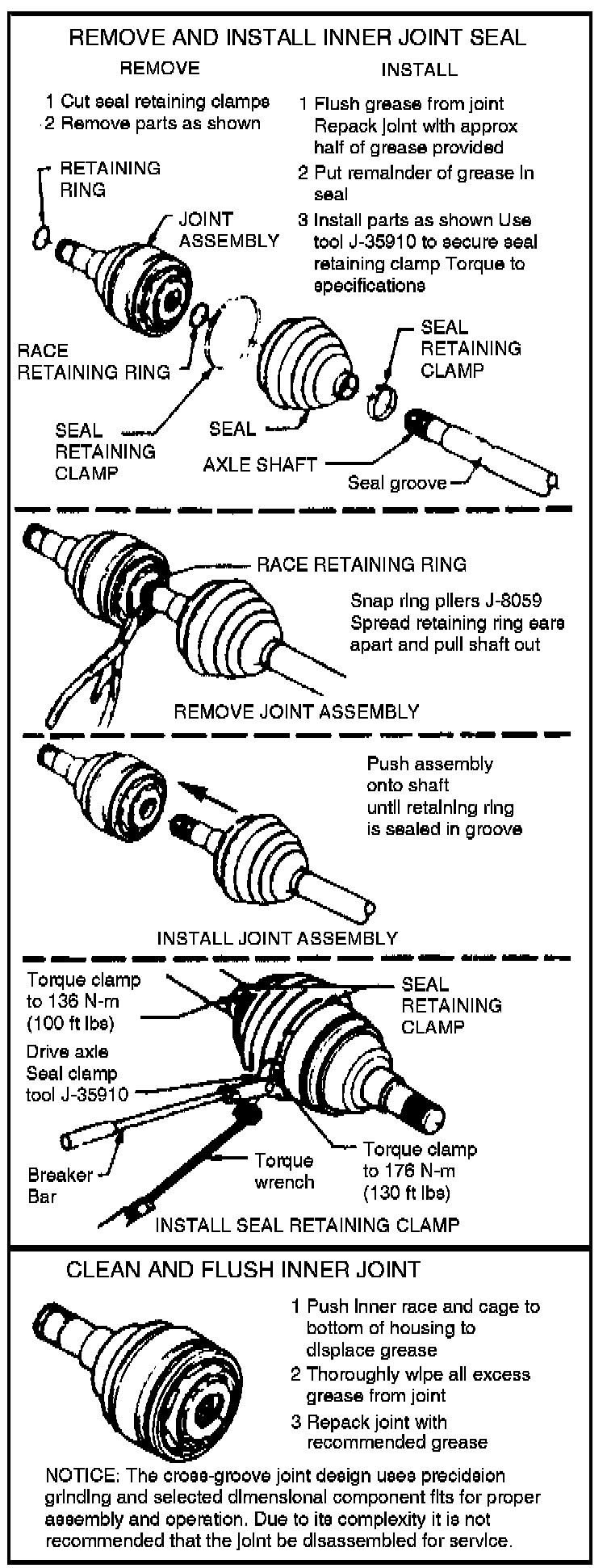

Fig. 15 Cross Groove Inner Joint Seal Replacement. With Cross Groove Inner Joint.:






For removal and installation procedures refer to Fig. 15 .
