Outer Constant Velocity Joint & Seal

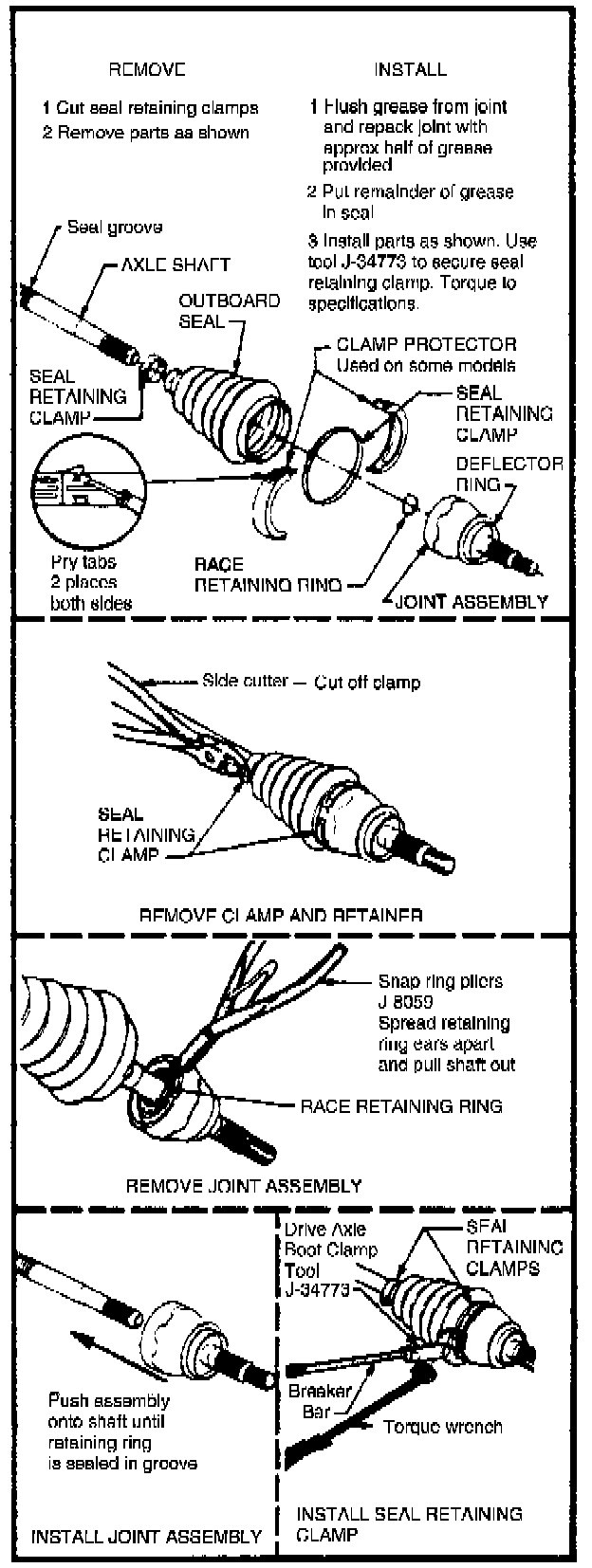

Fig. 16 Outer Constant Velocity Joint Seal Replacement.:

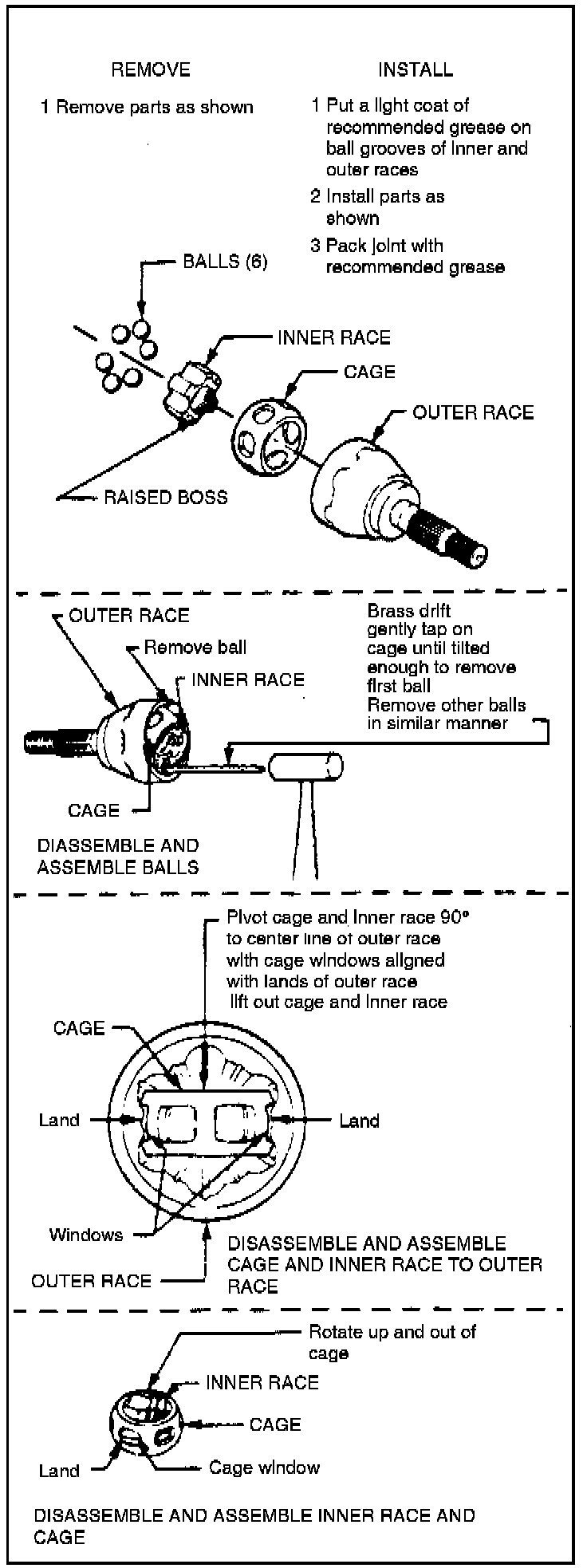

Fig. 17 Outer Constant Velocity Joint.:

For removal and installation procedures refer to Fig. 16 and 17 .
