Inner Tripot & Seal

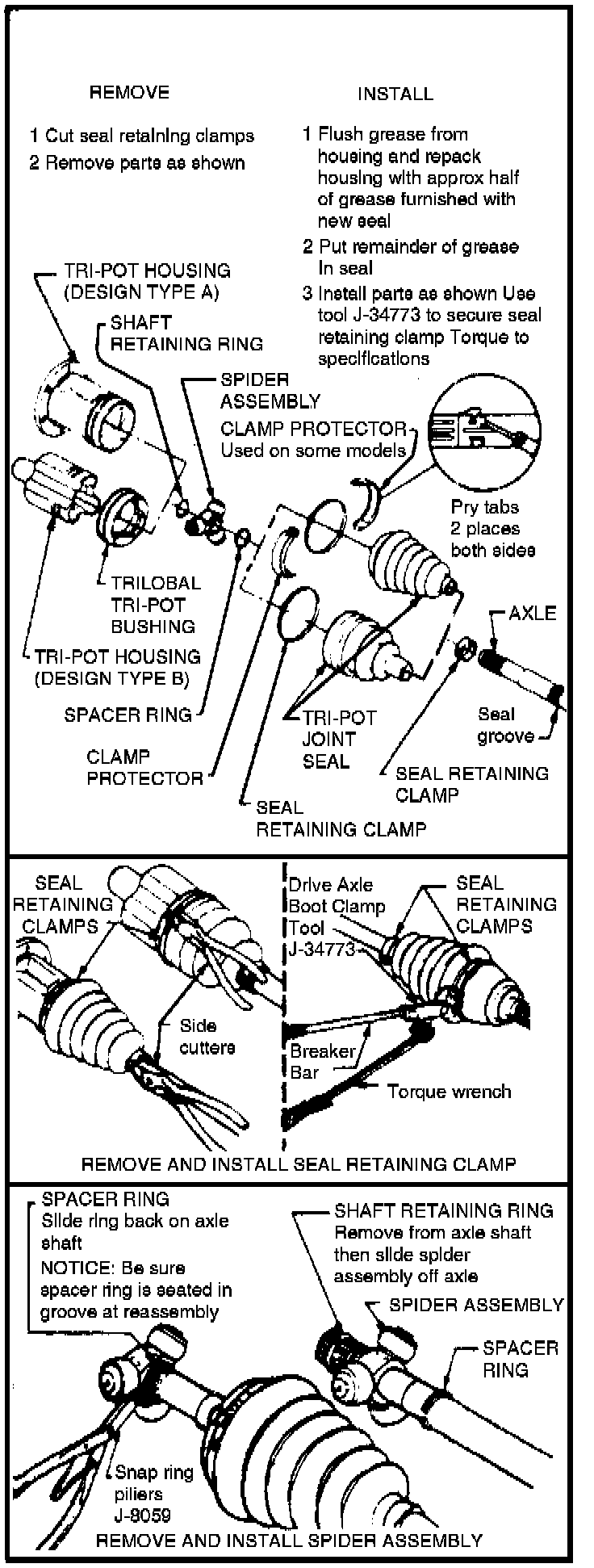

Fig. 18 Inner Tripot Seal Replacement.:

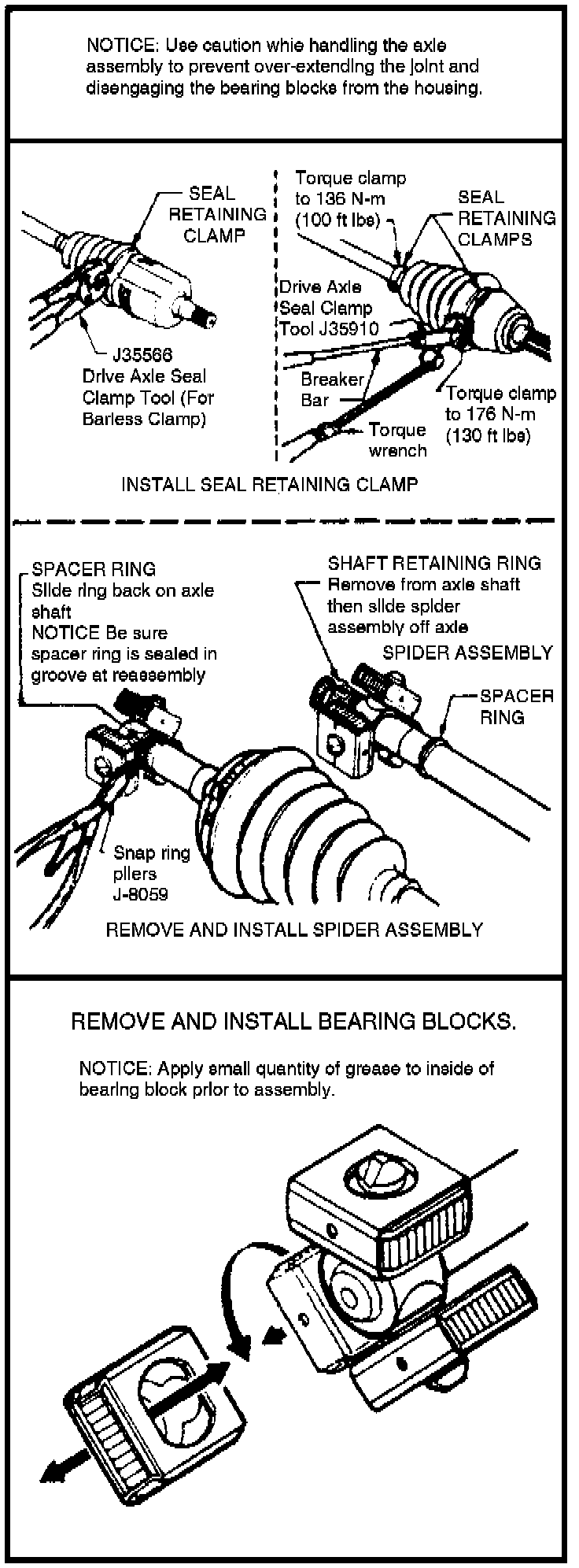

Fig. 19 Inner Tripot Seal Replacement (Part 1 Of 2).:

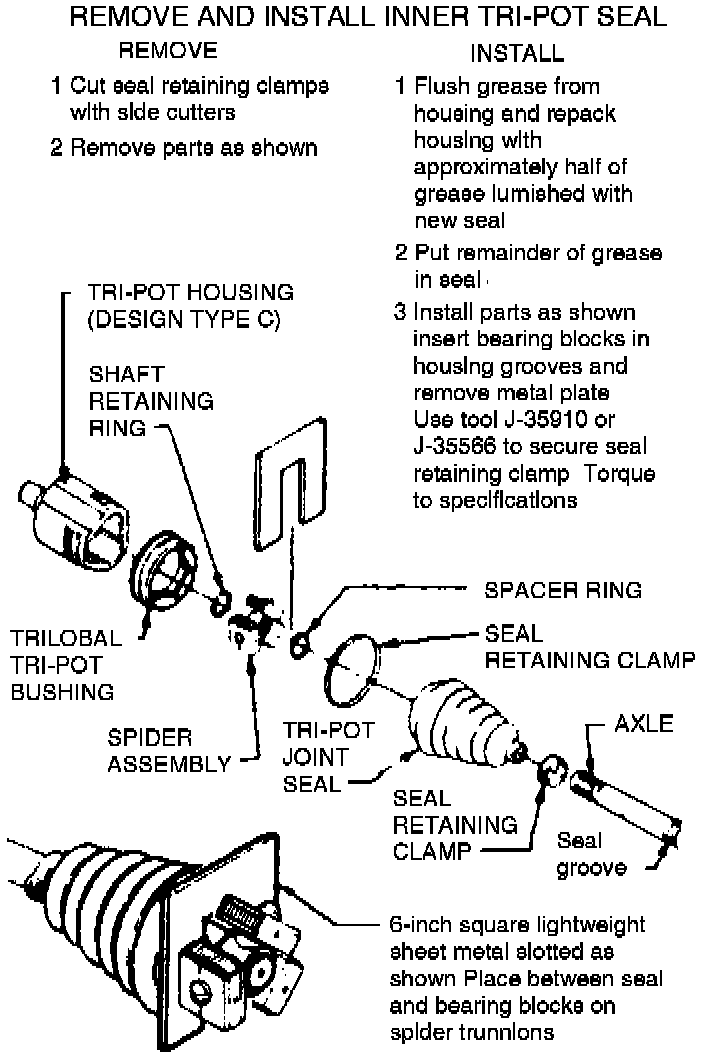

Fig. 19 Inner Tripot Seal Replacement (Part 2 Of 2).:

For removal and installation procedures, refer to Figs. 18 and 19 .
