Torque Converter Clutch (TCC) Solenoid

TORQUE CONVERTER CLUTCH (TCC) SOLENOID & SWITCHES

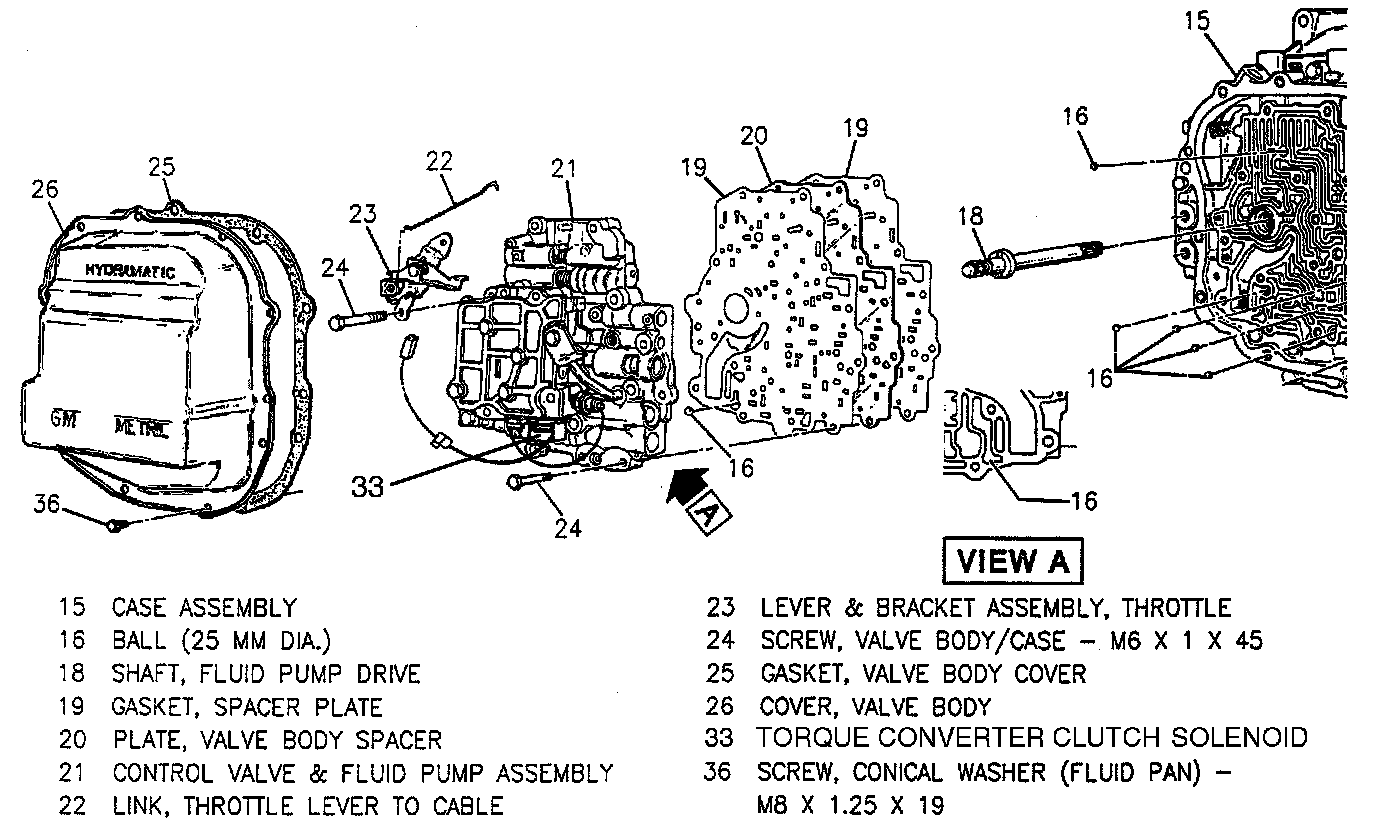

Auxiliary Valve Body, Valve Body And Oil Pump Assembly:

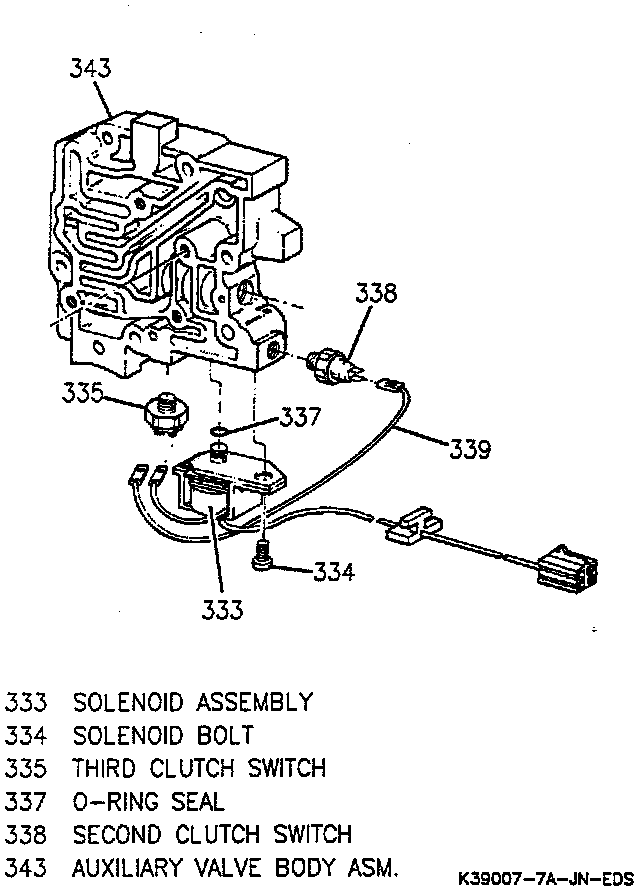

Torque Converter Clutch Solenoid & Switches:

REMOVE OR DISCONNECT
1. Valve body cover. Refer to "Valve Body Cover".
2. Wiring harness from case electrical connector and leads from 3rd clutch pressure switch (governor pressure switch if applicable).
3. Torque converter clutch bolt to auxiliary valve body.
4. 3rd clutch pressure switch.
5. Second clutch switch, if applicable.

INSTALL OR CONNECT
1. Second clutch switch, if applicable.
2. 3rd clutch pressure switch.
3. Torque converter clutch bolt to auxiliary valve body. Install new O-ring.
4. Wire harness to case and switches.
5. Valve body cover with a new gasket.

ADJUST
^ Fluid level.
