Console Shift Control

SHIFT CONTROL CABLE

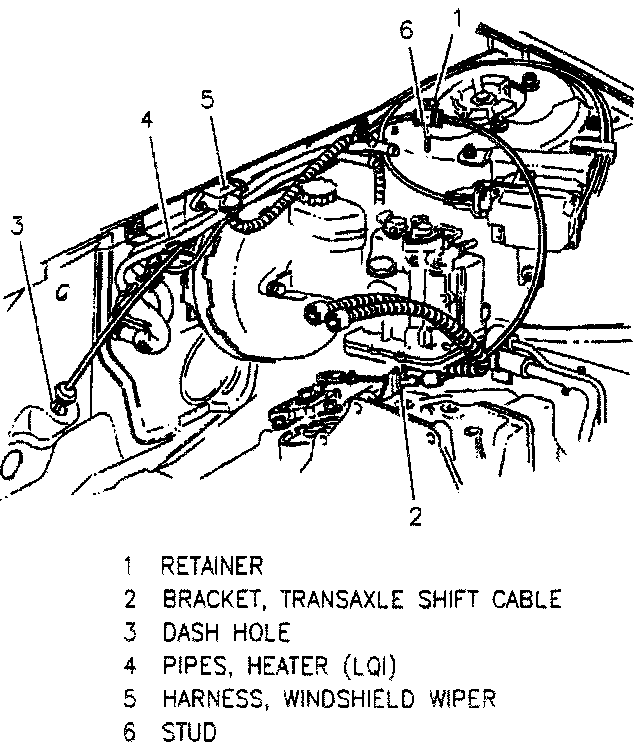

Transaxle Shift Control Cable - Console:

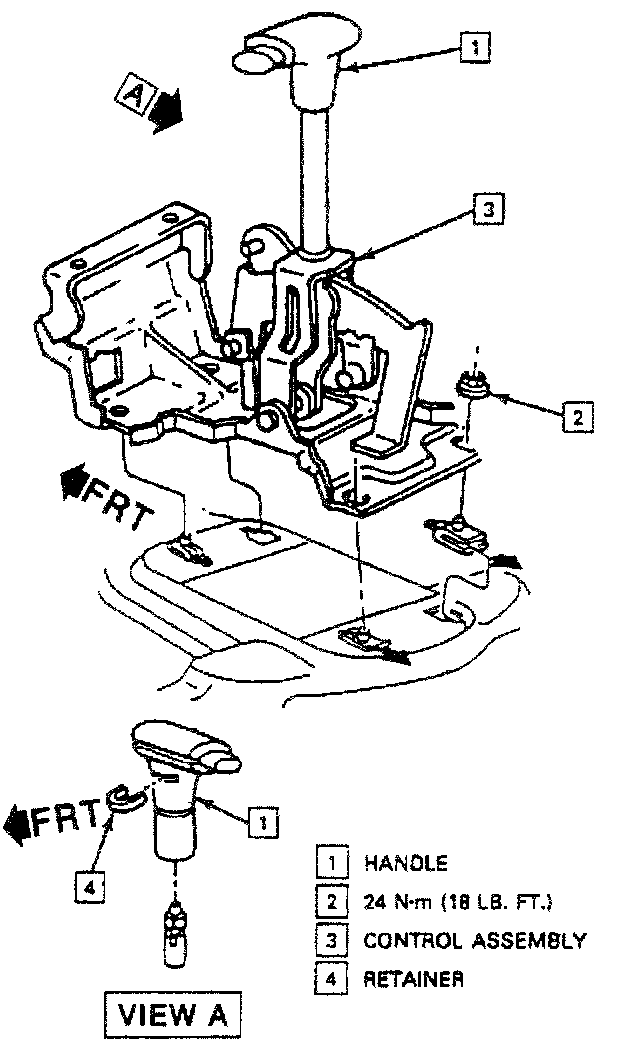

Console Shift Control:

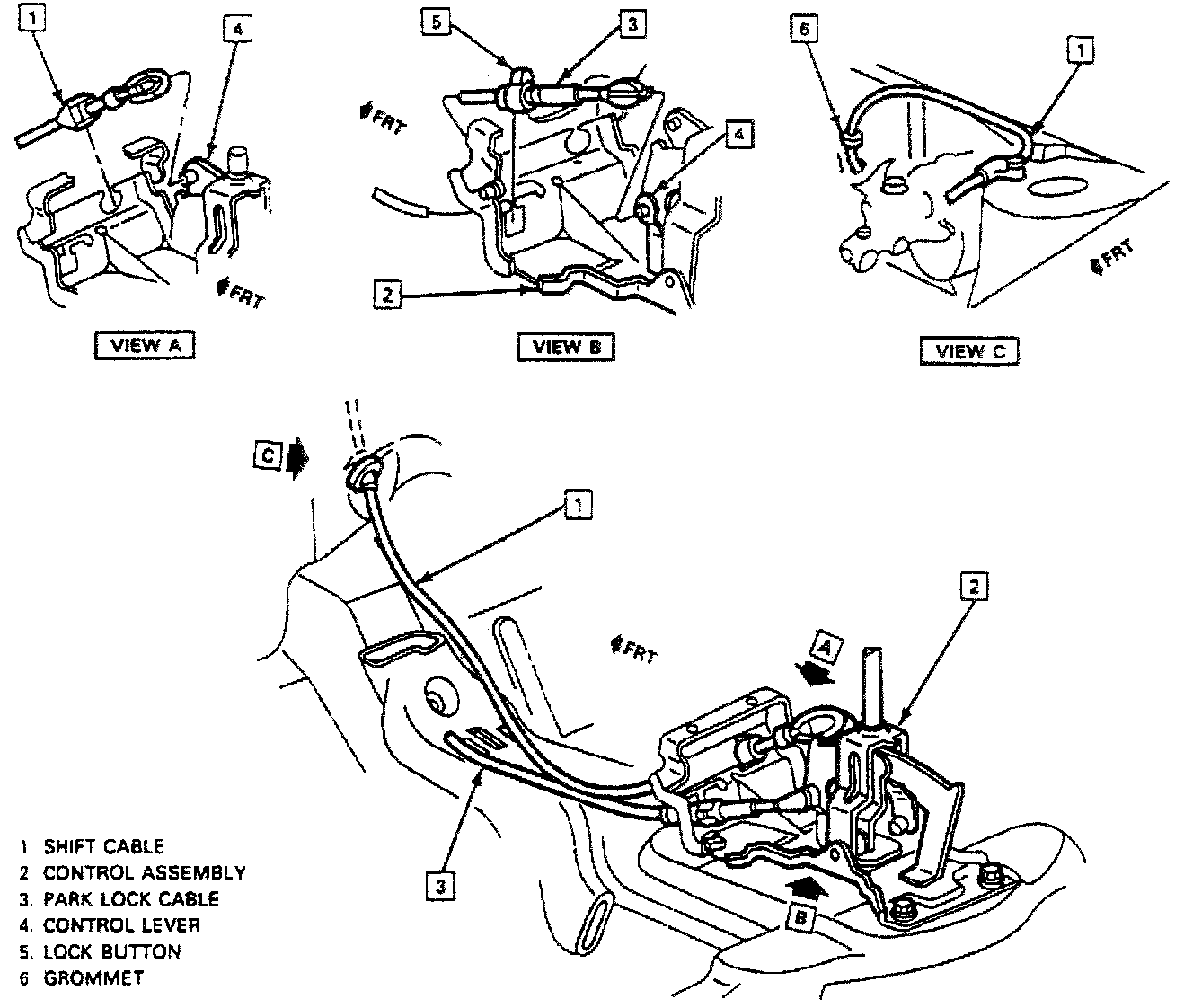

Console Shift Control Cables:

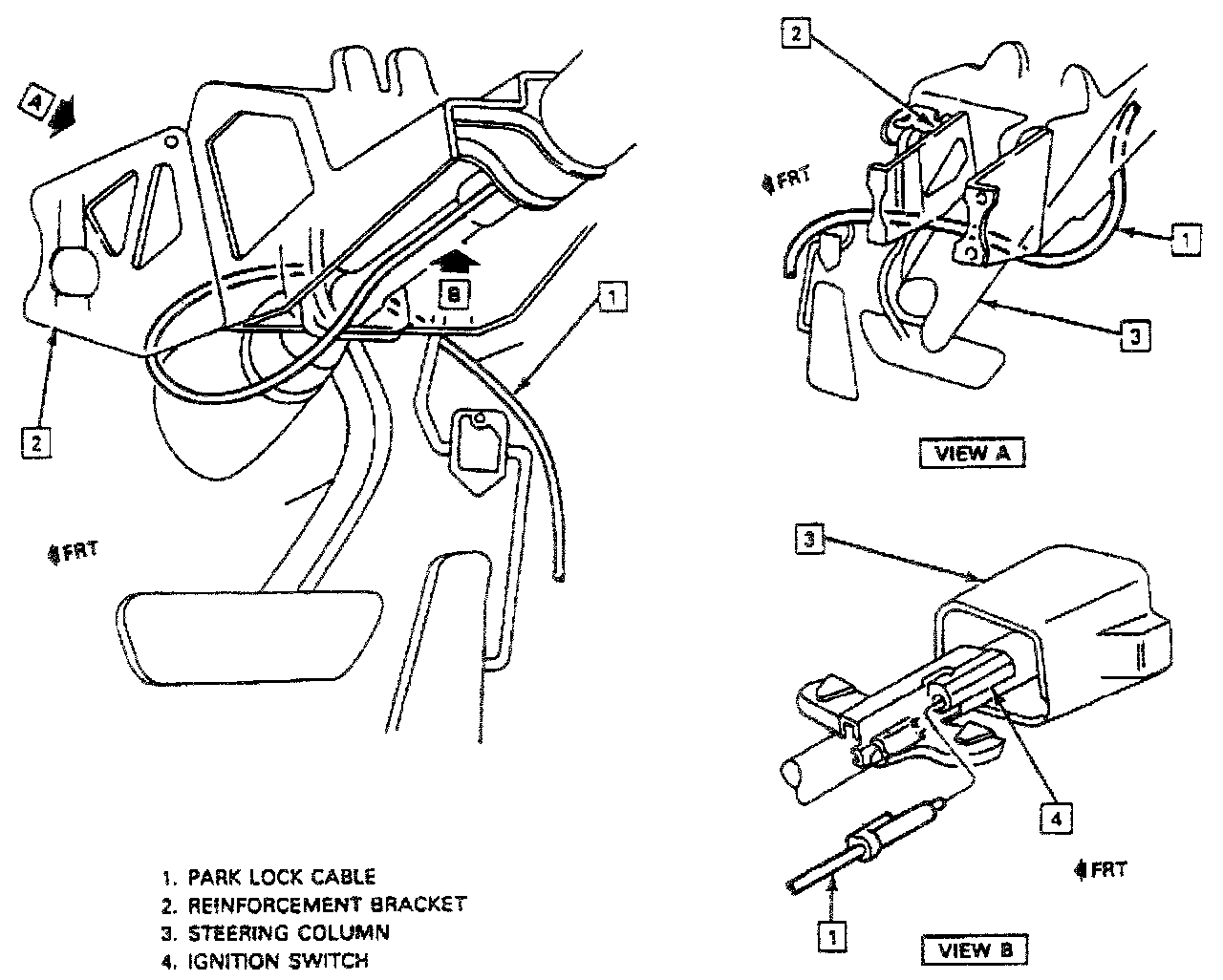

Park Lock Control Cable At Column:

REMOVE OR DISCONNECT
1. Air cleaner.
2. Cable from transaxle lever and bracket.
3. Shift handle.
4. Console trim, storage box, courtesy lamp and console.
5. Cable retaining clips and cable at console.
6. Right and left sound insulators and shroud side panels.
7. Pull carpet back to expose cable.
8. Cable through hole in cowl.

INSTALL OR CONNECT
1. Properly route and position cable.
2. Carpet into position, right and left sound insulators and shroud side panels.
3. Cable at console and retaining clips.
4. Console, courtesy lamp, storage box and console trim.
5. Shift handle.
6. Cable at transaxle lever and bracket.
7. Air cleaner.

ADJUST
^ Cable.
