Reverse Servo

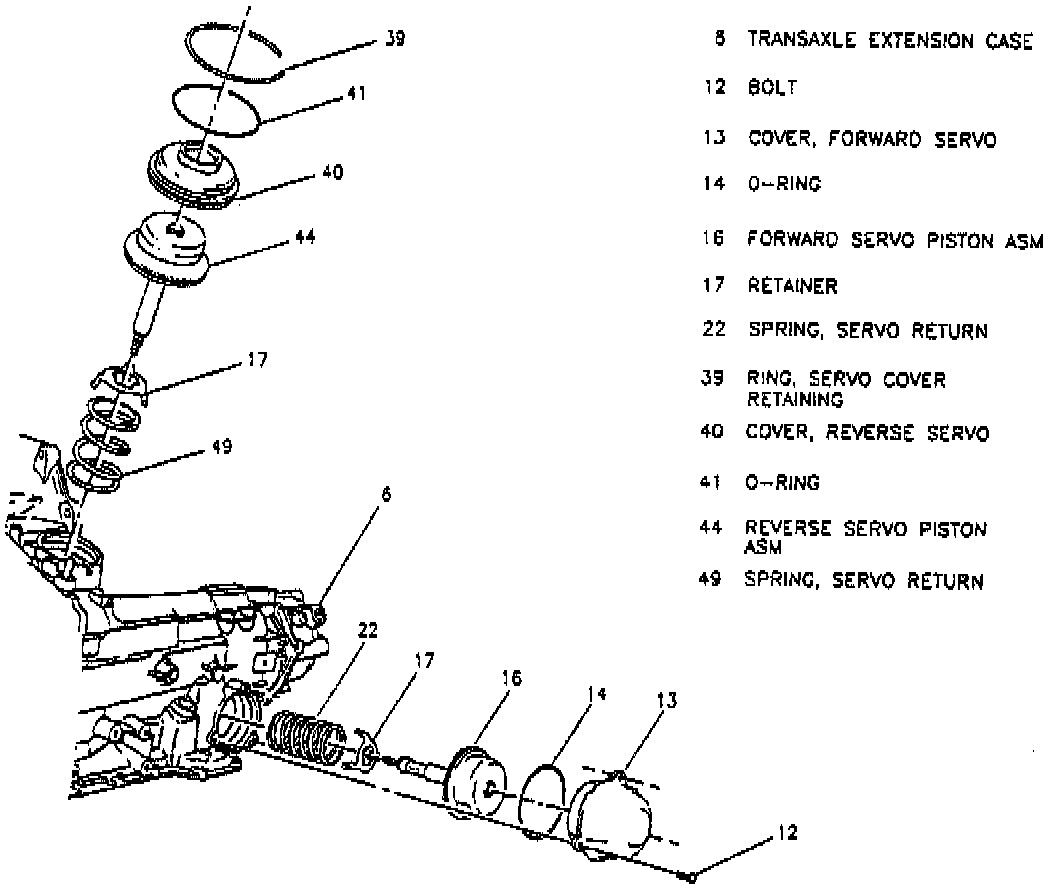

Fig.11 Forward And Reverse Servo.:

REPLACE
1. Remove air cleaner assembly and exhaust crossover pipe.
2. Raise driver's side of car so it is higher than differential side. This will ensure reverse band is in proper location.
3. Depress servo cover, then remove snap ring, servo cover, servo piston, sealing ring, apply pin and servo spring, Fig. 11 .
4. Reverse procedure to install.
