Ignition Coil: Service and Repair

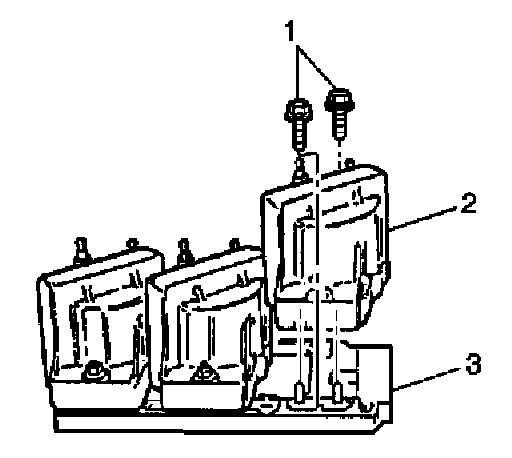

Numbers in text refer to image references.

REMOVE OR DISCONNECT
1. Disconnect the spark plug wires.
2. Remove 2 screws (1) securing the coil (2) to the ignition control module (3).
3. Remove the coil (2).

INSTALL OR CONNECT
1. Attach the coil assembly to the ignition control module.
2. Install two attaching screws.

Tighten
Screws to 4-5 Nm (40 lb in.).

3. Connect the spark plug wires.
