Positive Crankcase Ventilation Valve: Service and Repair

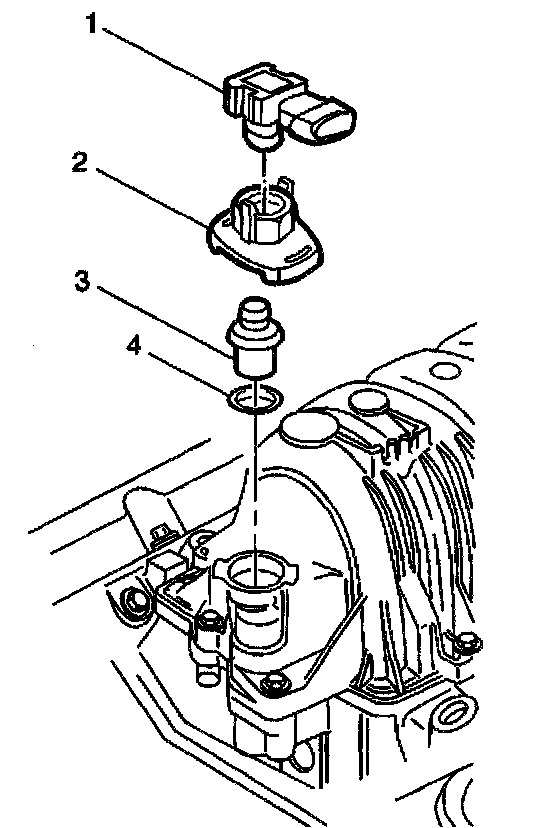

Numbers in the text refer to image references.

REMOVE OR DISCONNECT
1. Remove the injector sight shield from the fuel rail and intake. Refer to Engine Cover Replacement Service and Repair.
2. Remove the MAP sensor (1).
3. Use a 16mm socket to press the access cover (2) down and rotate 1/4 turn counterclockwise.
4. Remove the access cover.
5. Remove the PCV valve (3) and the O-ring (4) from the intake manifold.

INSTALL OR CONNECT
1. Install the crankcase ventilation valve; replace the O-ring it necessary.
2. Install the access cover.
3. Install the MAP sensor.
4. Install the sight shield. Refer to Engine Cover Replacement Service and Repair.
