EGR Valve: Service and Repair

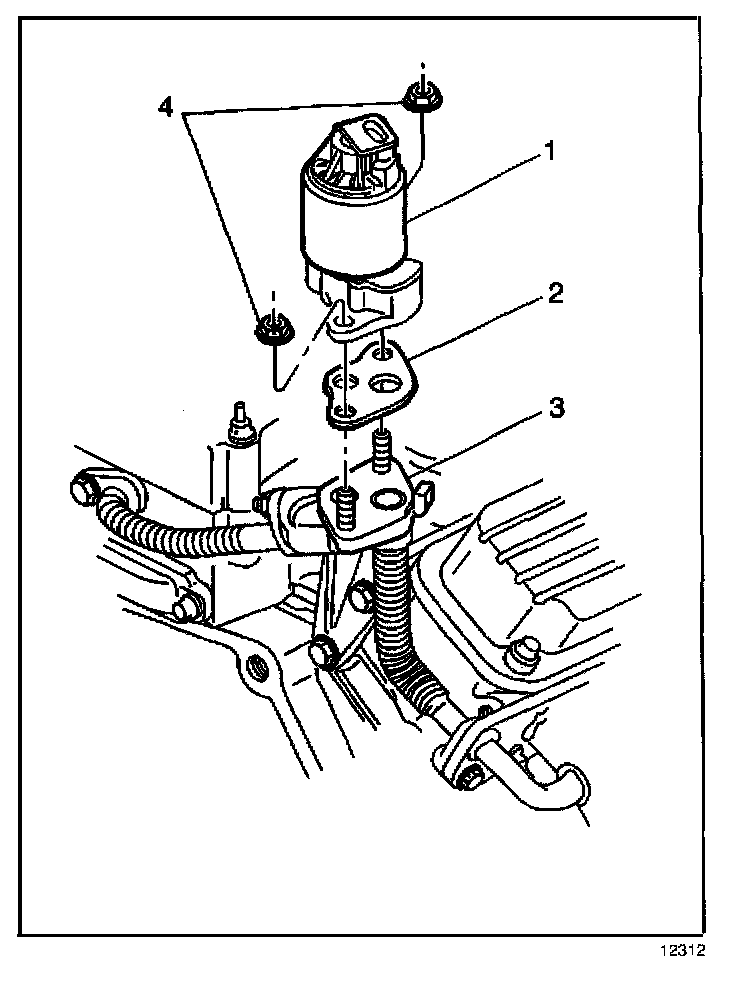

Numbers in text refer to image references.

REMOVE OR DISCONNECT
1. Disconnect the electrical connector from the EGR valve.
2. Remove the two EGR valve retaining nuts (4).
3. Remove the EGR valve (1).
4. Remove the gasket (2) from the EGR valve adapter (3).

INSTALL OR CONNECT
1. Install a new gasket on the EGR adapter.
2. Install the EGR valve and two nuts.

Tighten
Nuts to 30 Nm (22 lb. ft.).

3. Connect the EGR valve electrical connector.
