Canister Purge Solenoid: Service and Repair

REMOVE OR DISCONNECT

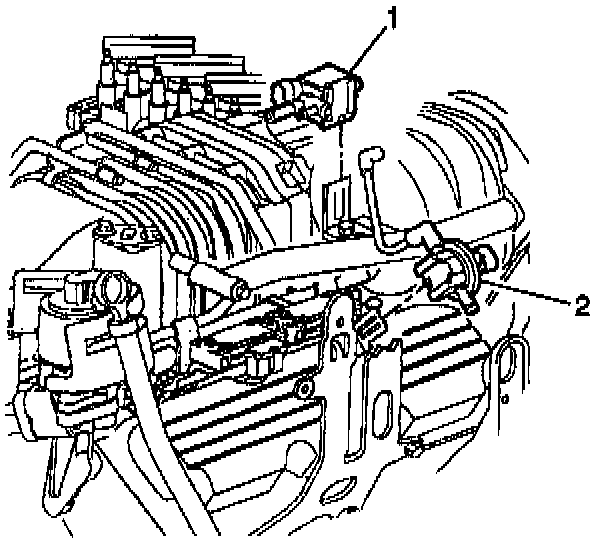

1. Disconnect the electrical connector and hoses from the EVAP purge solenoid (1).
2. Bend the tab on the solenoid mounting bracket to remove the EVAP purge solenoid (1).

INSTALL OR CONNECT
1. Bend the tab on the solenoid mounting bracket to install the solenoid (1).
2. Install the Solenoid.
3. Connect the hoses and the electrical connector to the solenoid.
