Air Temperature Sensor ( Ambient / Intake ): Service and Repair

IAT Sensor Service:

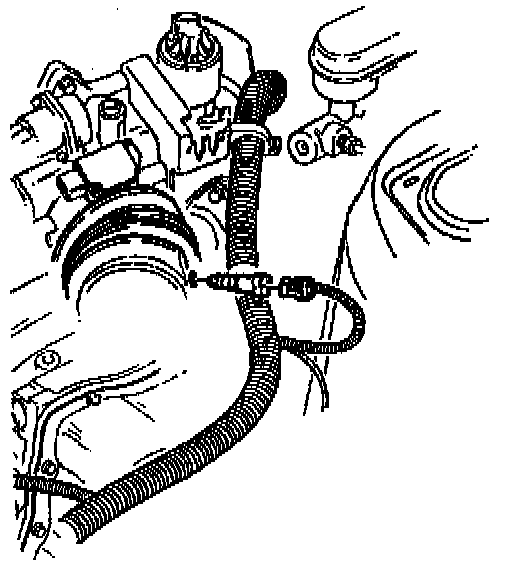

The IAT sensor is mounted in the rear air intake duct.

REMOVAL PROCEDURE
1. Disconnect the IAT sensor electrical connector
2. Grasp and remove the IAT sensor with a twisting and pulling motion

INSTALLATION PROCEDURE
1. Position and insert the AT sensor into the rear air intake duct.
2. Connect the electrical connector.
