Rocker Arm Assembly: Service and Repair

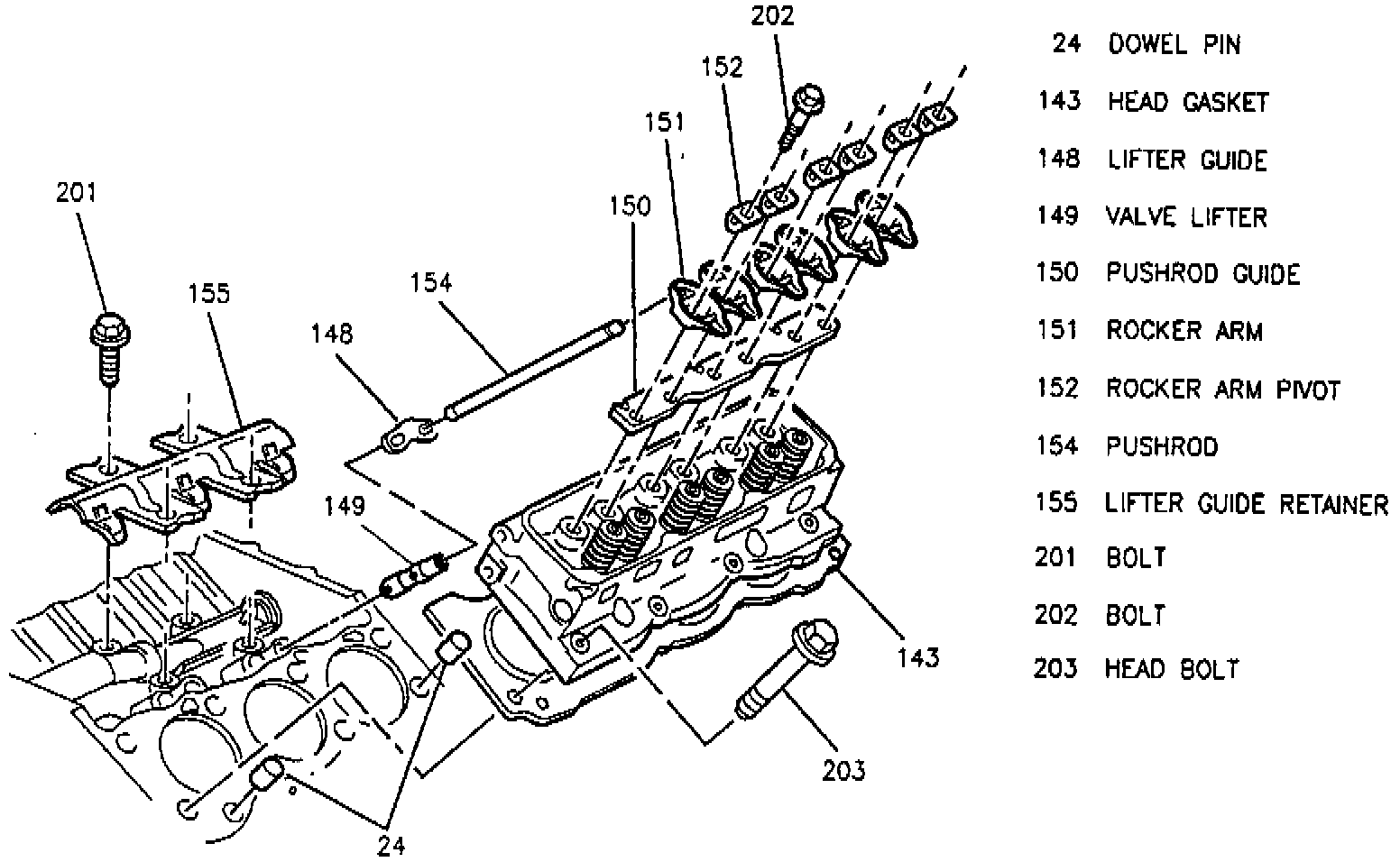

Fig. 6 Rocker Arm Assembly:

Rocker arms are pedestal mounted, over support plates, Fig. 6.
To replace rocker arms, remove valve cover, pedestal retaining bolt(s), pedestal and the rocker arm. Replace rocker arms and pedestals as an assembly if they are damaged or excessively worn. If rocker arms are to be reused, they must be installed in original position.
