Piston: Service and Repair

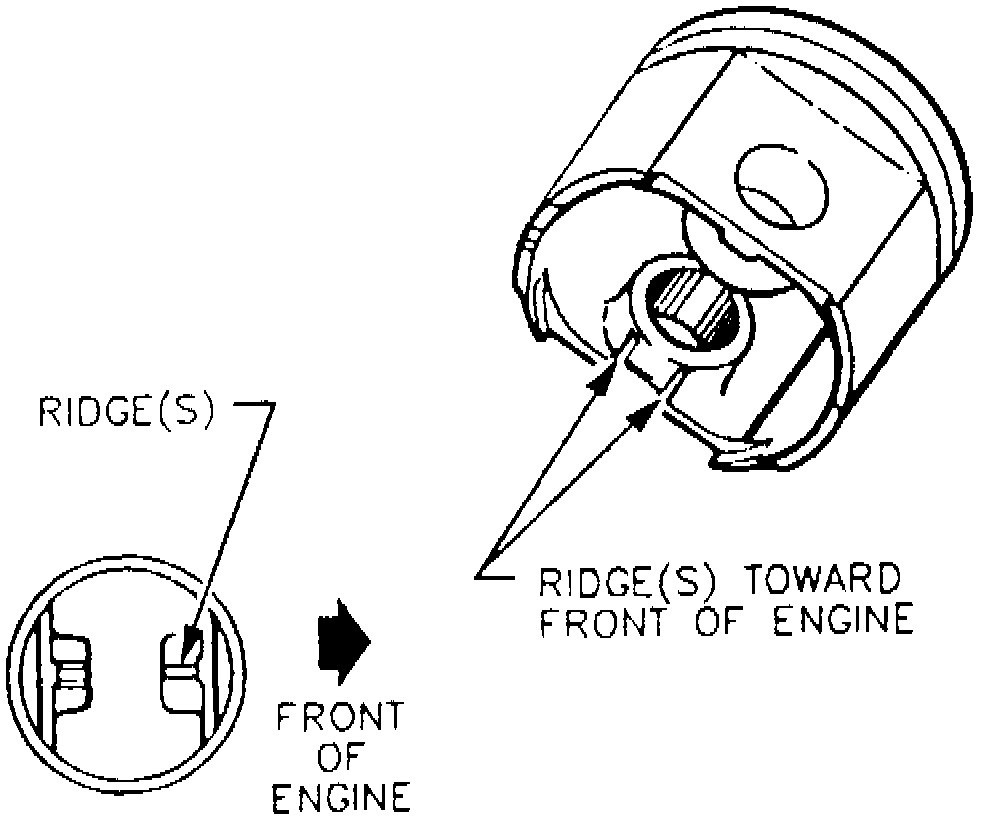

Fig. 15 Piston Installation Direction:

Pistons should be assembled to rods and installed as shown in Fig. 15.
After piston and rod installation, measure connecting rod side clearance. Side clearance should be .003-.015 inch.
