Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolt

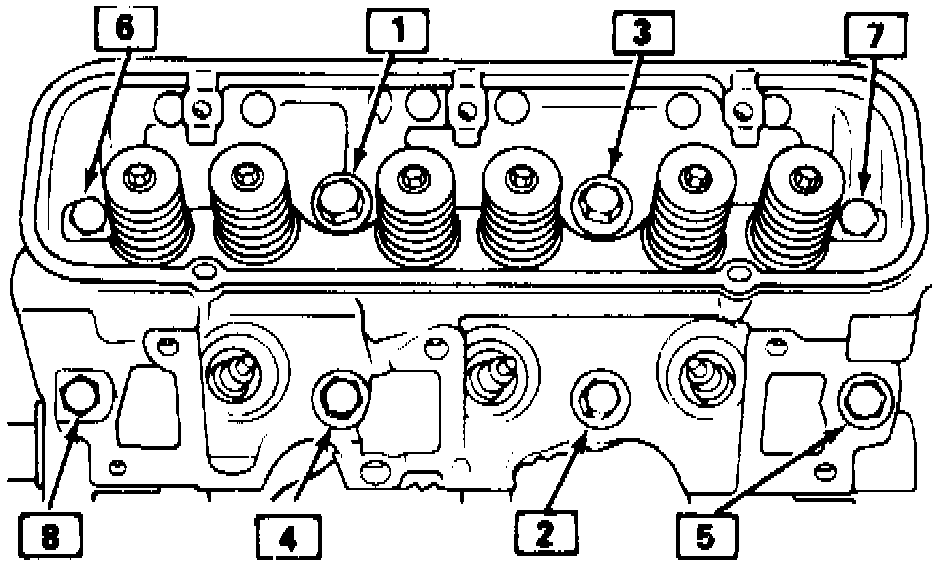

Fig. 5 Cylinder Head Tightening Sequence:

In the sequence shown (refer to figure 5):

^ Torque all bolts to 35 ft. lbs.
^ Tighten each bolt an additional 130°
^ Tighten center four bolts an additional 30°
