Vacuum and Vapor Hose Diagrams

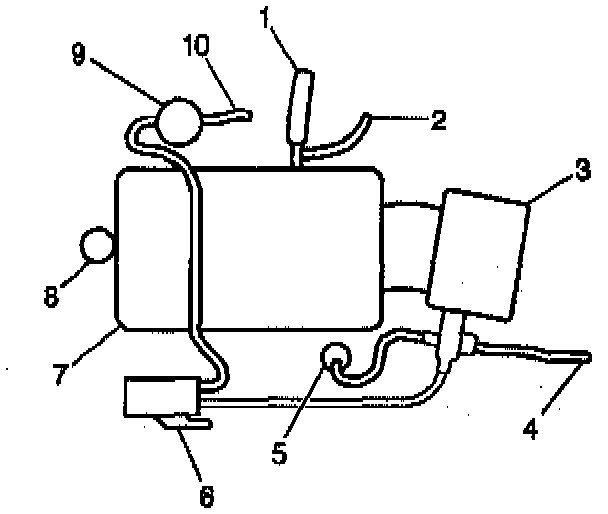

Emission Hose Routing Diagram:

LEGEND
(1) To Vacuum Brake Booster
(2) To Accessory
(3) Throttle Body
(4) To Transaxle
(5) Fuel Pressure Regulator
(6) EVAP Canister Purge Valve
(7) Intake Manifold
(8) PCV Valve
(9) EVAP Vacuum Switch
(10) To EVAP Canister (AT Rear of Vehicle)
