External Leak Check, Power Steering

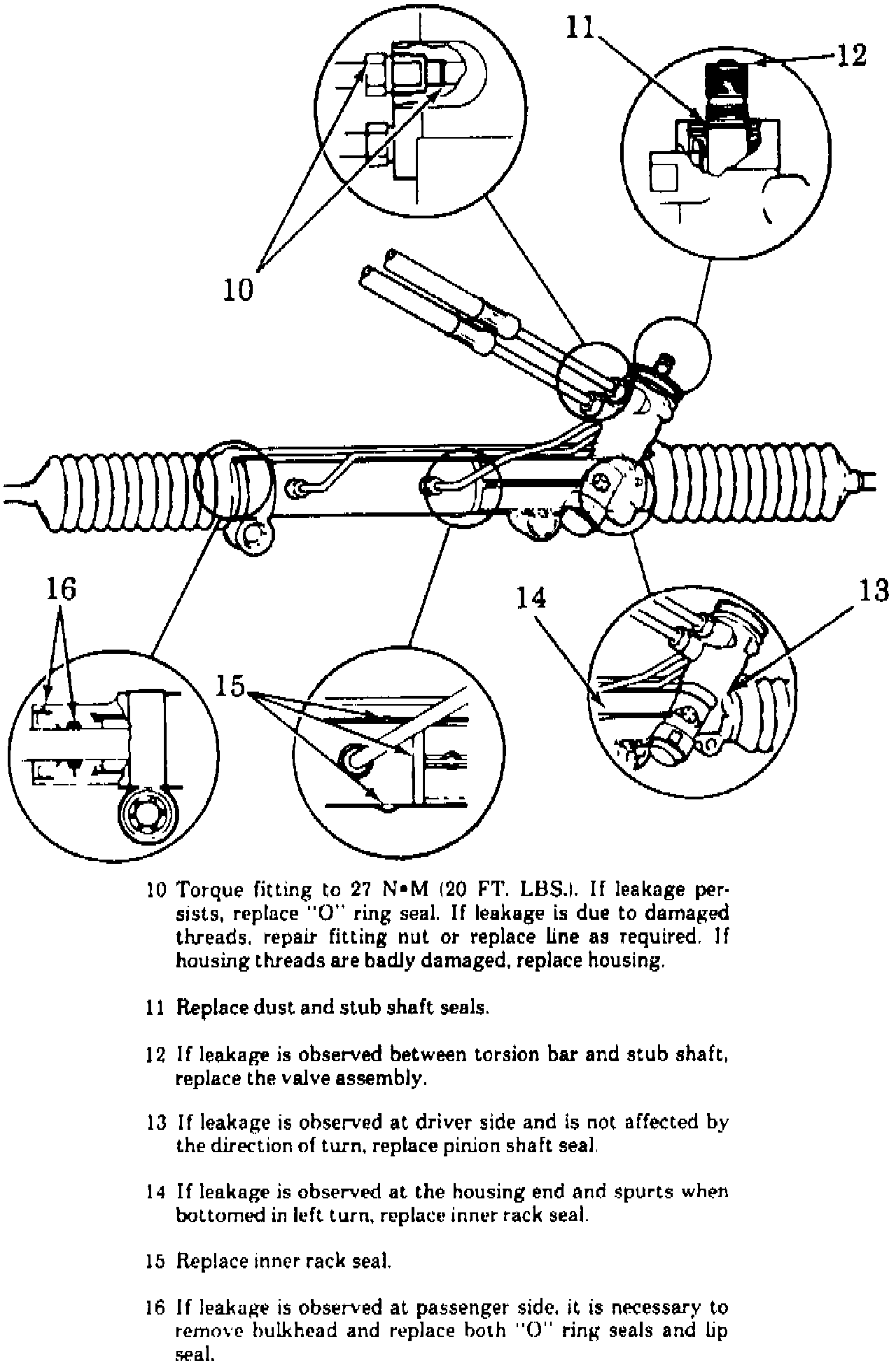

Fig. 1 Power Rack & Pinion Steering Gear Leak Diagnosis:

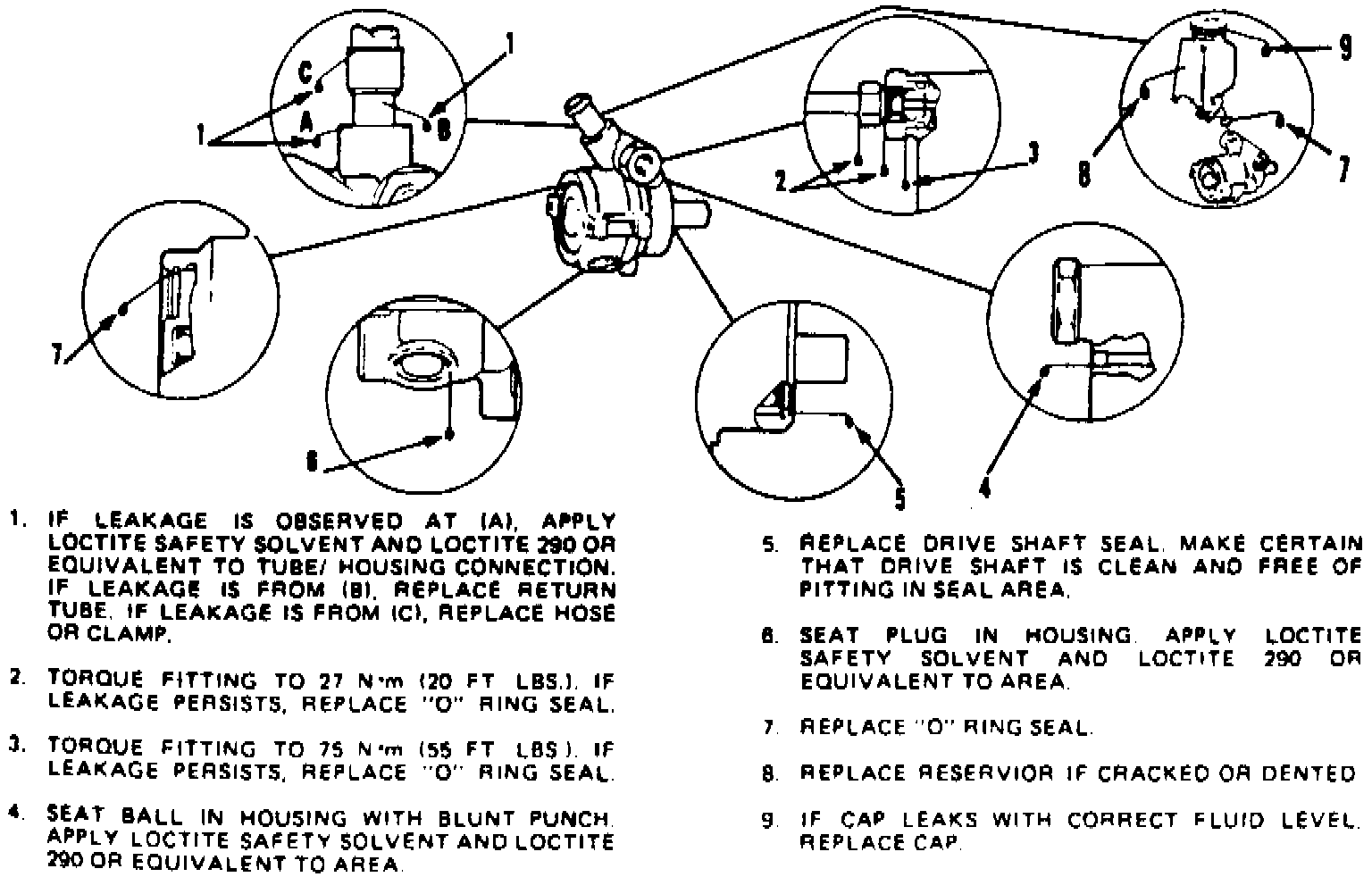

Fig. 3 Power Steering Pump Leak Diagnosis:

1. With engine off, wipe dry the entire power steering system.
2. Ensure fluid level is correct.
3. Start engine, then turn steering wheel from stop to stop a few times. Do not hold at stop for a long period.
4. Find exact area of leak and repair as necessary, Figs. 1 and 3.
