System Diagnosis - Thermal Expansion Valve (TXV)

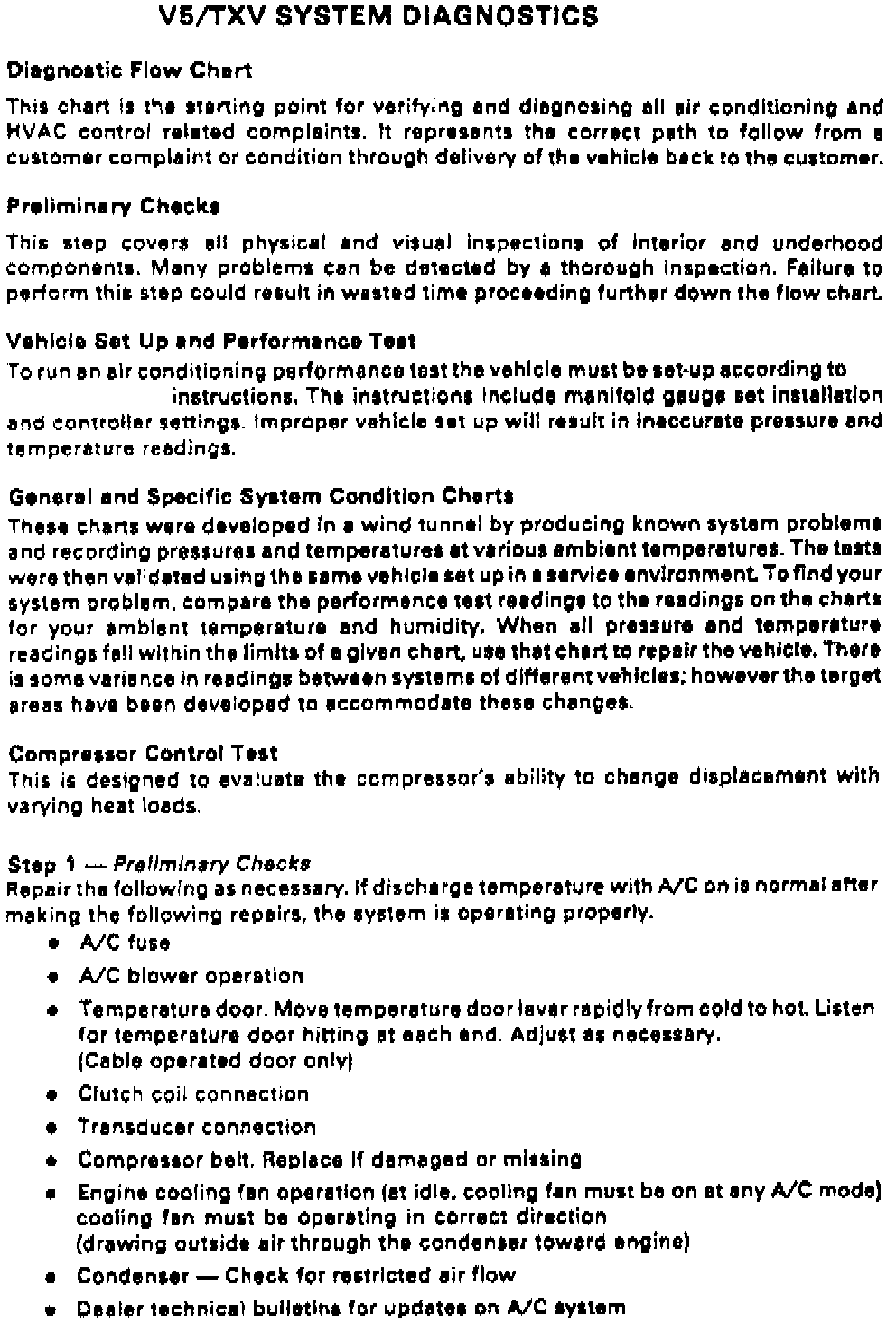

Fig. 10 Test 1: Thermal Expansion Valve System.:

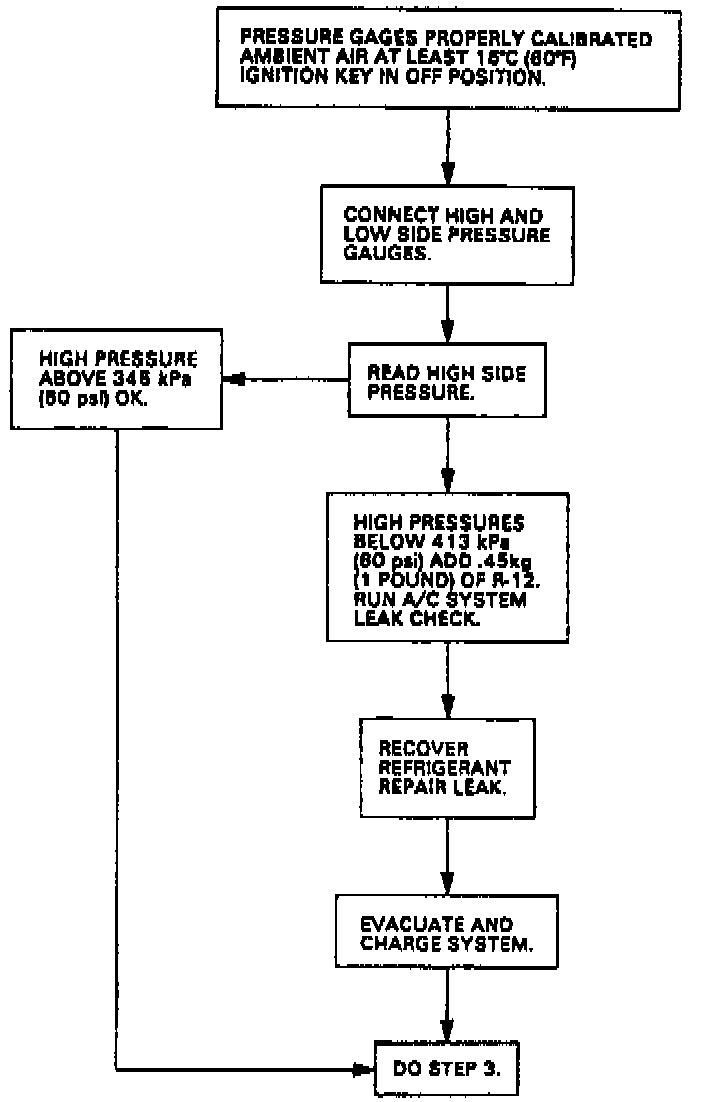

Fig. 11 Test 2: Thermal Expansion Valve System.:

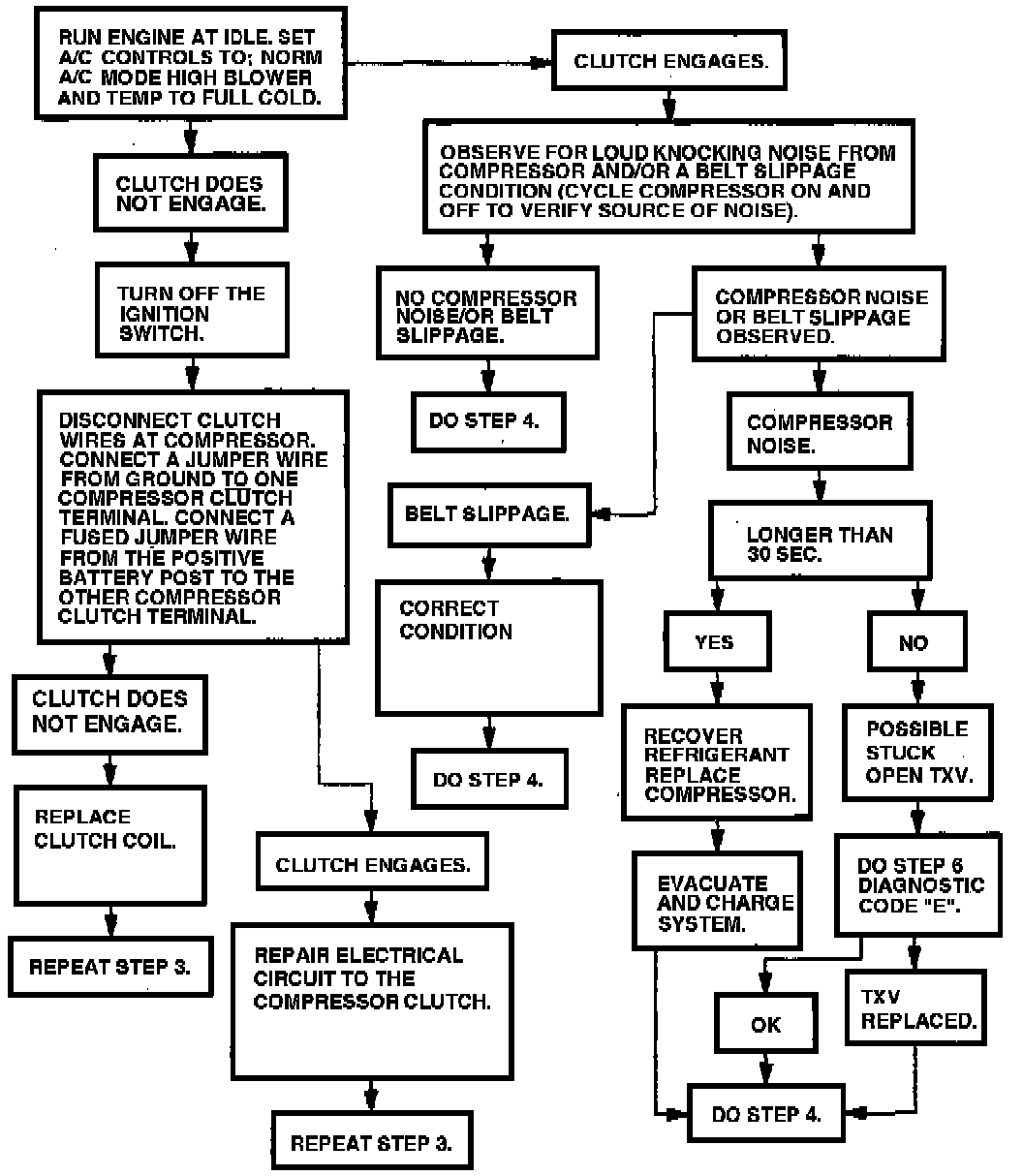

Fig. 12 Test 3. Thermal Expansion Valve System.:

Refer to Fig. 10 through 17 , for symptom troubleshooting charts.

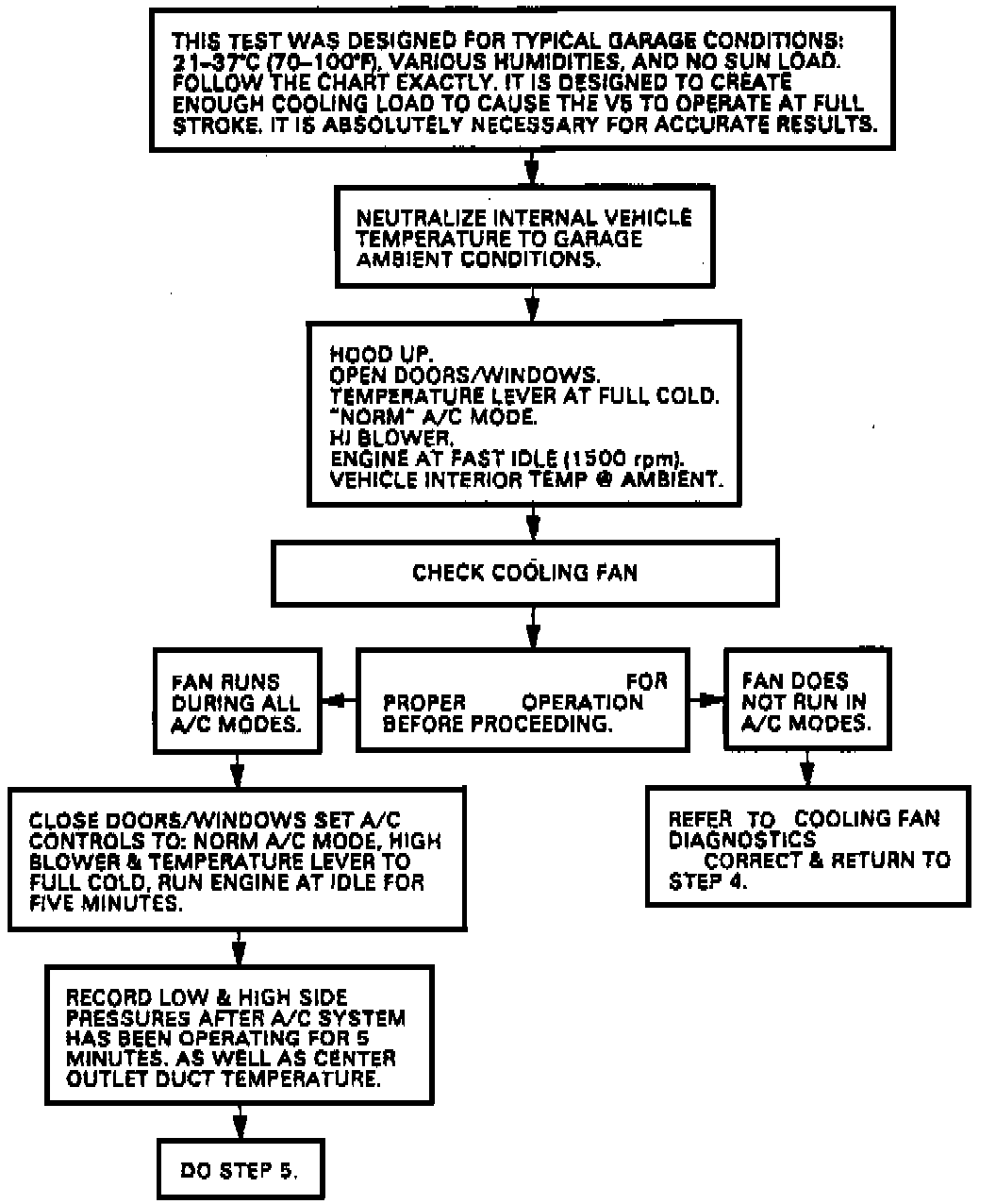

Fig. 13 Test 4: Thermal Expansion Valve System.:

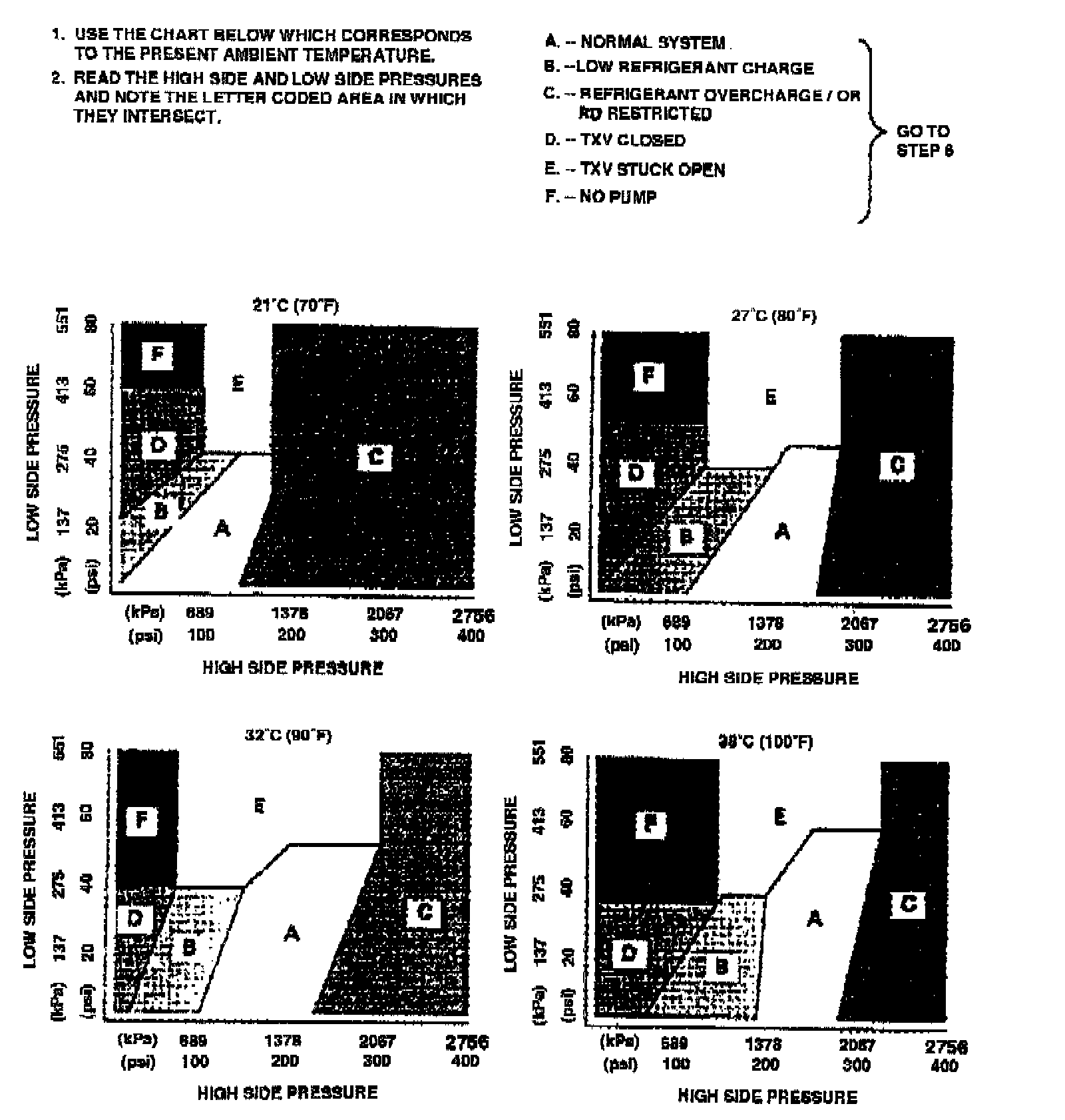

Fig. 14 Test 5. Thermal Expansion Valve System.:

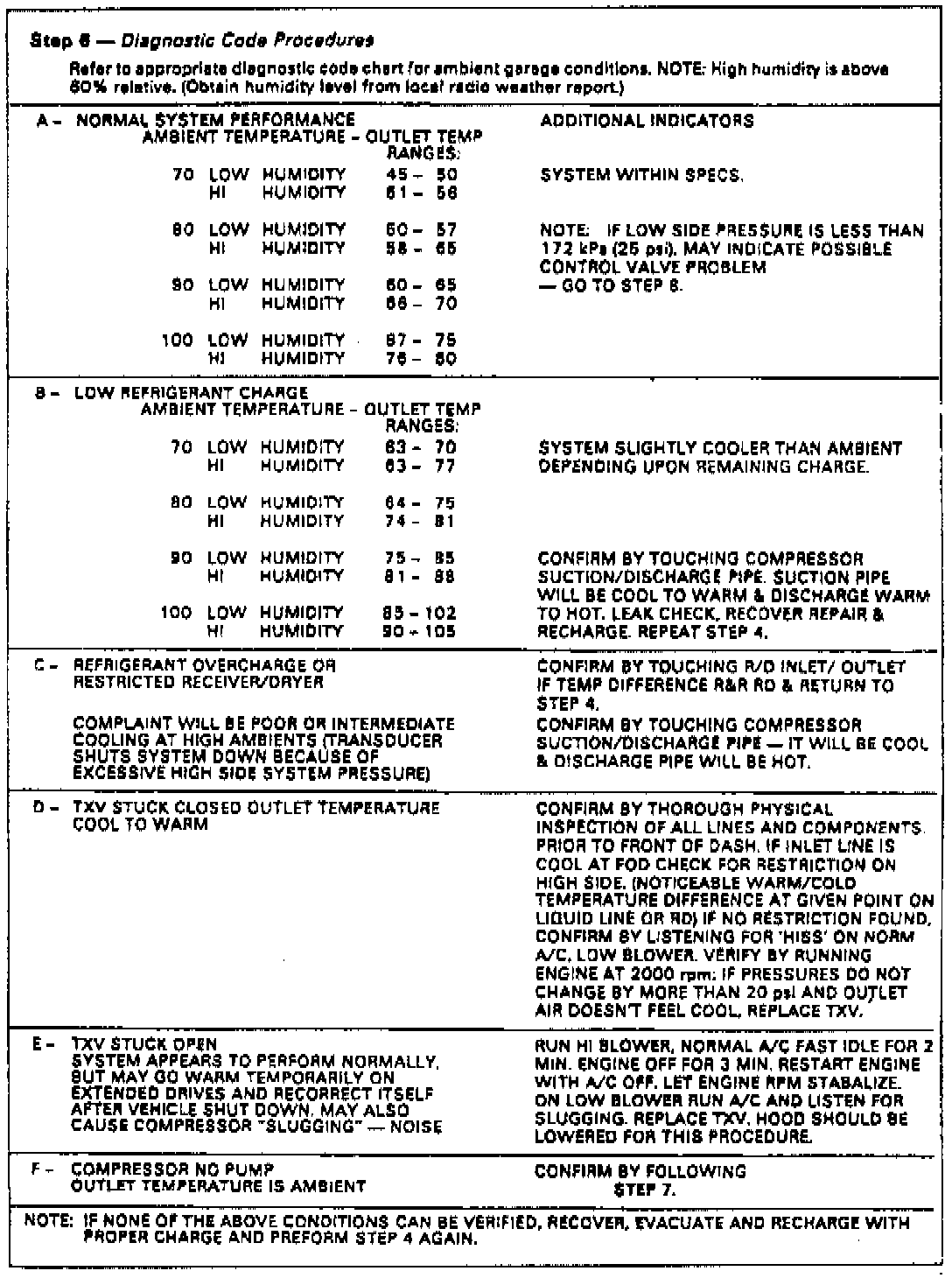

Fig. 15 Test 6: Thermal Expansion Valve System.:

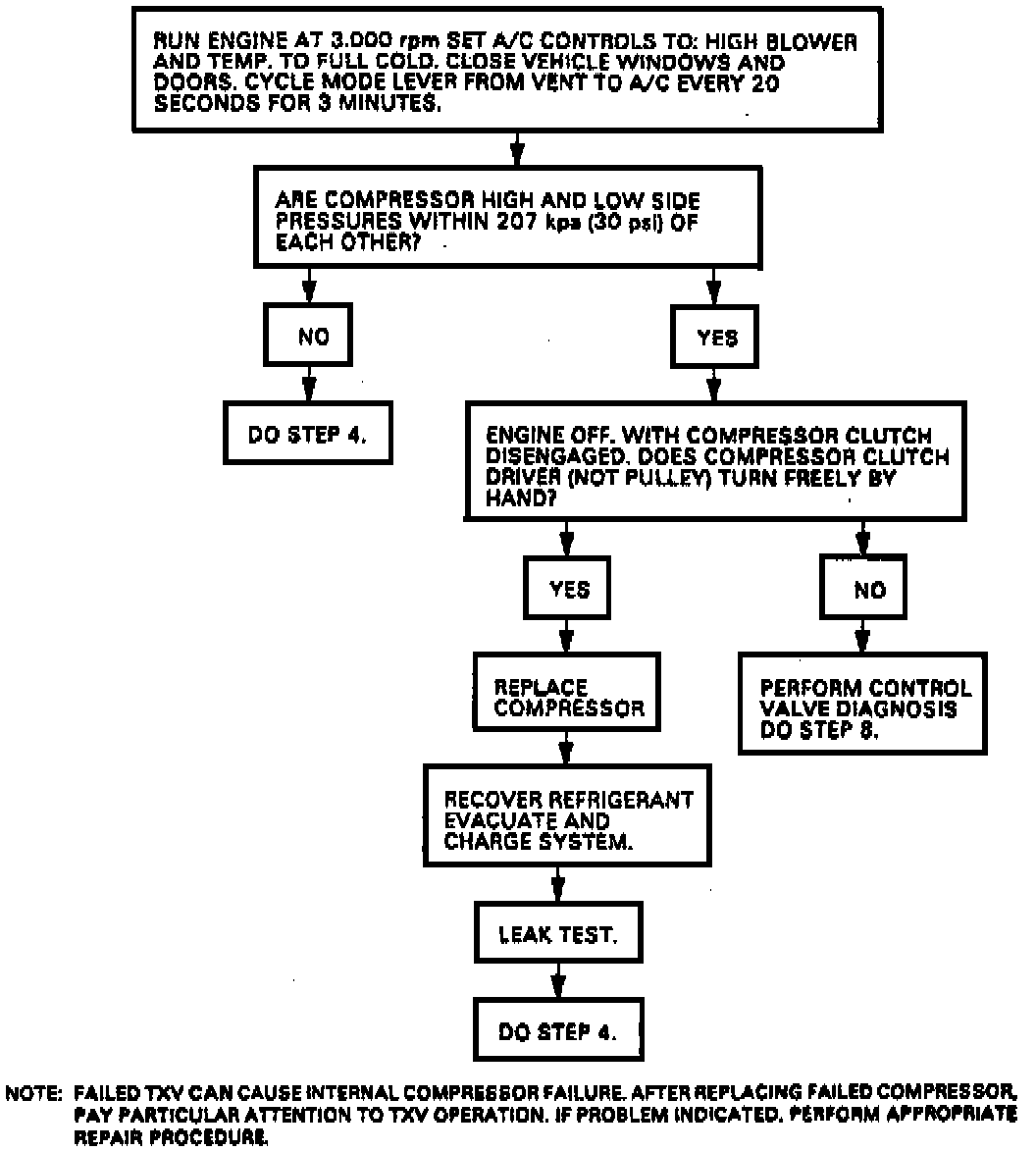

Fig. 16 Test 7: Thermal Expansion Valve System.:

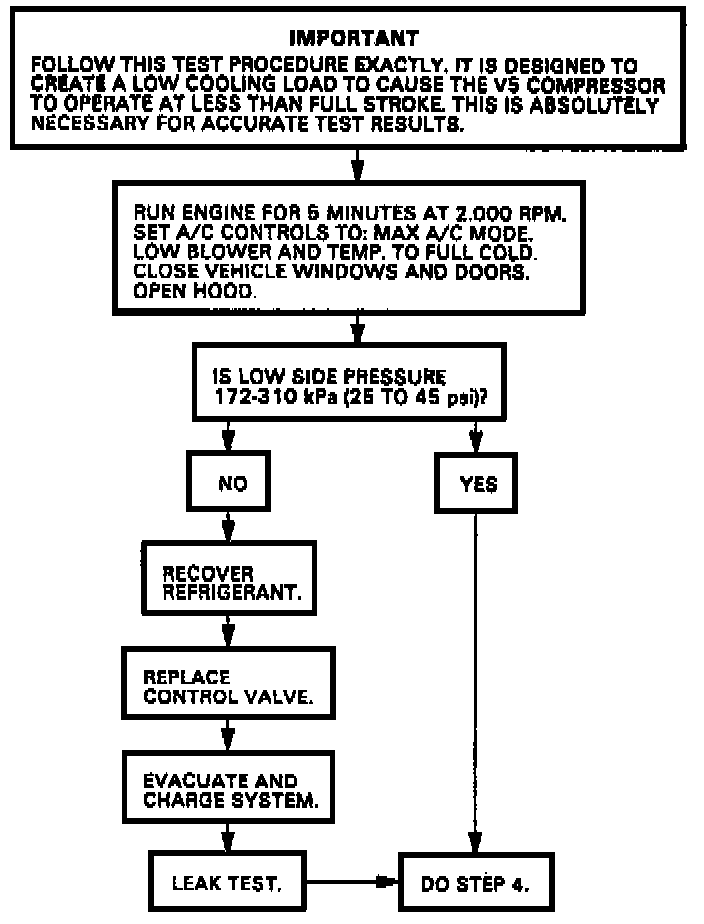

Fig. 17 Test 8: Thermal Expansion Valve System.:
