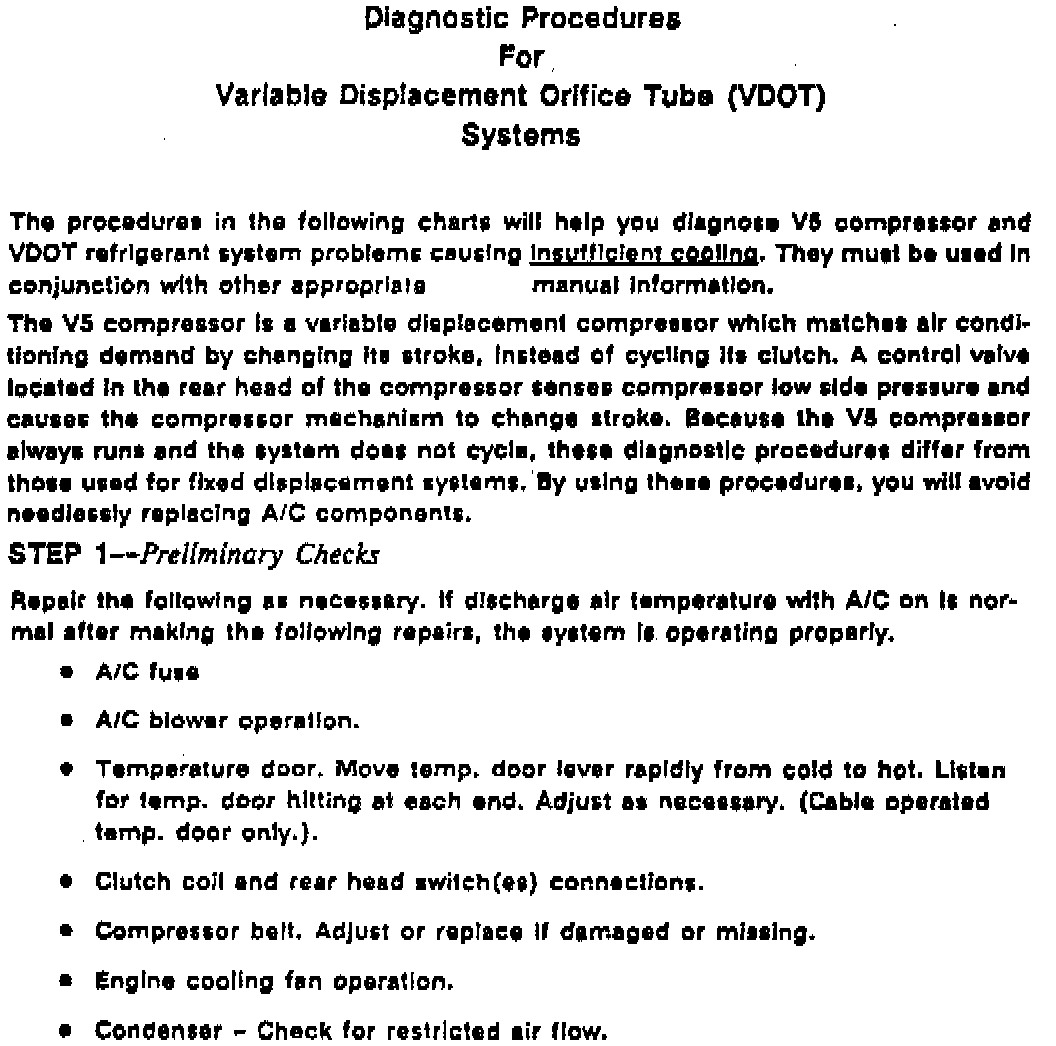

System Diagnosis - Variable Displacement Orifice Tube (VDOT)
Fig. 3 Test 1: Variable Displacement Orifice Tube System.:

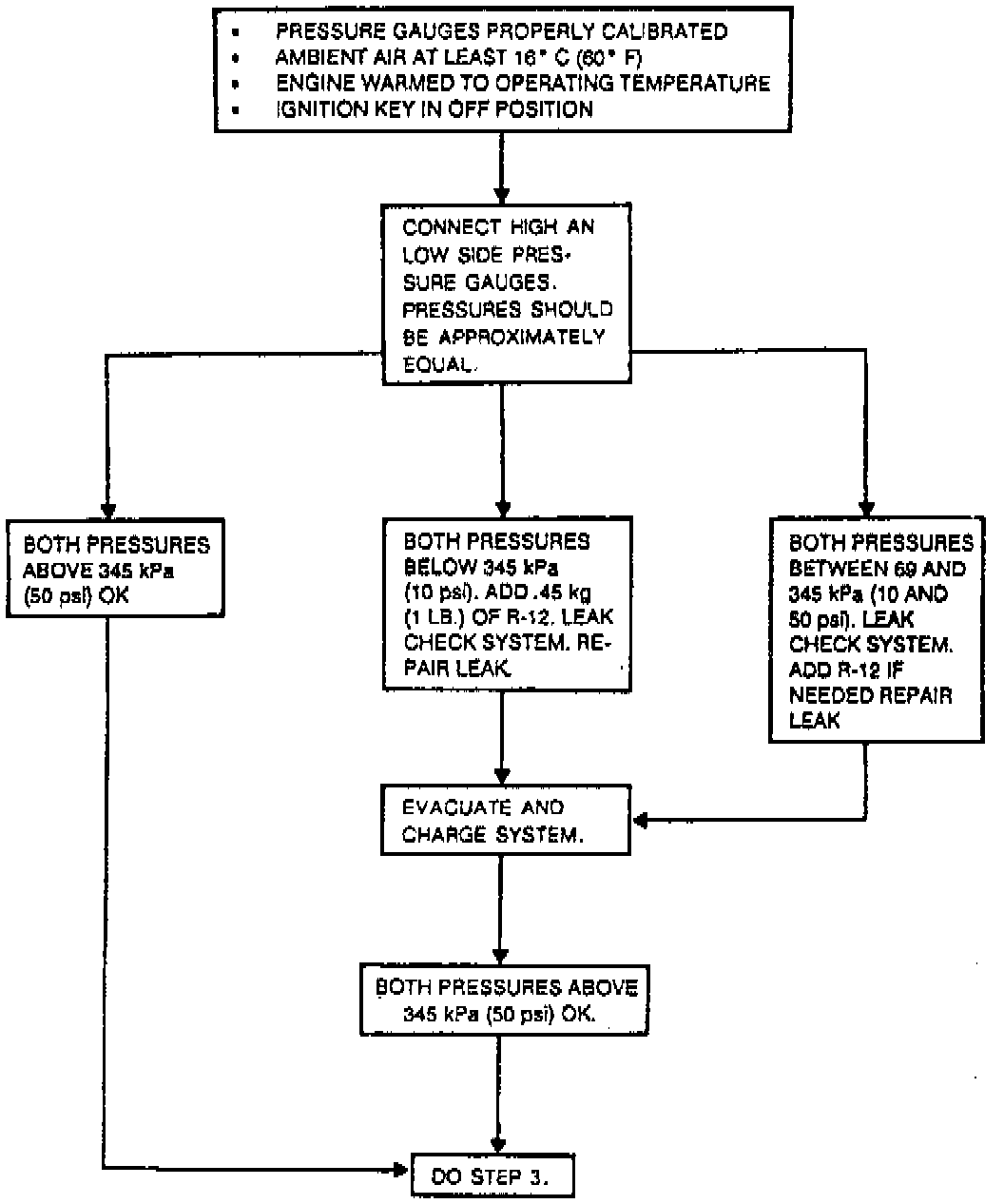

Fig. 4 Test 2: Variable Displacement Orifice Tube System.:

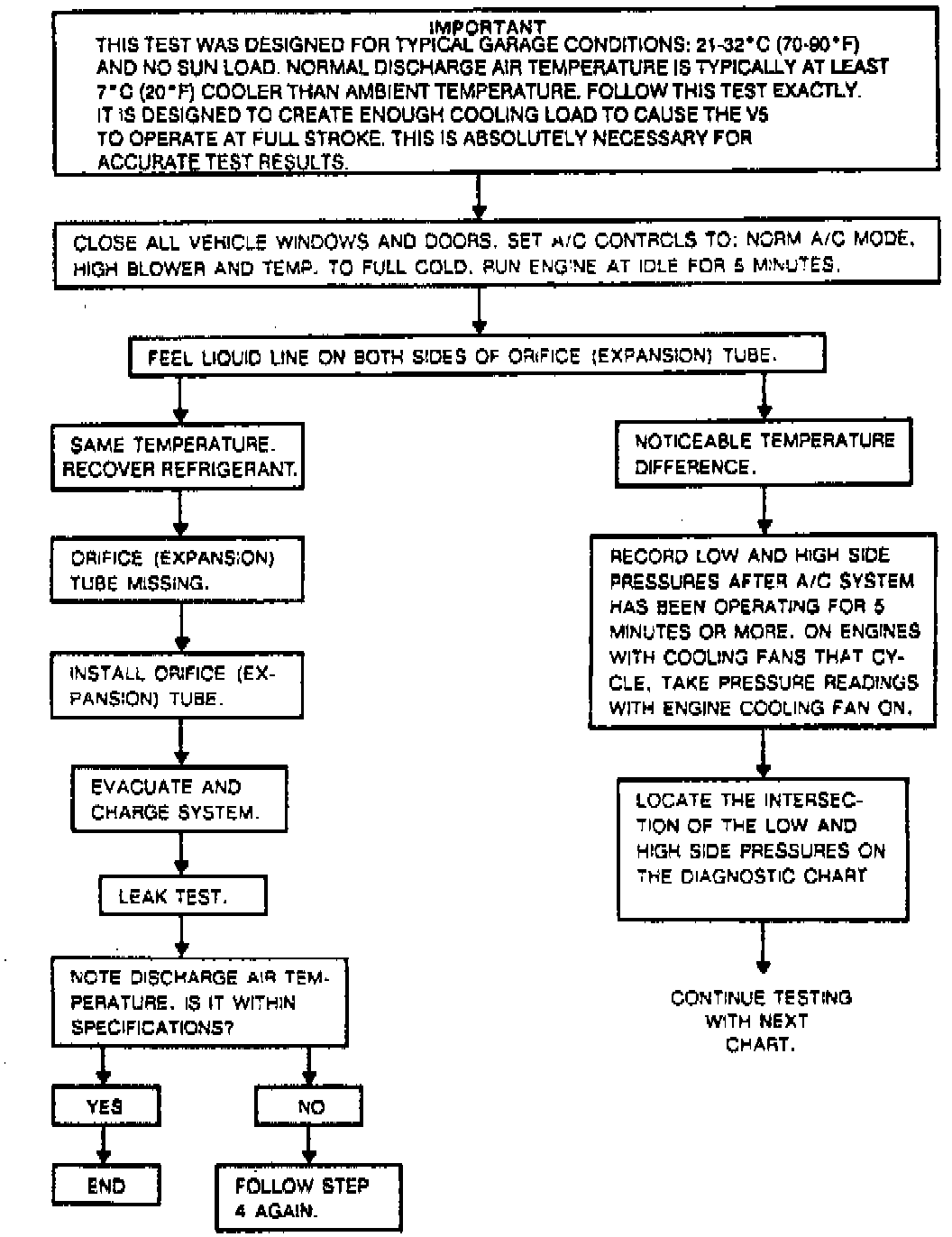

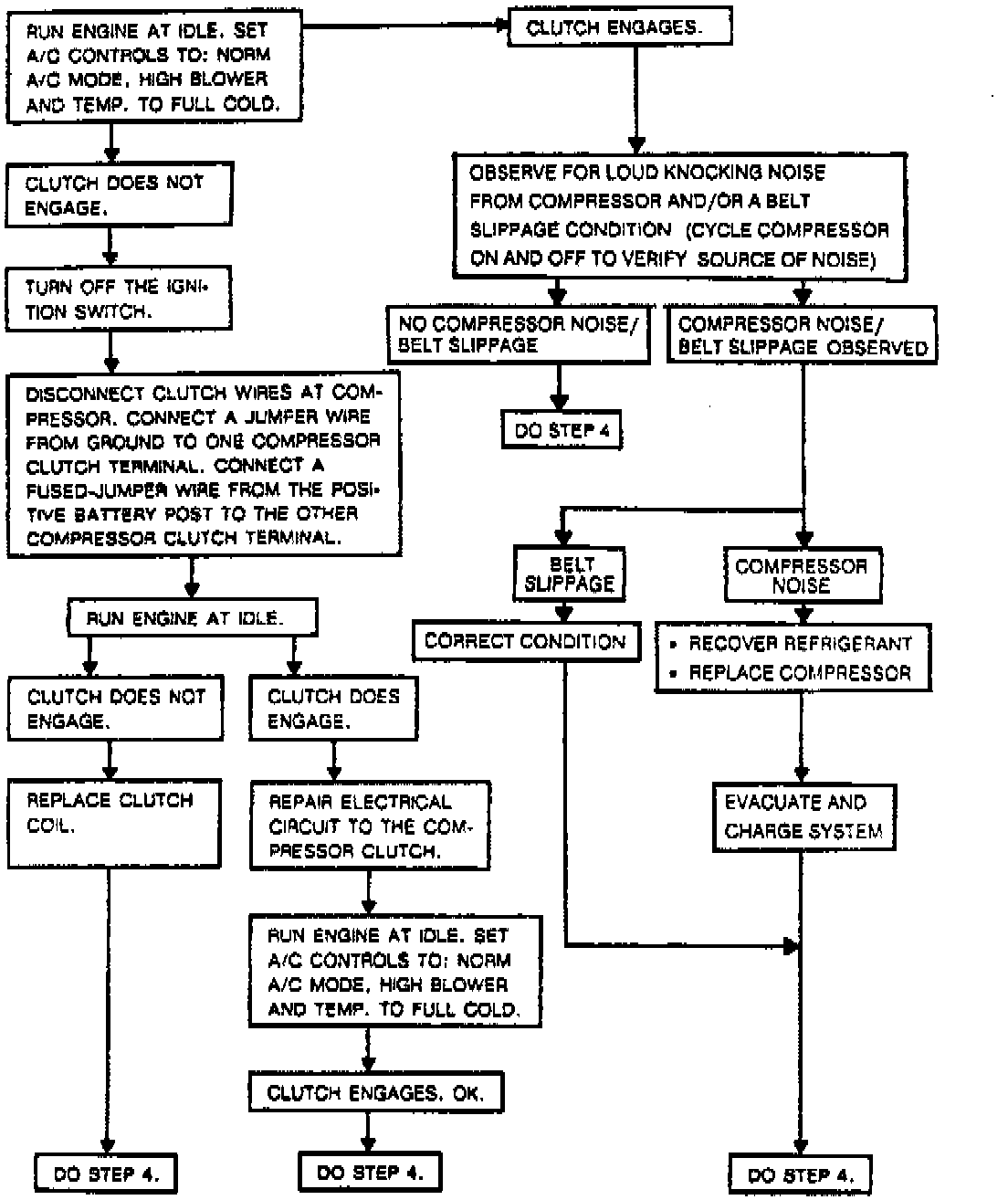

Fig. 5 Test 3: Variable Displacement Orifice Tube System.:
Refer to Fig. 3 through 9 , for symptom troubleshooting charts.

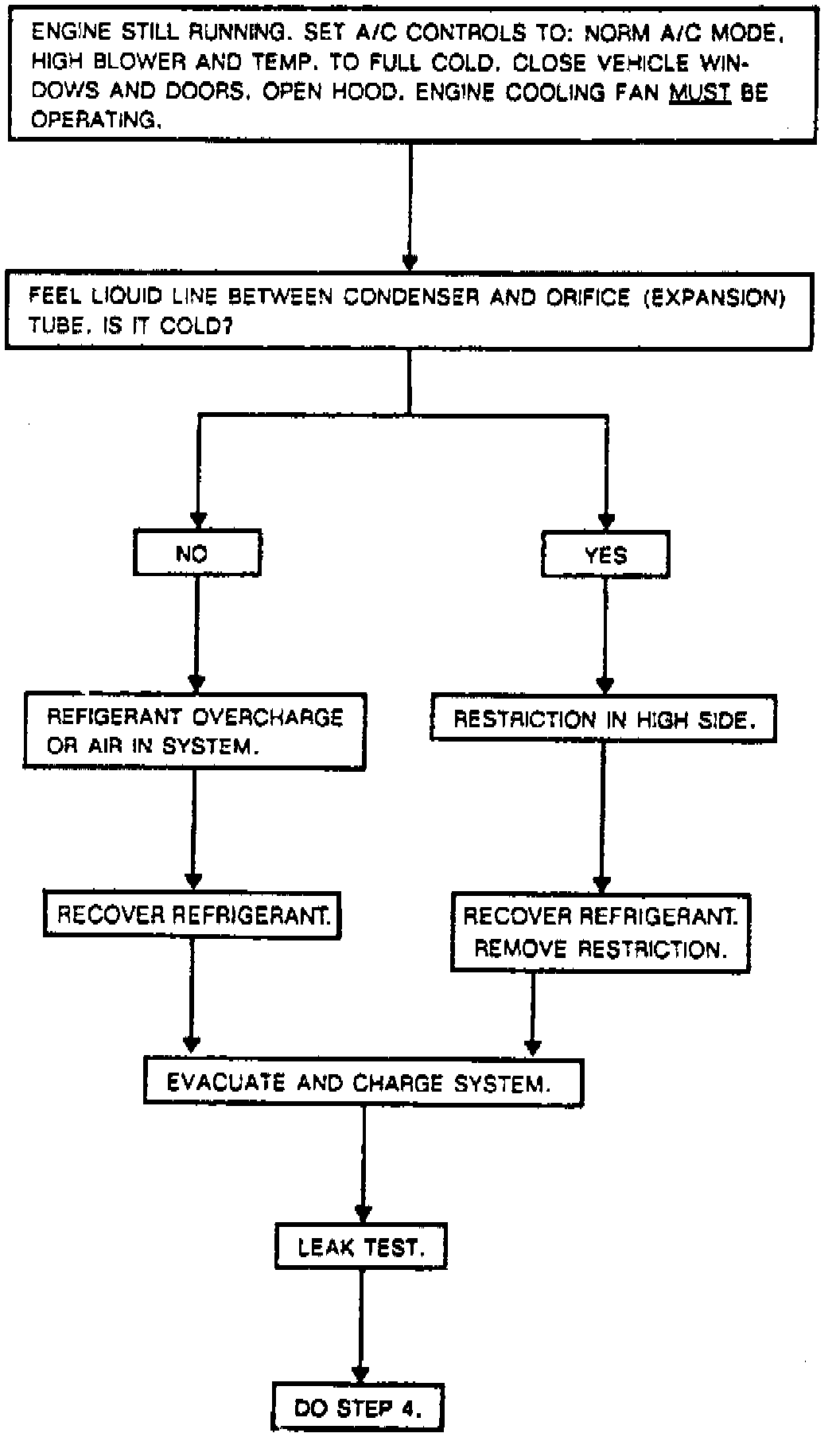

Fig. 6 Test 4: Variable Displacement Orifice Tube System (Part 1 Of 2).:
Fig. 6 Test 4: Variable Displacement Orifice Tube System (Part 2 Of 2).:
Fig. 7 Test 5: Variable Displacement Orifice Tube System.:

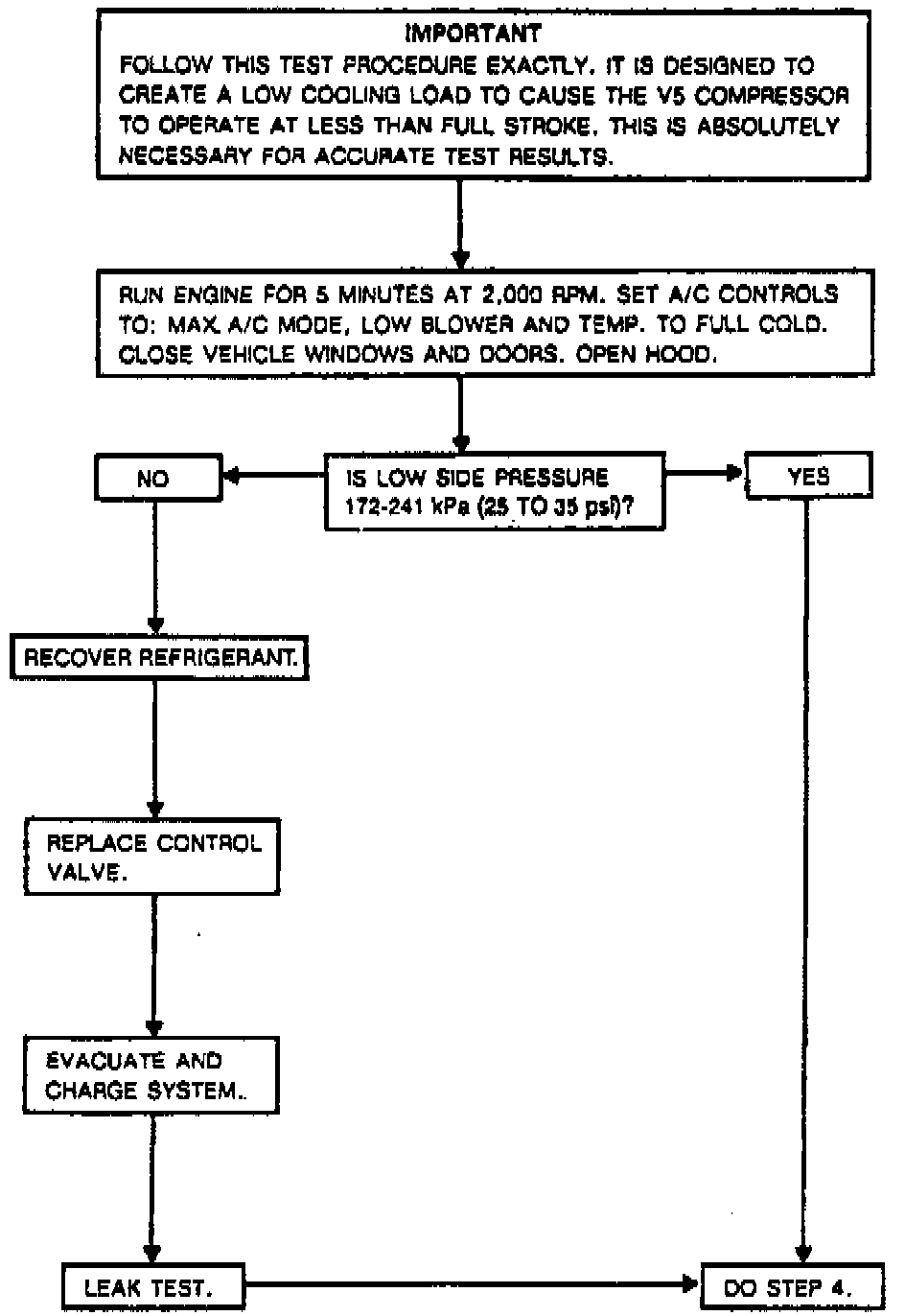

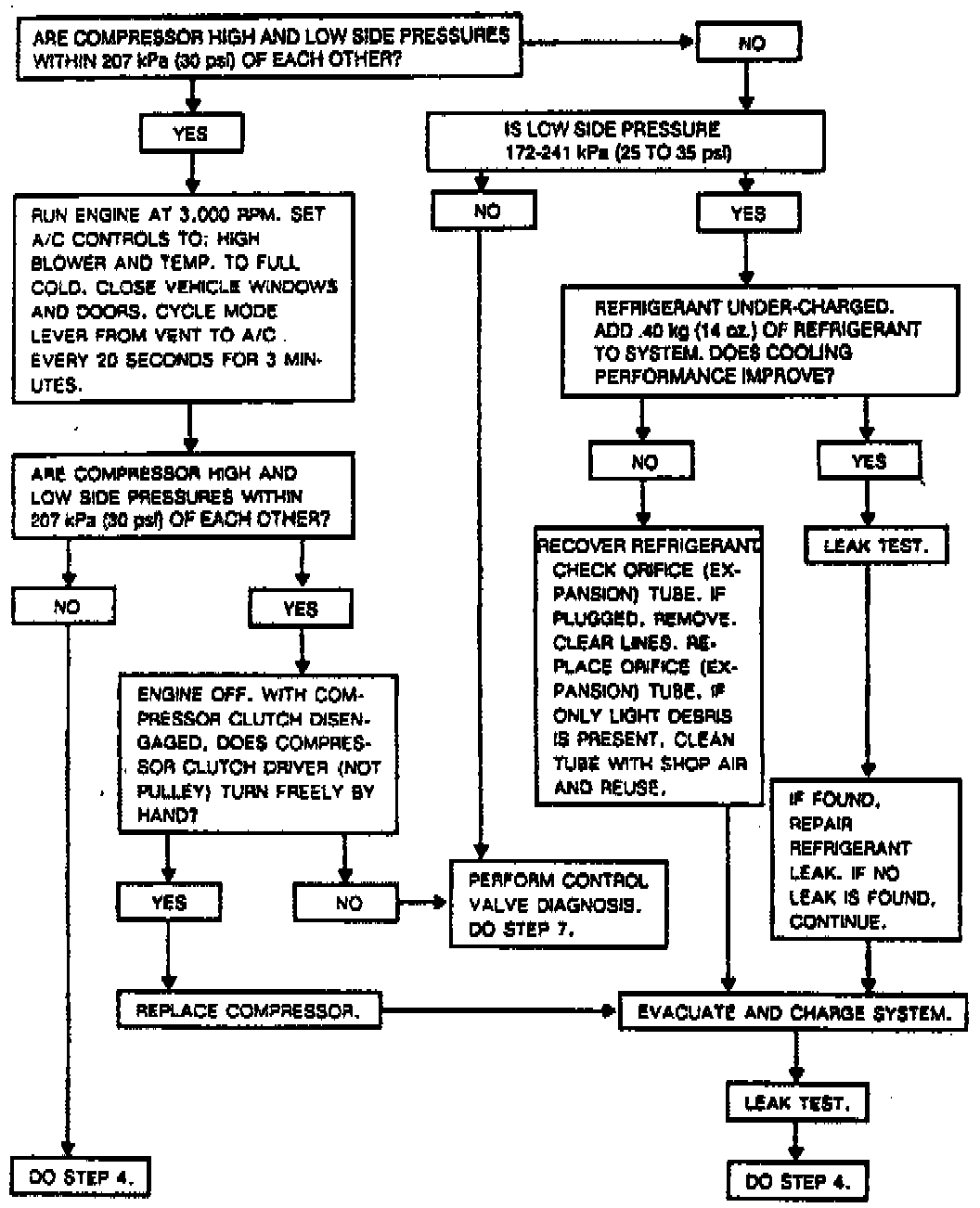

Fig. 8 Test 6: Variable Displacement Orifice Tube System.:
Fig. 9 Test 7: Variable Displacement Orifice Tube System.:
