System Check


SYSTEM CHECK

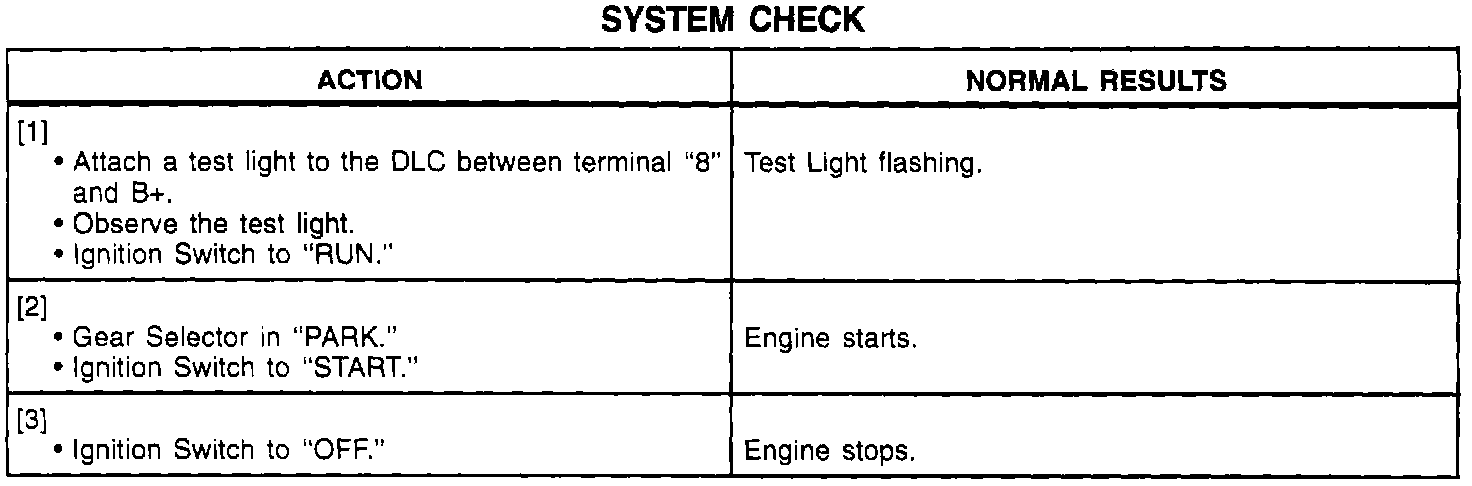

System Check:




Without Special Equipment Option (SEO)

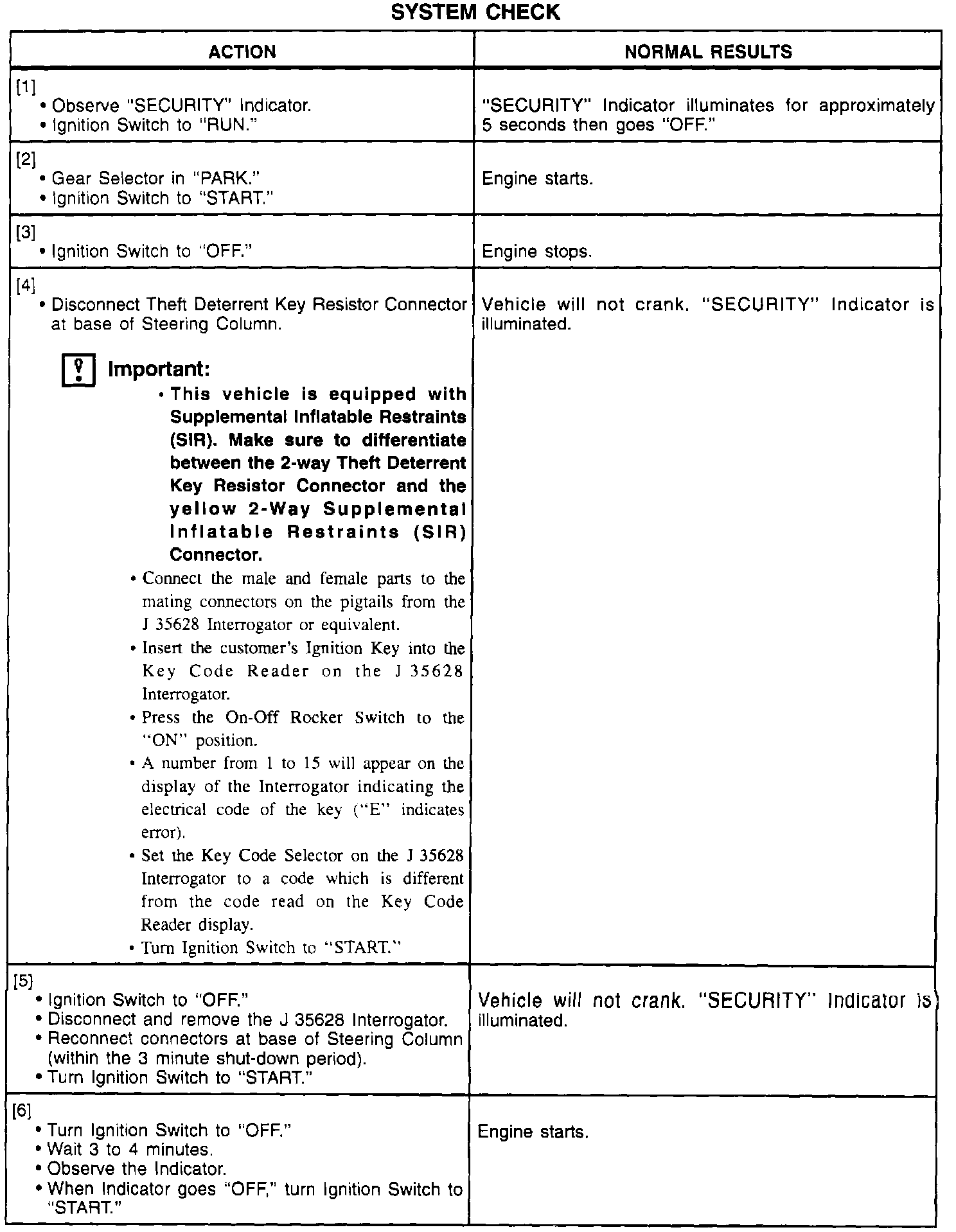

SEO: System Check:




With Special Equipment Option (SEO)


NOTE: Refer to Circuit Operation for description of SEO.
