System Test - Antenna

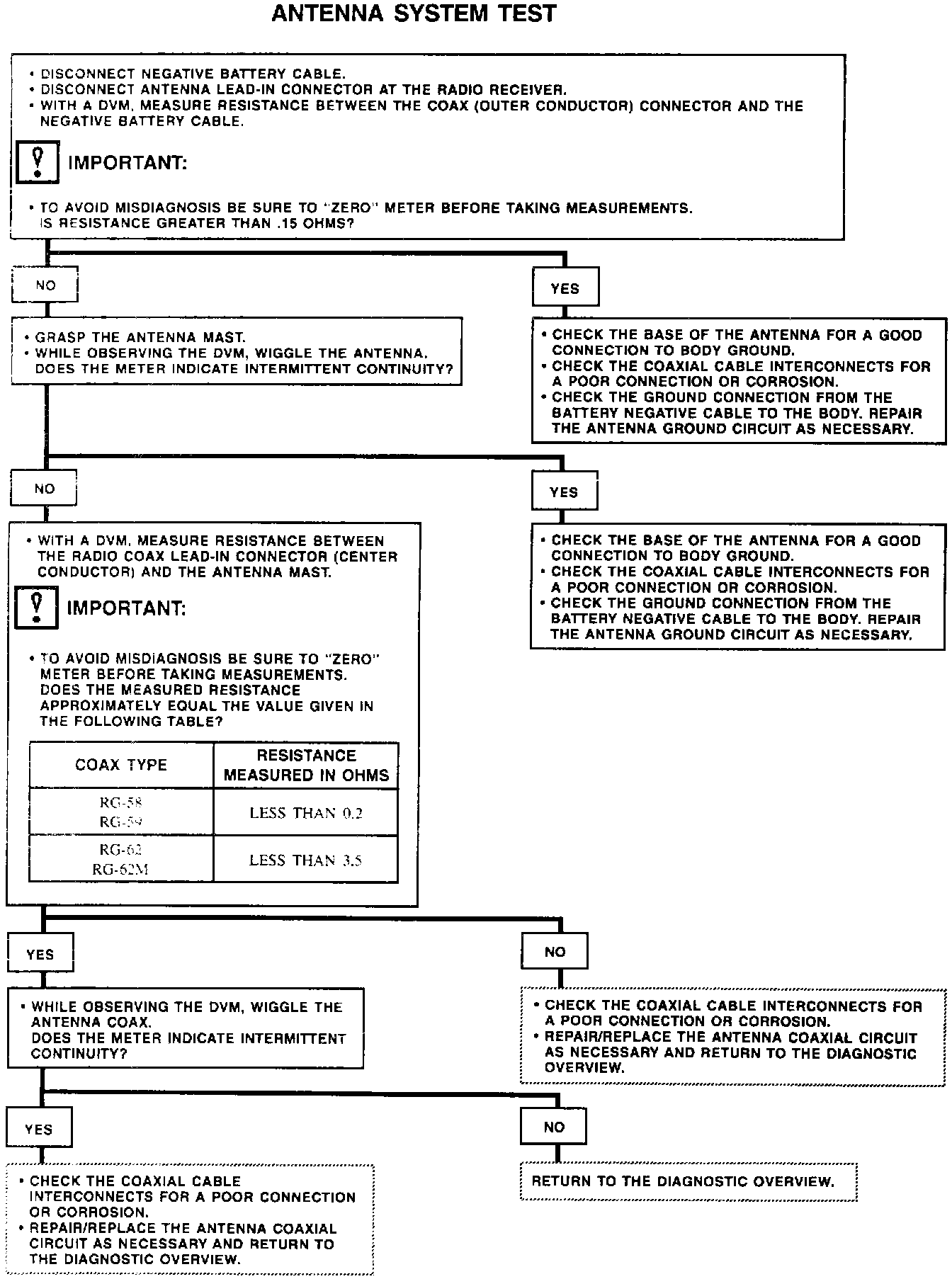

Antenna System Test:

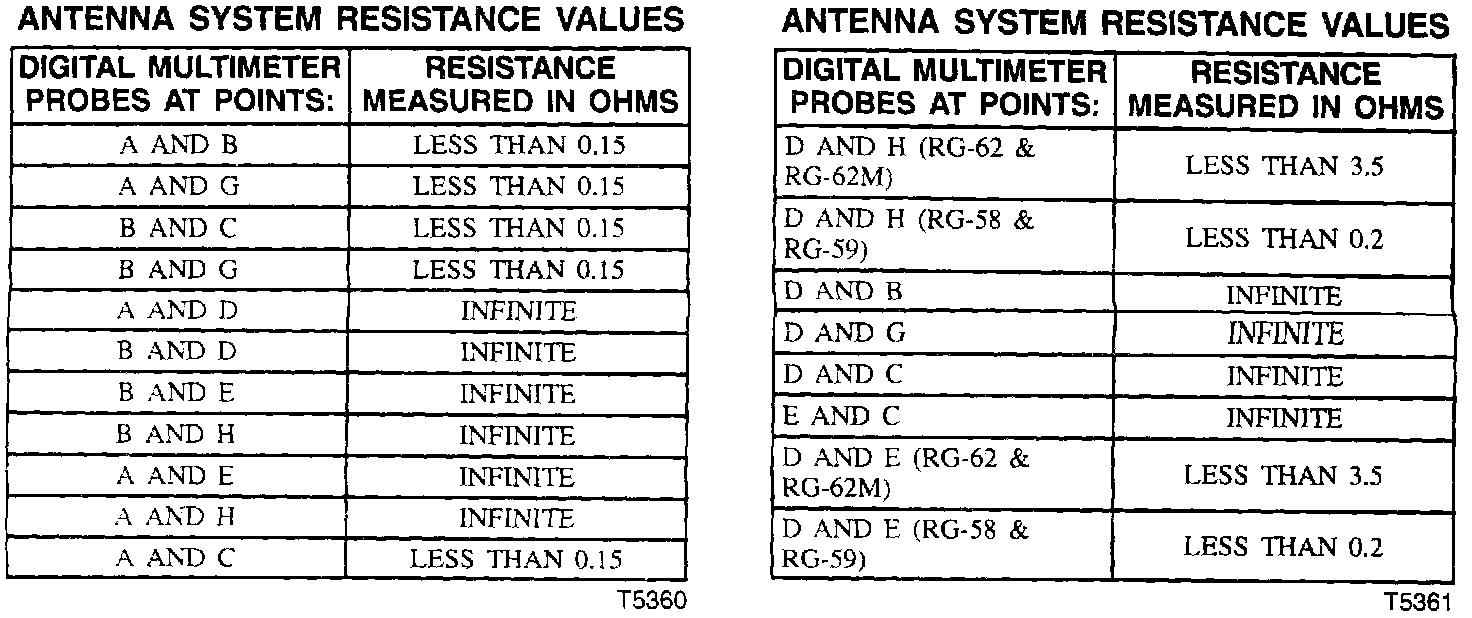

Antenna System Resistance Values:

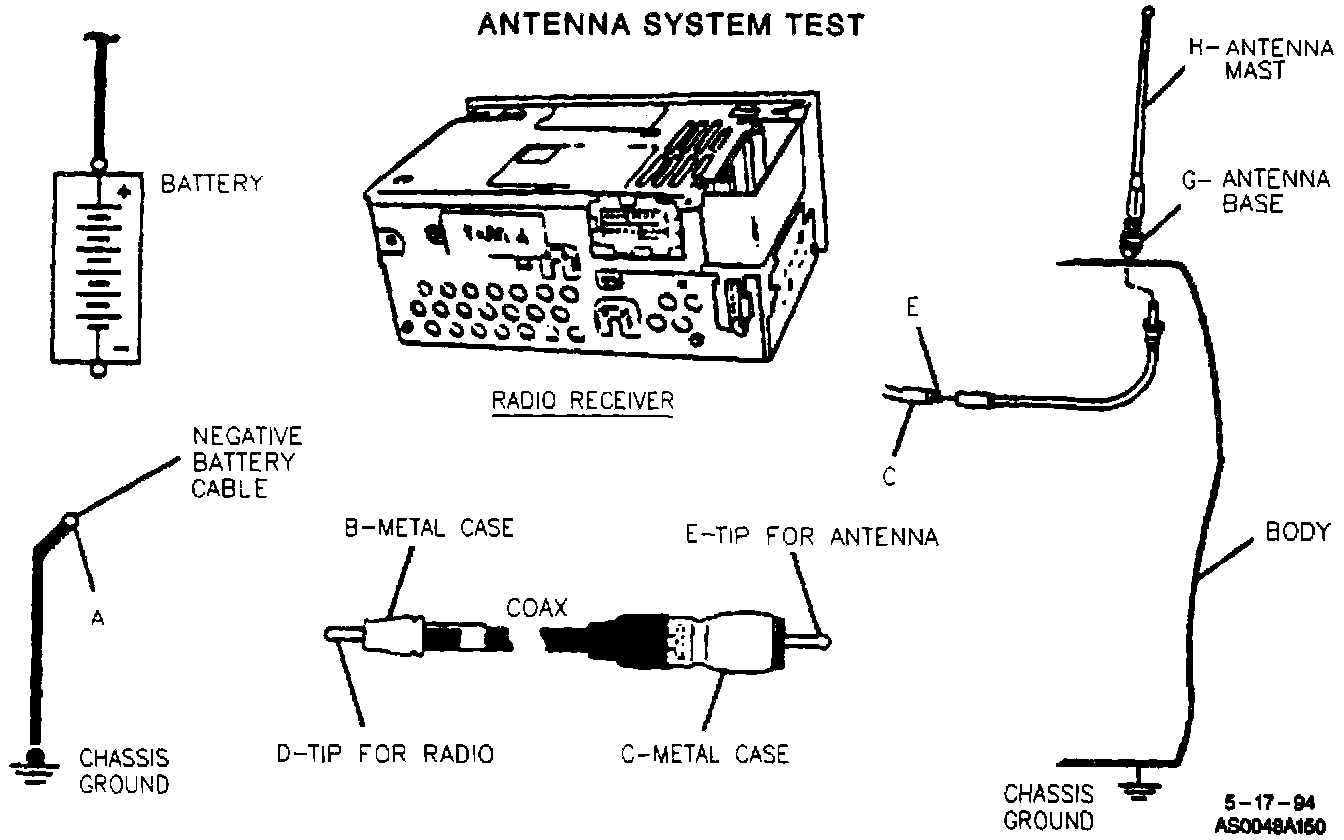

Antenna System Test:

IMPORTANT: Before measuring the resistance of the Antenna, remove the negative lead of the Battery and "zero" the meter before taking measurements. When checking resistance, cautiously wiggle the antenna mast, the lead-in tip and cable. The readings below should always be obtained. If not, some portion of the lead-in is intermittent and should be replaced.
