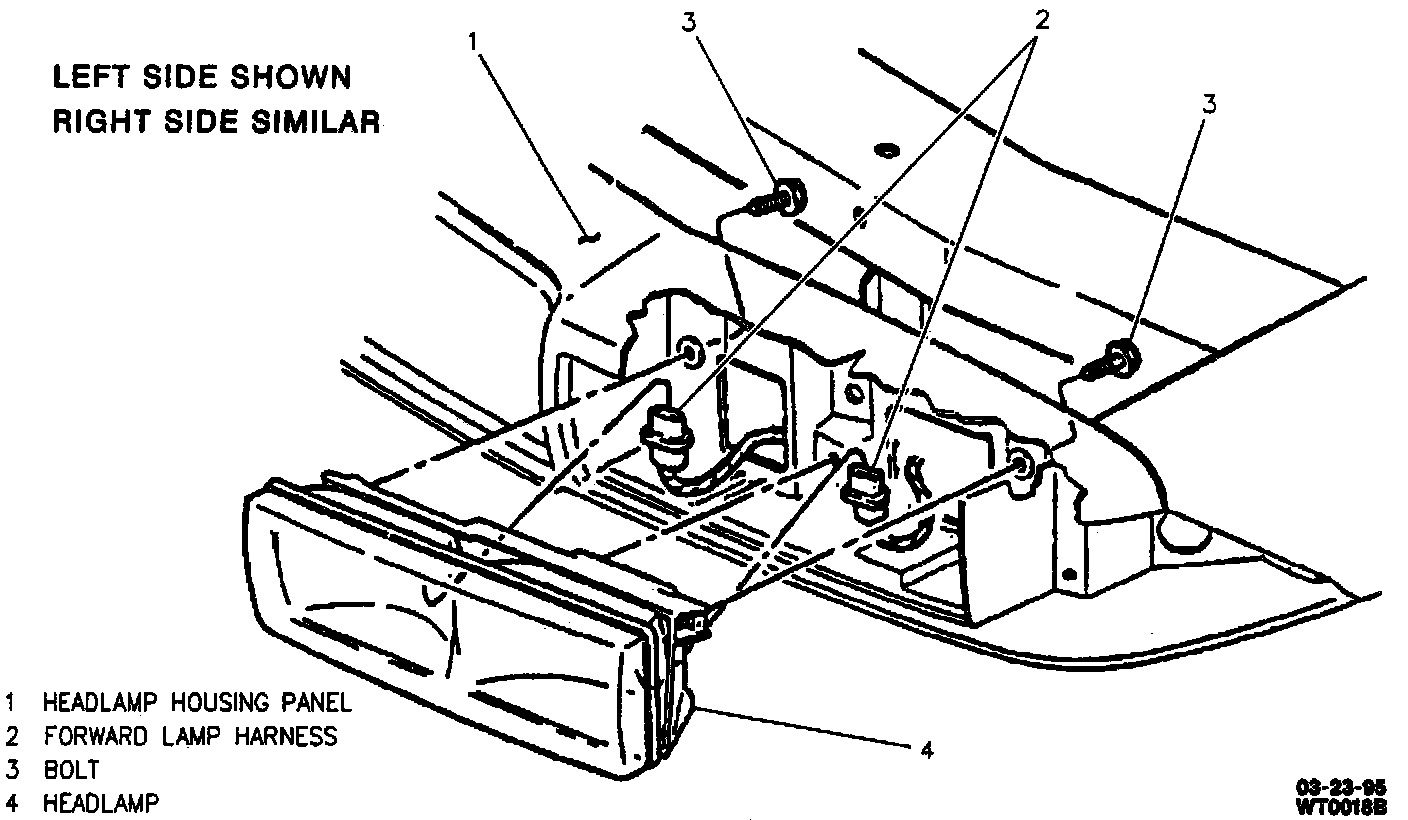

Headlamp Assembly

Headlamp:

Remove or Disconnect

1. Open hood.
2. Headlamp cover by turning knob and folding back.
3. Nuts (if Sedan) and bolts holding headlamp assembly.
4. Bulb/socket assemblies.
5. Headlamp assembly.

Install or Connect

1. Headlamp assembly, making sure to align guide post on back of assembly with hole in headlamp housing panel.
2. Bulb/socket assemblies.
3. Nuts (if Sedan) and bolts to assembly.

Tighten
^ Bolts (Sedan) to 8 N.m (71 lb. in.).
^ Bolts (Coupe) to 7 N.m (62 lb. in.).

4. Headlamp cover.
5. Close hood.

Adjust
^ Headlamp aim.
