Home >> Buick >> 1996 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C100-C199 >> C100 >> Harness Connector

Harness Connector

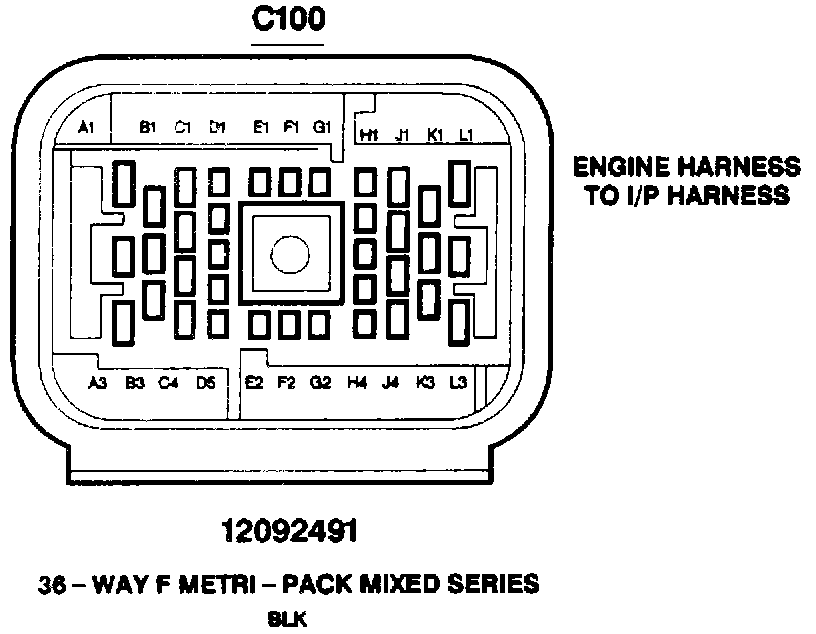

C100: Engine Harness To I/P Harness:
