Pinout Description
Pinout Description

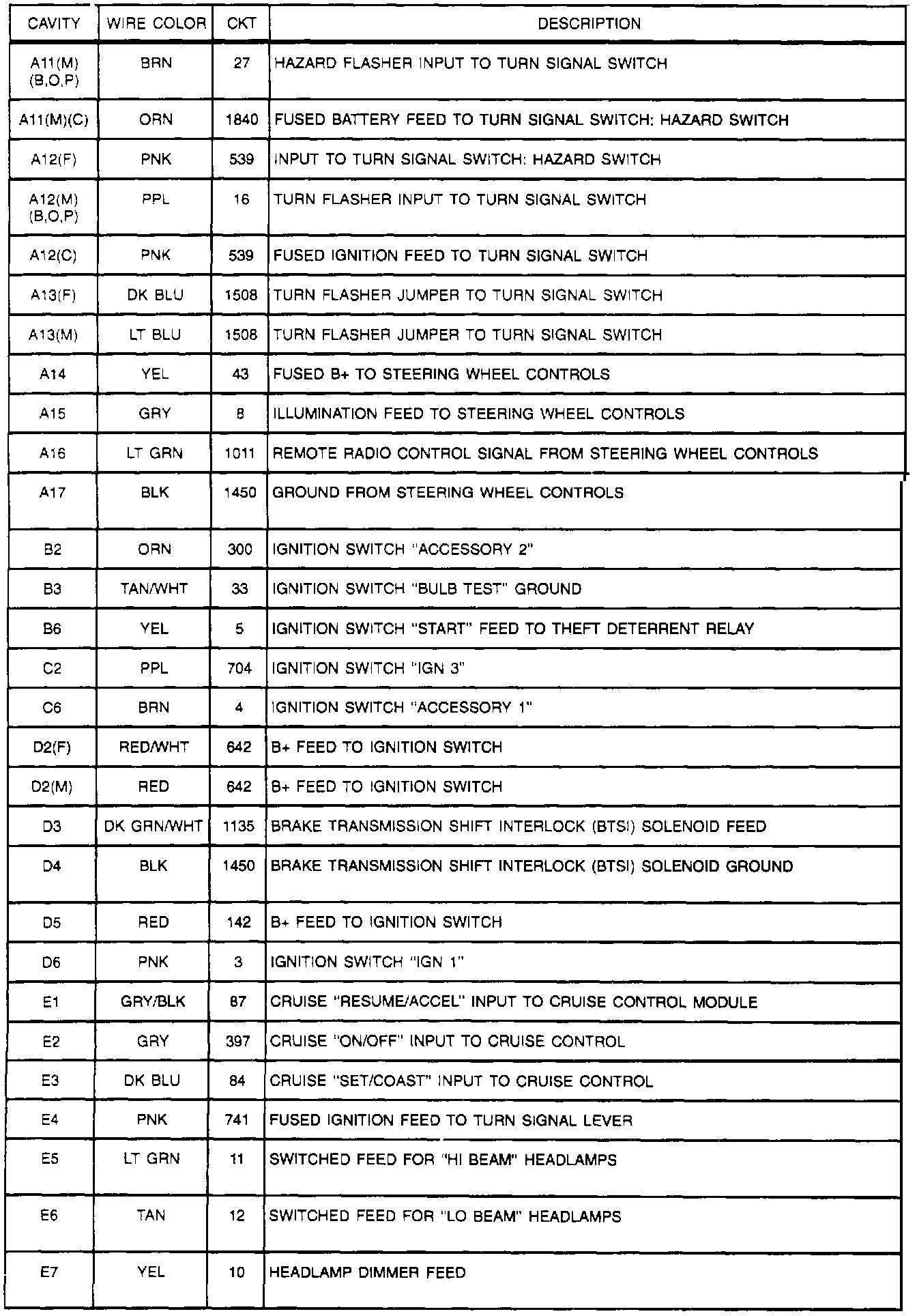

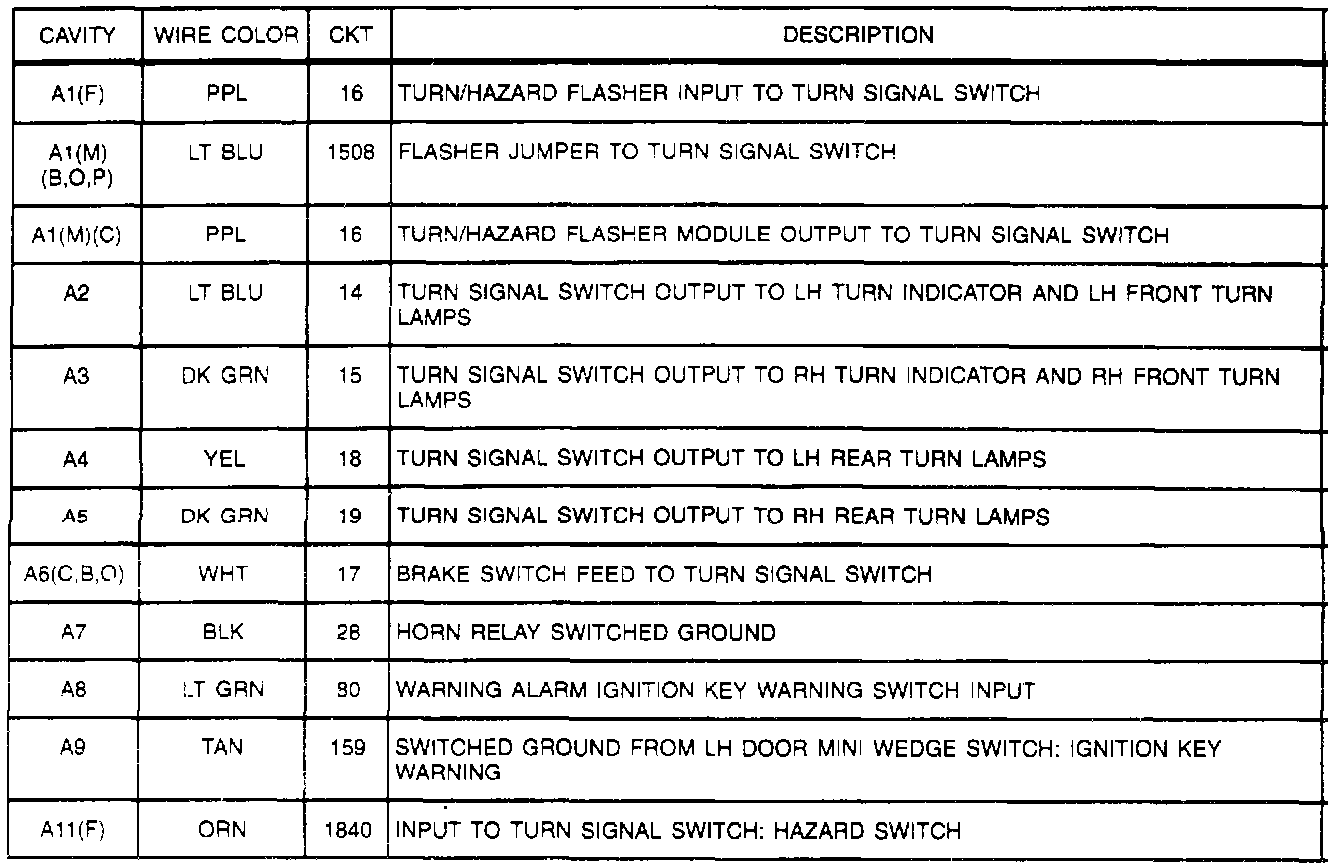

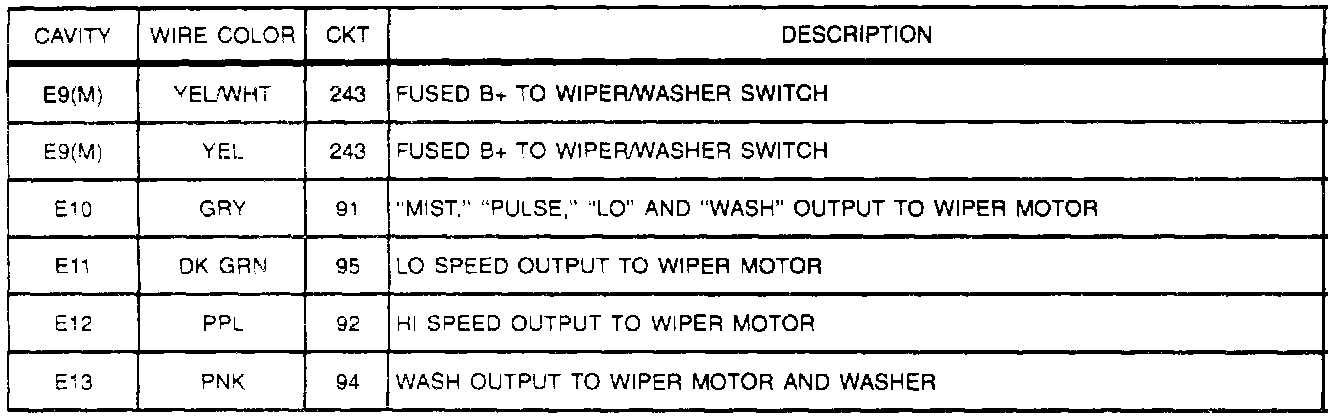

C202: I/P Harness To Steering Column Harness (Part 1 Of 3):
C202: I/P Harness To Steering Column Harness (Part 2 Of 3):
C202: I/P Harness To Steering Column Harness (Part 3 Of 3):
