Home
>>
Buick
>>
1996
>>
Regal V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
System Diagram
System Diagram

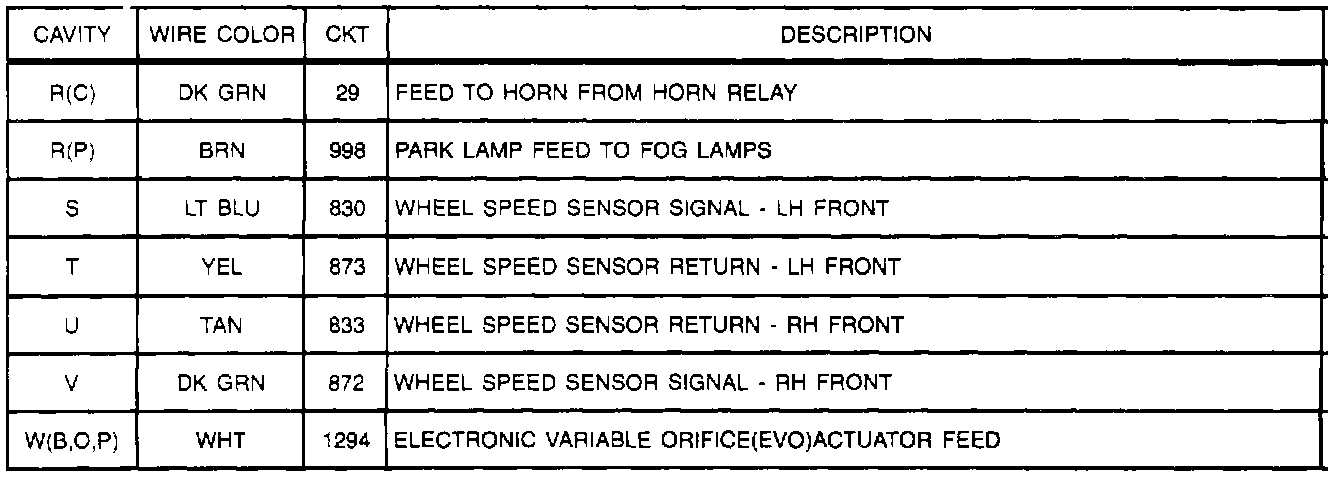

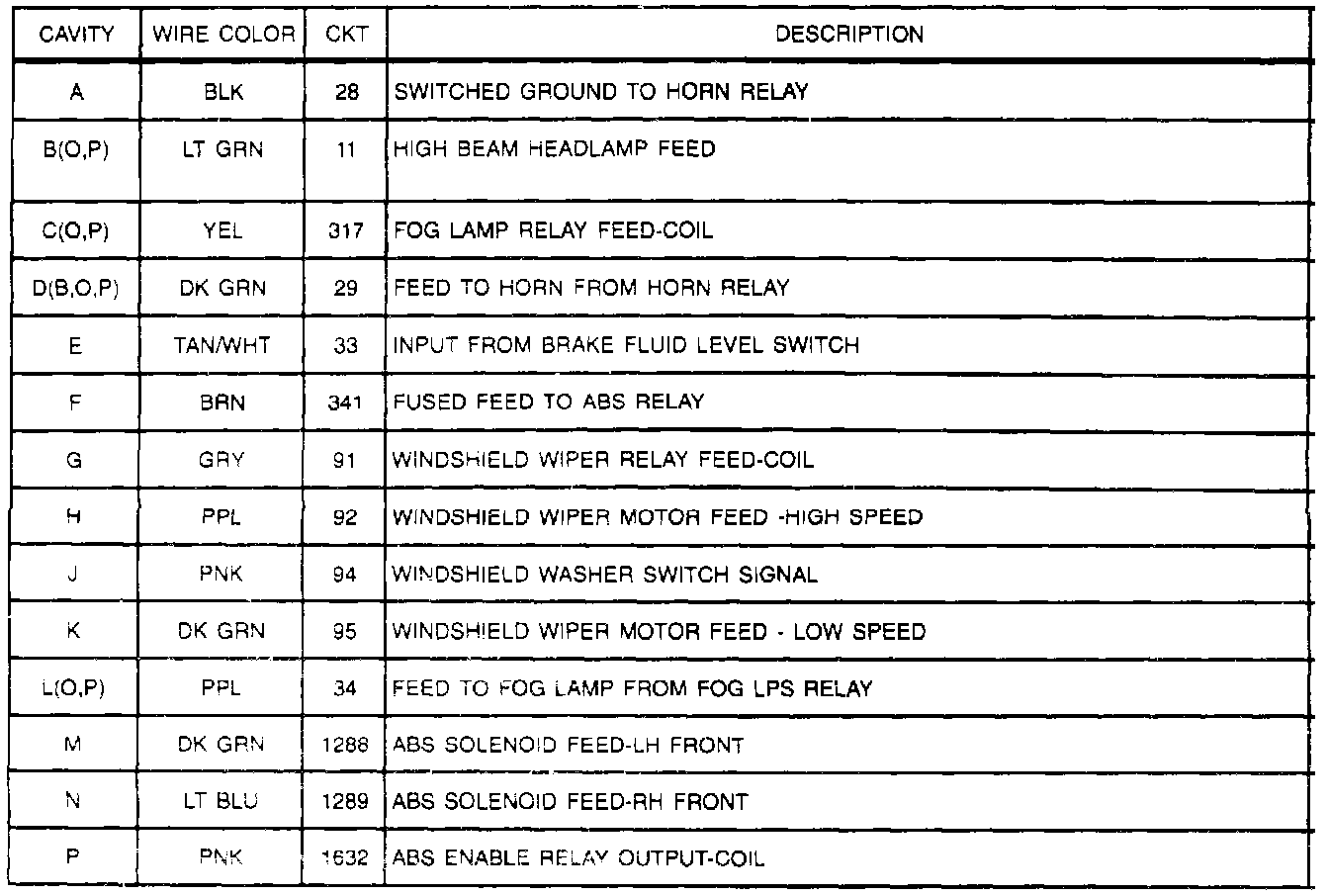

C219: I/P Harness To Wiper Harness:
C219: I/P Harness To Wiper Harness (Part 1 Of 2):
C219: I/P Harness To Wiper Harness (Part 2 Of 2):
C213: I/P Harness To Wiper Harness:
