Component Locations

RESTRAINT SYSTEM COMPONENT LOCATIONS

Component

⁽¹⁾ Location

Clockspring

Steering column, below steering wheel

Driver-side air bag module

Front face of steering wheel

Front air bag sensor

On radiator support next to hood latch

Occupant classification sensor

Under front passenger's seat cushion

Passenger-side air bag module

Right side of instrument panel, above glove box

Restraints control module

Center tunnel, below instrument panel

Seat belt pretensioner

Integrated with right & left front seat belt retractors

Seat track position sensor

On left front seat frame

⁽¹⁾	See Fig 1 .

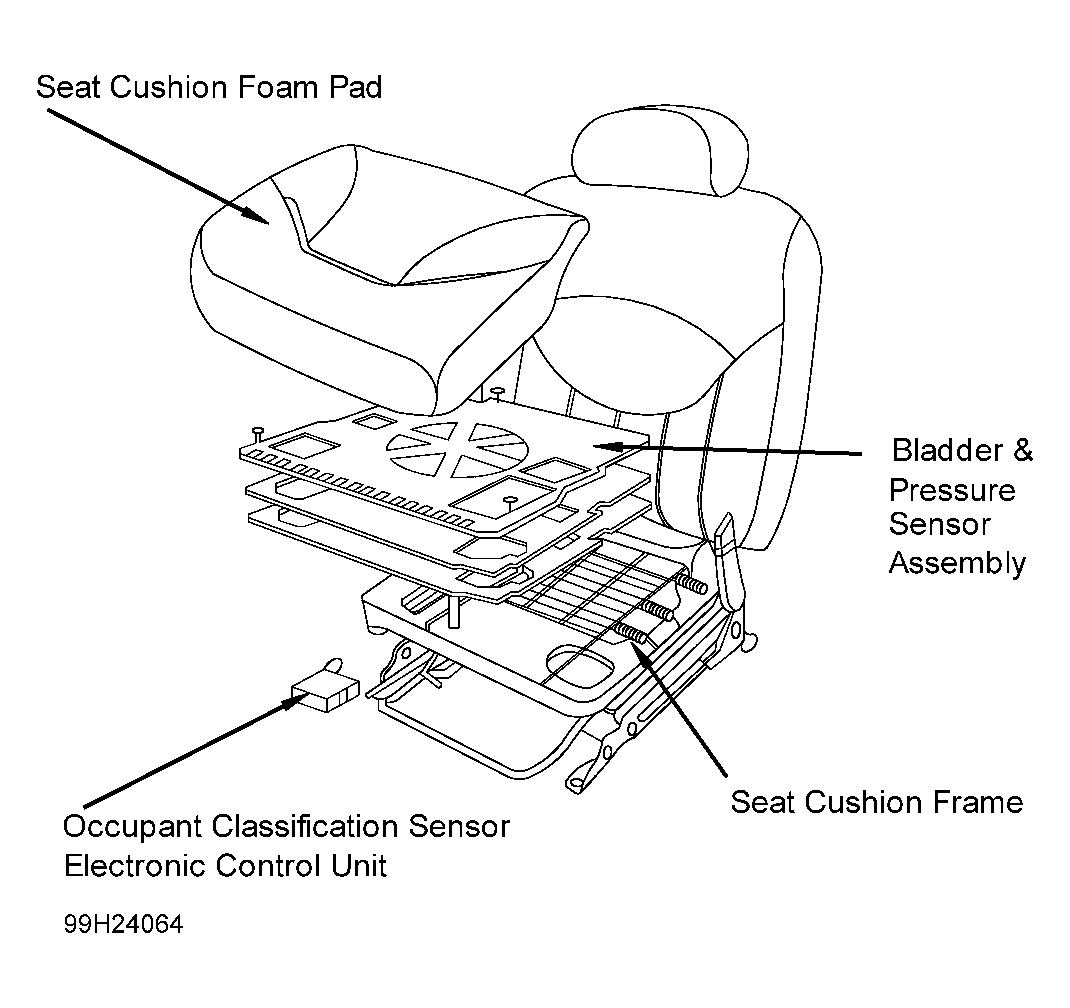

Fig 1: Locating Restraint System Components (1 Of 2)

Courtesy of FORD MOTOR CO.

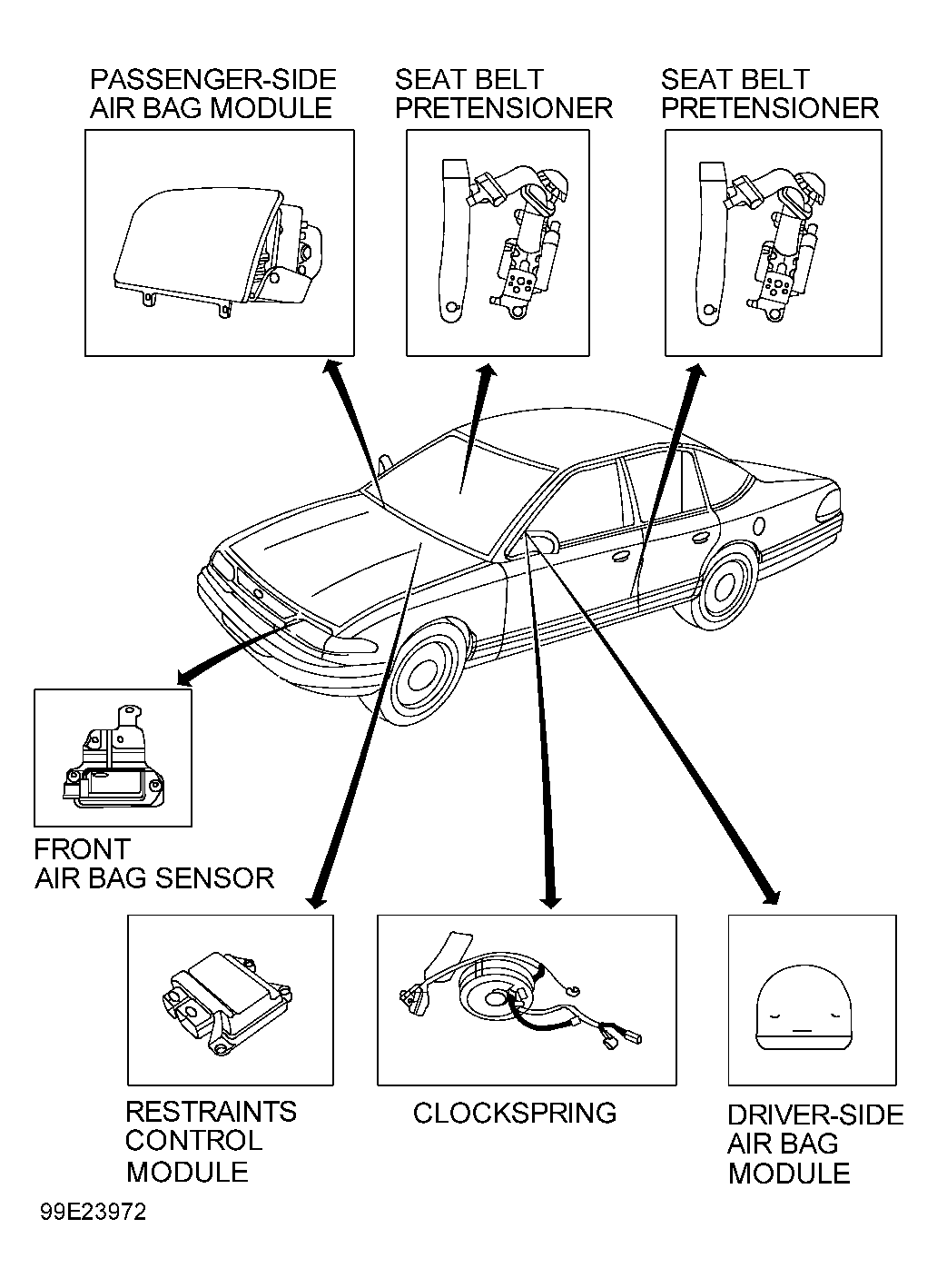

Fig 2: Locating Restraint System Components (2 Of 2)

Courtesy of FORD MOTOR CO.
