Air Bag Simulator

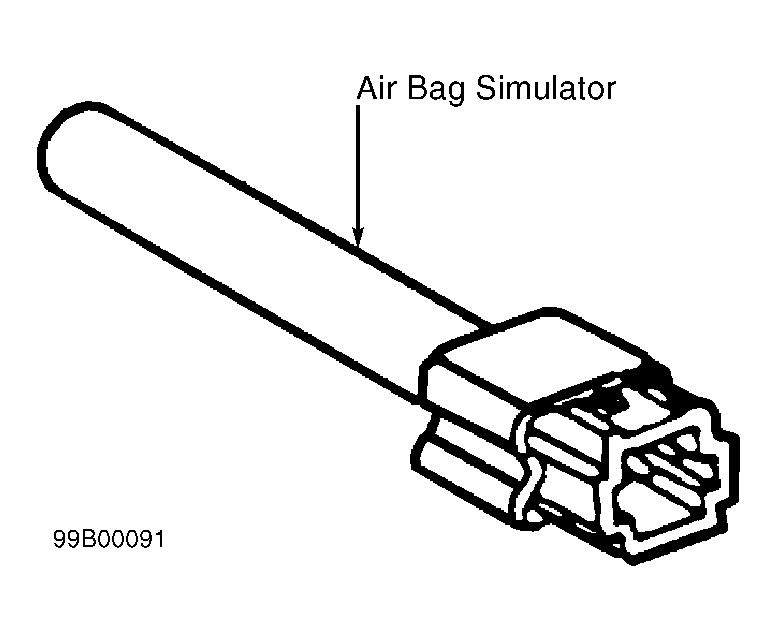

Air Bag Simulators (418-F088/105-R0012, 418-F403 and 418-F395) or equivalent are required to perform diagnosis and testing of the air bag system. See Fig 1 . An air bag simulator is a 2-ohm resistor, with appropriate connector, used to simulate an air bag module. DO NOT short-circuit air bag module connections with a zero-ohm jumper wire. If zero-ohm jumper is used, a Light Flash Code (LFC) will be displayed.
