Pinpoint Test K: The STOPLAMPS Are On Continuously

Fig 1: Pinpoint Test K: Stoplamps Are On Continuously (K1)
G03445131Courtesy of FORD MOTOR CO.

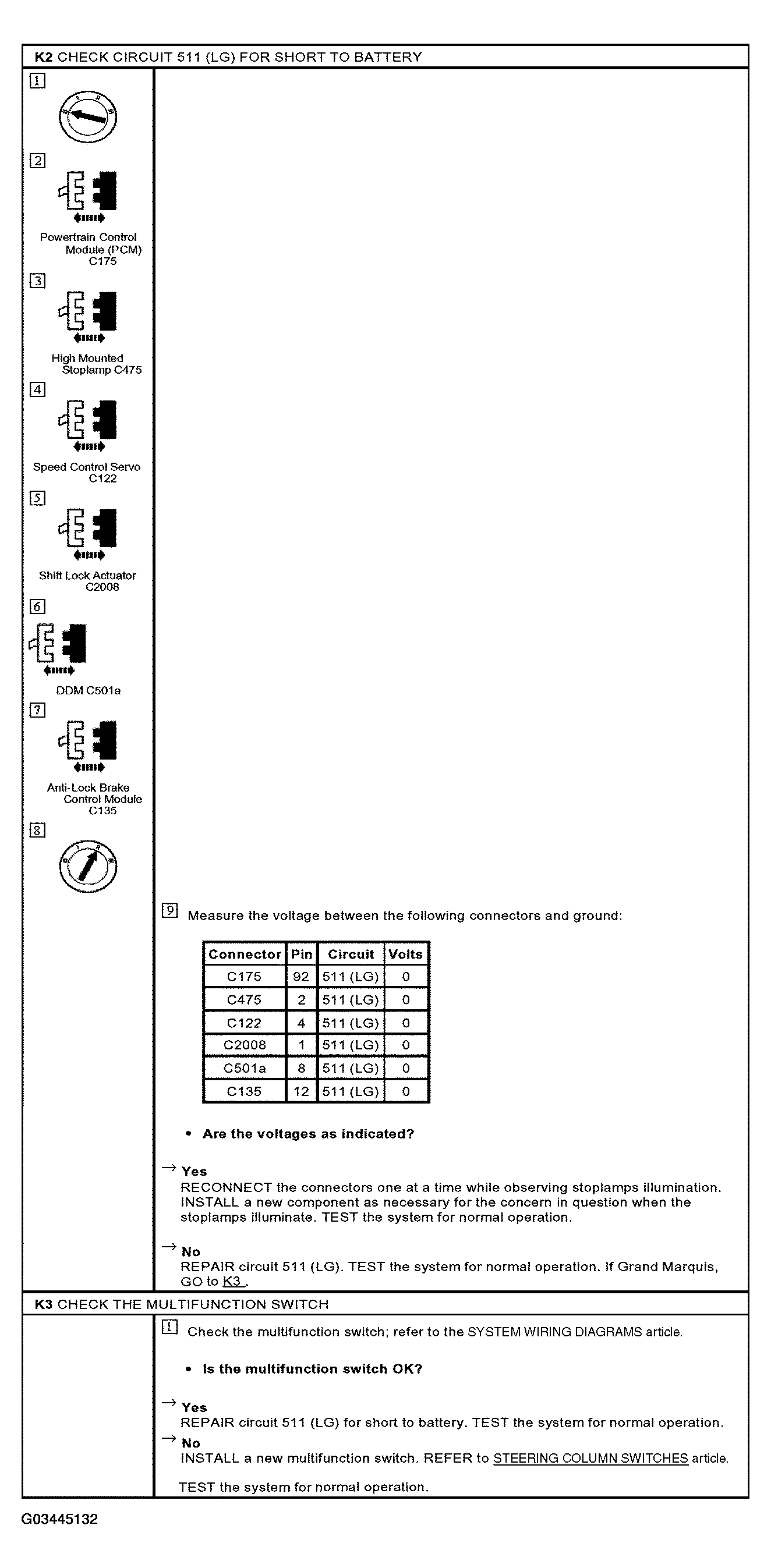

Fig 2: Pinpoint Test K: Stoplamps Are On Continuously (K2 of K3)
G03445132Courtesy of FORD MOTOR CO.
