Description & Operation

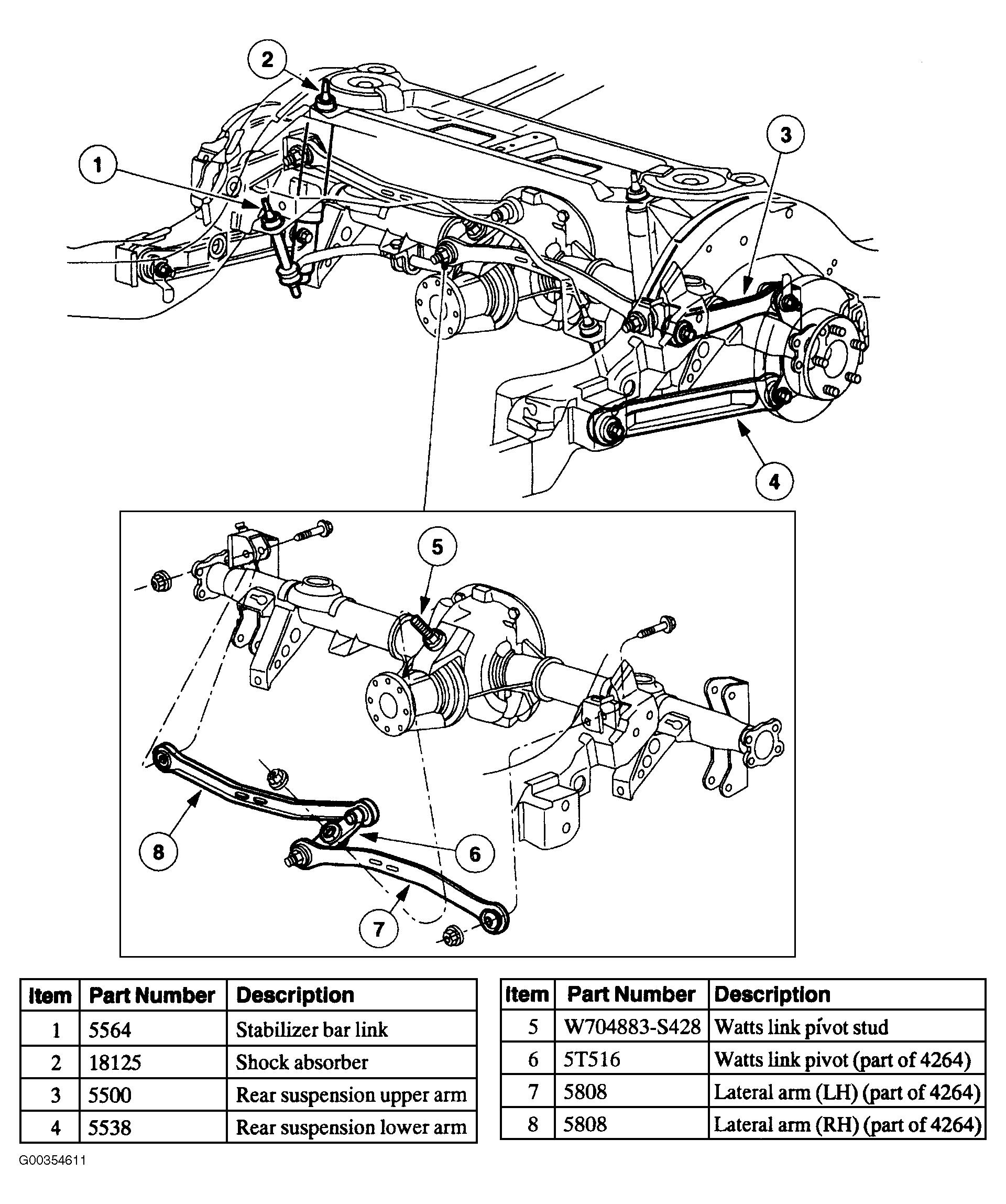

The rear suspension is composed of the following:
- Upper suspension arms
- Lower suspension arms
- Lateral arm
- Watts link pivot
- Rear stabilizer bar

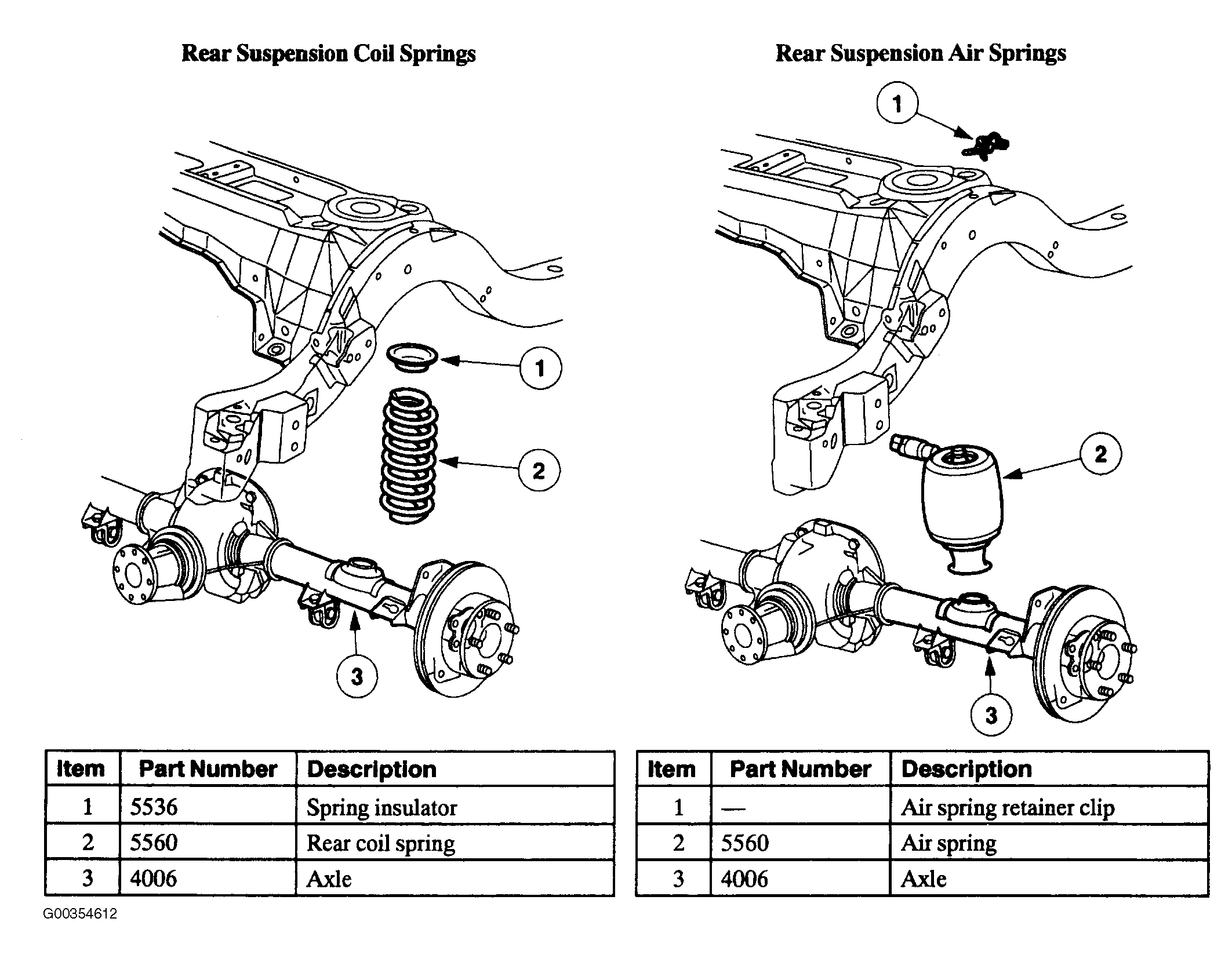

- Air springs (Air suspension systems only)
- Coil springs (Non air suspension systems only)
WARNING:
All vehicles are equipped with gas pressurized shock absorbers which will extend unassisted. Do not apply heat or flame to the shock absorbers during removal or component servicing. Failure to follow these instructions can result in personal injury.
CAUTION:
Suspension fasteners are critical parts because they affect the performance of vital components and their failure can result in major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to ensure proper retention of these parts. Orientation of the fasteners is also important on all suspension arms. Make sure the fasteners are installed in the same direction as when removed.
