Wheel Studs
>>
Removal
>>
All vehicles
All vehicles
Raise and support the vehicle. Remove the wheel and tire assembly.
Remove rear brake disc.
Using the special tool, press the lug bolt from its seat and discard.

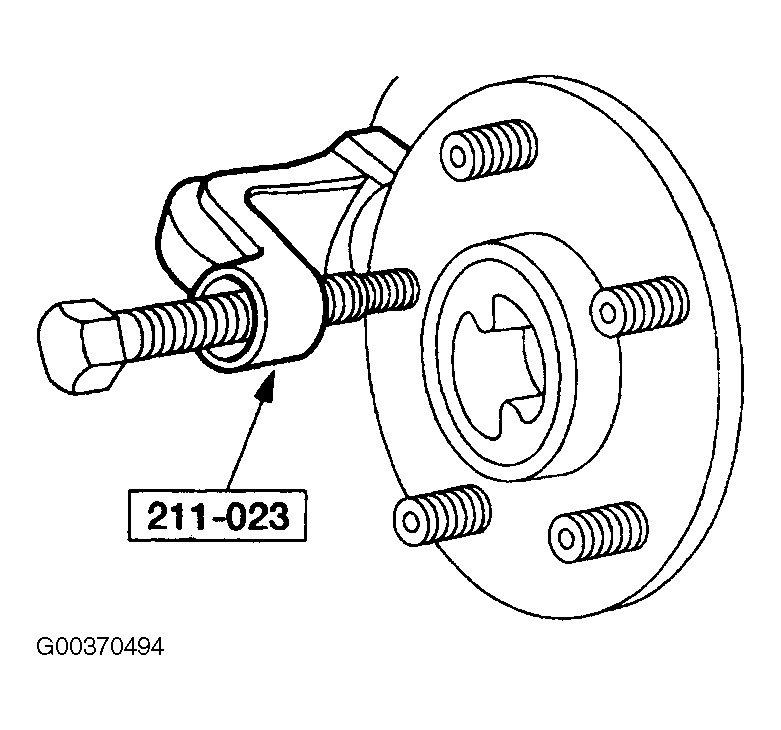

Fig 1: Pressing Wheel Stud From Axle Flange
Courtesy of FORD MOTOR CO.
