All vehicles

Mark the rear suspension shock absorber relative to the protective sleeve with the vehicle in a static, level ground position (curb height).

Fig 1: Rear Suspension Shock Absorber Reference Mark
Courtesy of GENERAL MOTORS CORP.
Raise and support the vehicle. Remove the wheel and tire assembly. Use the special tool 014-00942 or equivalent to support the rear axle.

Fig 2: Supporting Rear Axle
Courtesy of FORD MOTOR CO.

Remove and discard the rear suspension lower arm pivot bolt and nut from the axle bracket.

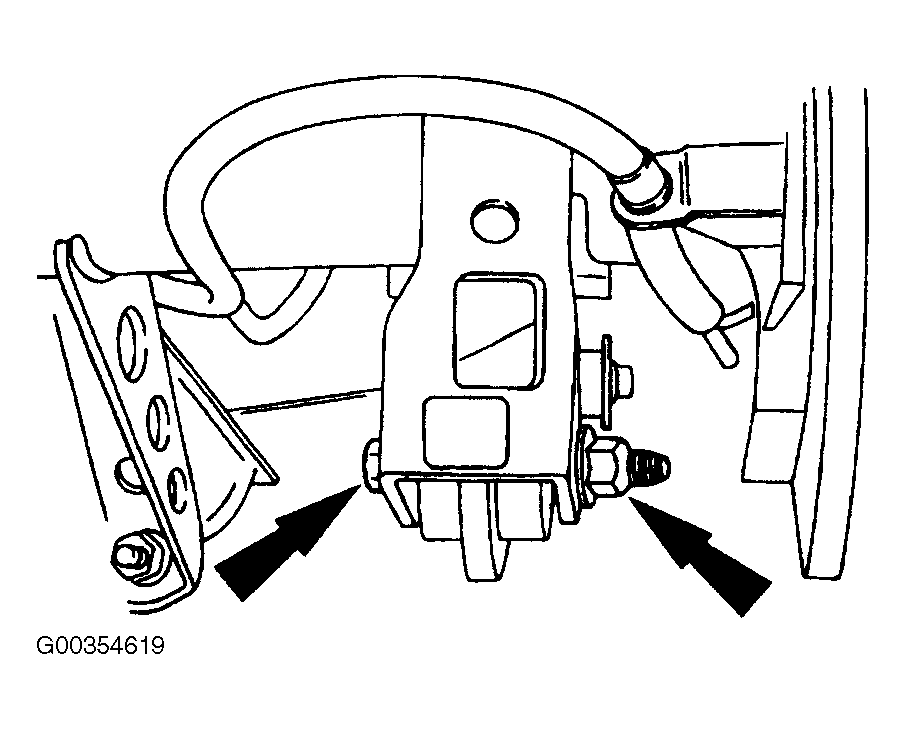

Fig 1: Identifying Lower Arm Pivot Bolt & Axle Bracket
Courtesy of FORD MOTOR CO.
Remove and discard the rear suspension lower arm pivot bolt and nut from the frame bracket. Remove the rear suspension lower arm.

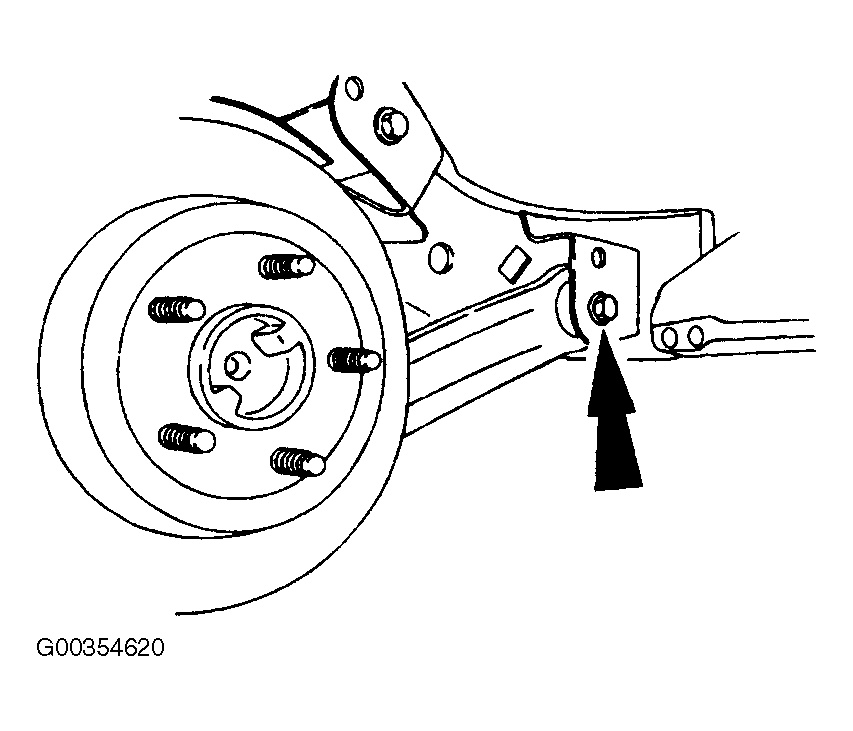

Fig 2: Identifying Lower Arm Pivot Bolt & Frame Bracket
Courtesy of FORD MOTOR CO.
