All vehicles

Mark the rear suspension shock absorber relative to the protective sleeve with the vehicle in a static, level ground position (curb height).

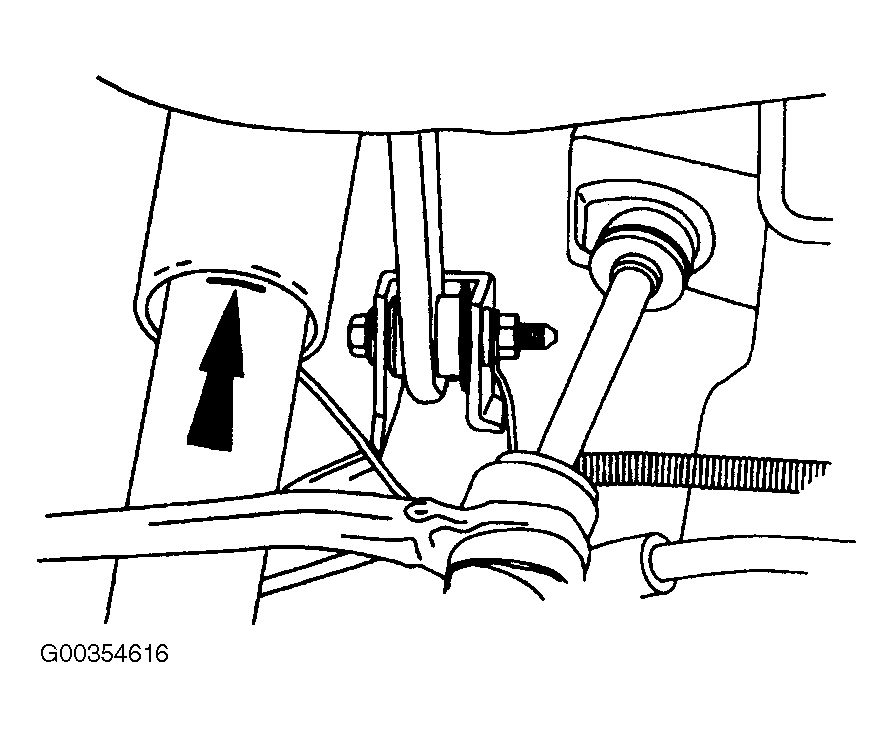

Fig 1: Rear Suspension Shock Absorber Reference Mark
Courtesy of GENERAL MOTORS CORP.
Raise and support the vehicle. Use the special tool 014-00942 or equivalent to support the rear axle.

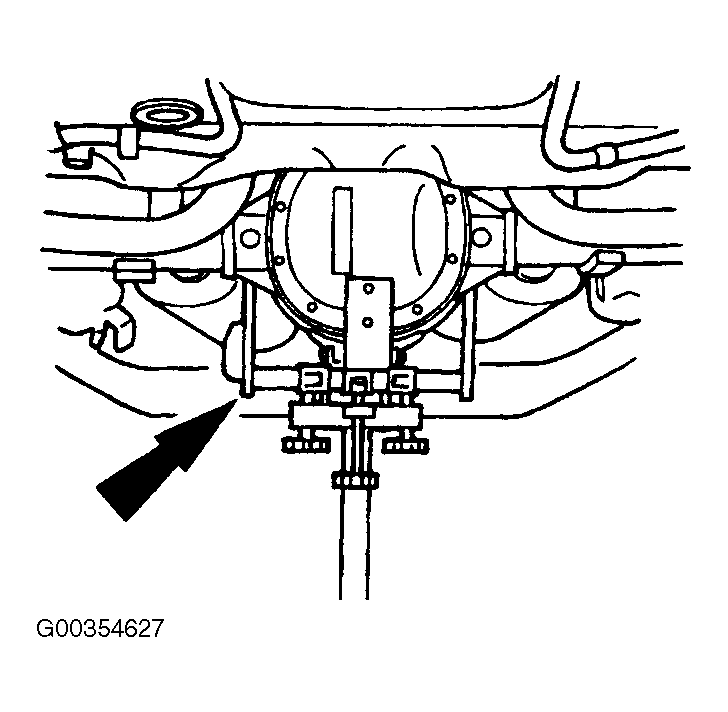

Fig 2: Supporting Rear Axle
Courtesy of FORD MOTOR CO.

CAUTION: Do not use excessive force when removing the pivot bolt and flag nut on the right upper suspension arm to axle bracket. Damage to the brake line can occur.

Remove and discard the rear suspension upper arm pivot bolt and nut from the axle bracket.

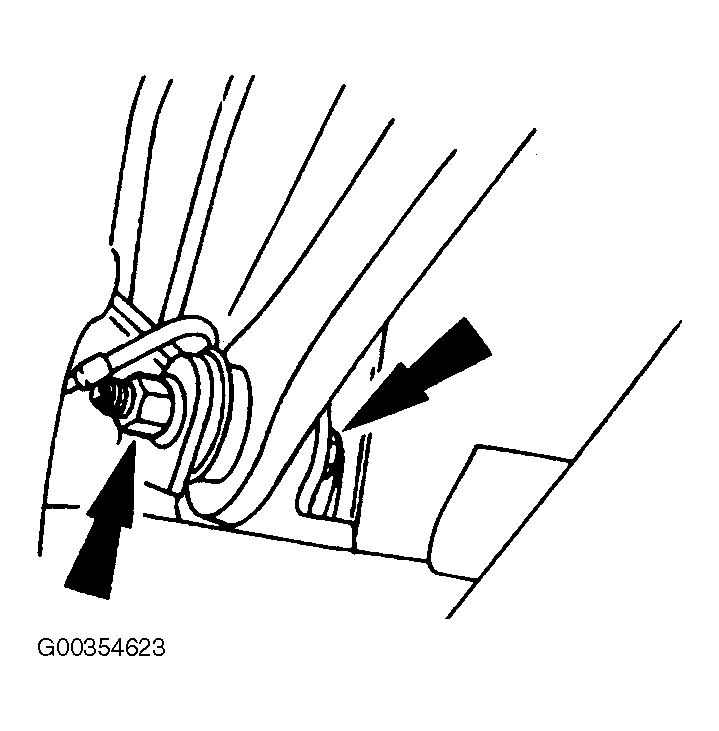

Fig 1: Identifying Upper Arm Pivot Bolt & Axle Bracket
Courtesy of FORD MOTOR CO.
Remove and discard the rear suspension upper arm pivot bolt and nut from the frame bracket. Remove the rear suspension upper arm.

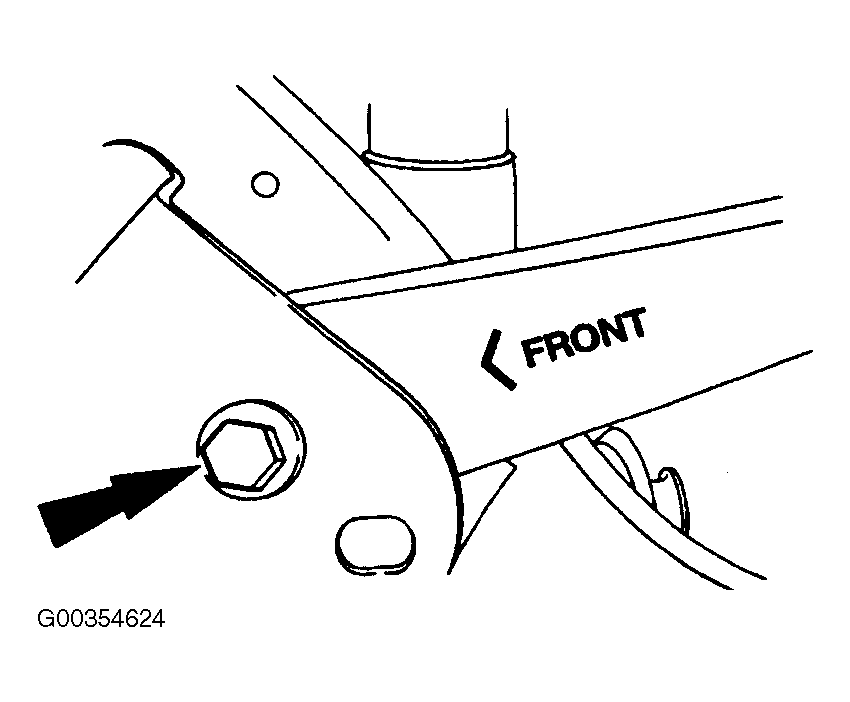

Fig 2: Identifying Upper Arm Pivot Bolt & Frame Bracket
Courtesy of FORD MOTOR CO.
