All vehicles

  1. Raise and support the vehicle. Remove both stabilizer bar link lower retaining nuts and bushings.

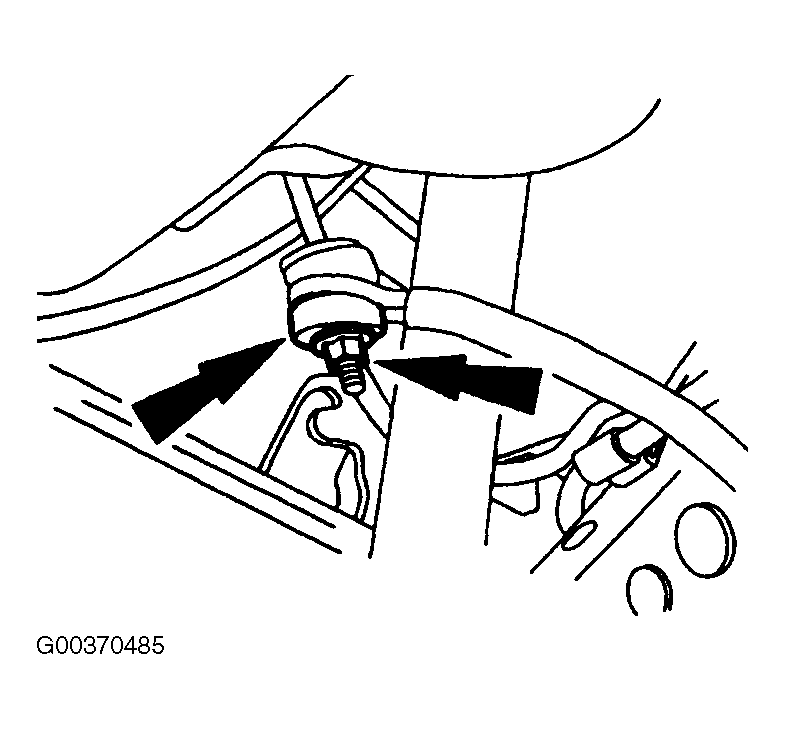

    Fig 1: Identifying Stabilizer Bar Link-To-Lower Retaining Nuts & Bushings
    G00370485Courtesy of FORD MOTOR CO.
  2. Remove both stabilizer bar mounting bracket bolts. Remove the brackets and the stabilizer bar.

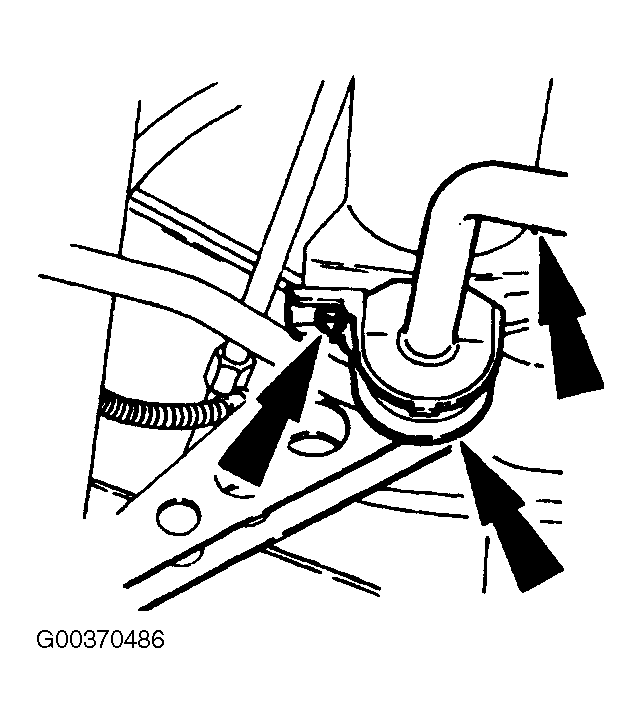

    Fig 2: Identifying Stabilizer Bar Mounting Bracket
    G00370486Courtesy of FORD MOTOR CO.
