All vehicles

  1. Raise and support the vehicle. Remove both stabilizer bar link lower retaining nuts and bushings.
    Fig 1: Identifying Stabilizer Bar Link-To-Lower Retaining Nuts & Bushings
    G00370485Courtesy of FORD MOTOR CO.
  2. Remove both stabilizer bar link upper retaining nuts and bushings. Remove the links.

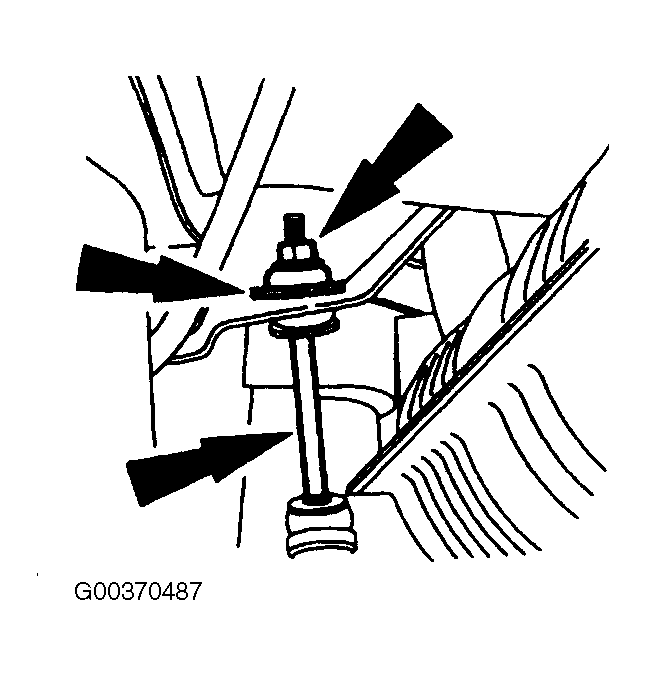

    Fig 2: Identifying Stabilizer Bar Link Upper Retaining Nuts & Bushings
    G00370487Courtesy of FORD MOTOR CO.
