All vehicles

Raise and support the vehicle. Use the special tool 014-00942 or equivalent to support the rear axle.

Fig 1: Supporting Rear Axle

Courtesy of FORD MOTOR CO.

NOTE: Replace shock absorbers individually as required. It is not necessary to replace in pairs.
NOTE: To assist in removing the upper attachment on shock absorbers, use a plastic dust tube and place an open end wrench on the hex stamped into the dust tube's metal cap. For shock absorbers with a steel dust tube, simply grasp the tube to prevent stud rotation when loosening the retaining nut.

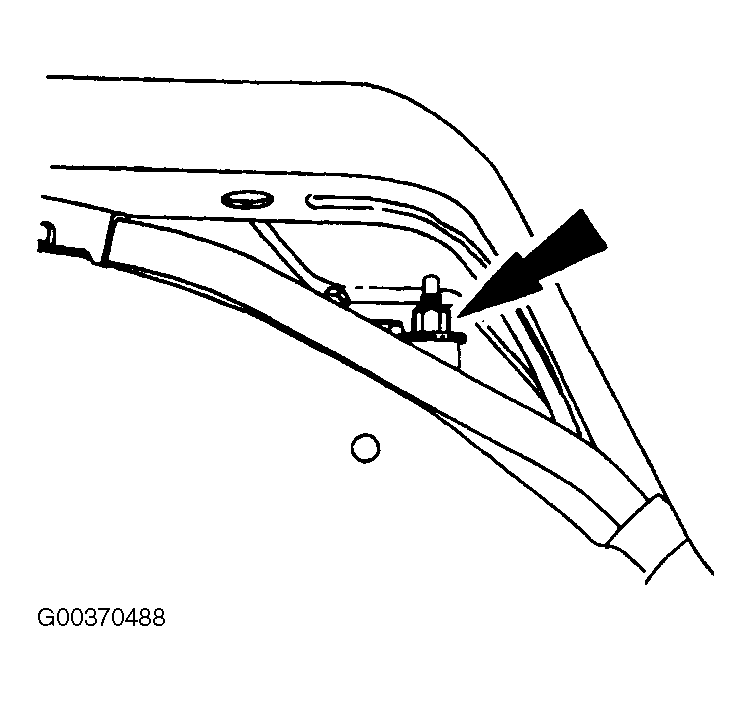

Fig 1: Identifying Shock Absorber Upper Retaining Nut
Courtesy of FORD MOTOR CO.
1. Remove the shock absorber upper retaining nut, washer and insulator from the stud on the upper side of the frame.
2. Remove and discard the nut. Disconnect the shock absorber lower stud from the mounting bracket on the rear axle assembly.

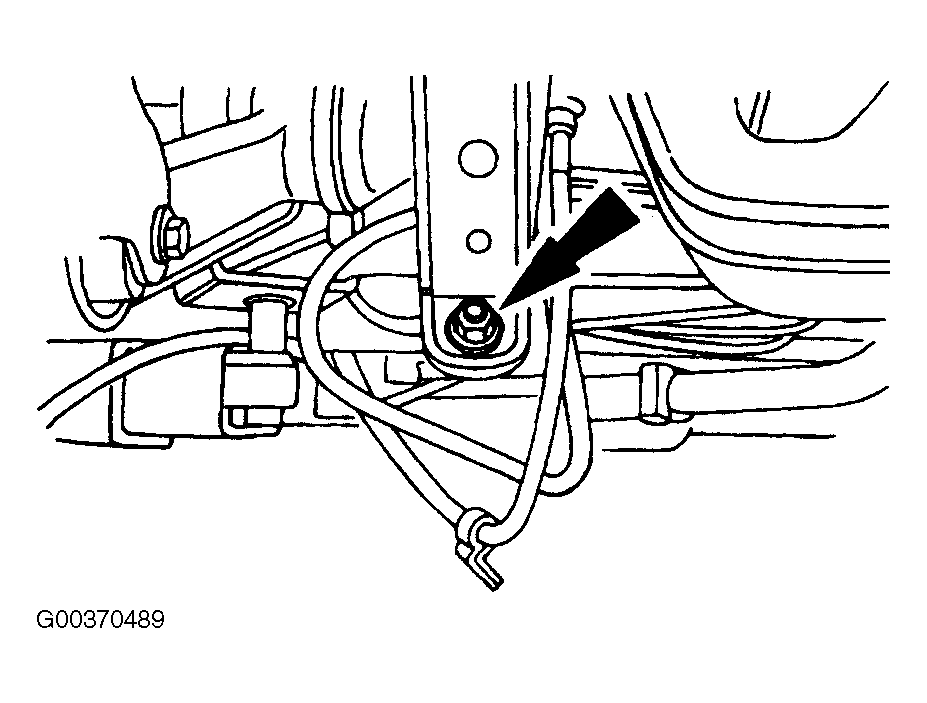

   Fig 2: Identifying Shock Absorber Lower Mounting Bracket

   Courtesy of FORD MOTOR CO.
