Vehicles equipped with air suspension

  1. Mark the position of the height sensor mounting bracket to the lateral arm for positioning during installation.
  2. Remove the height sensor mounting bracket retaining nuts and remove the bracket.

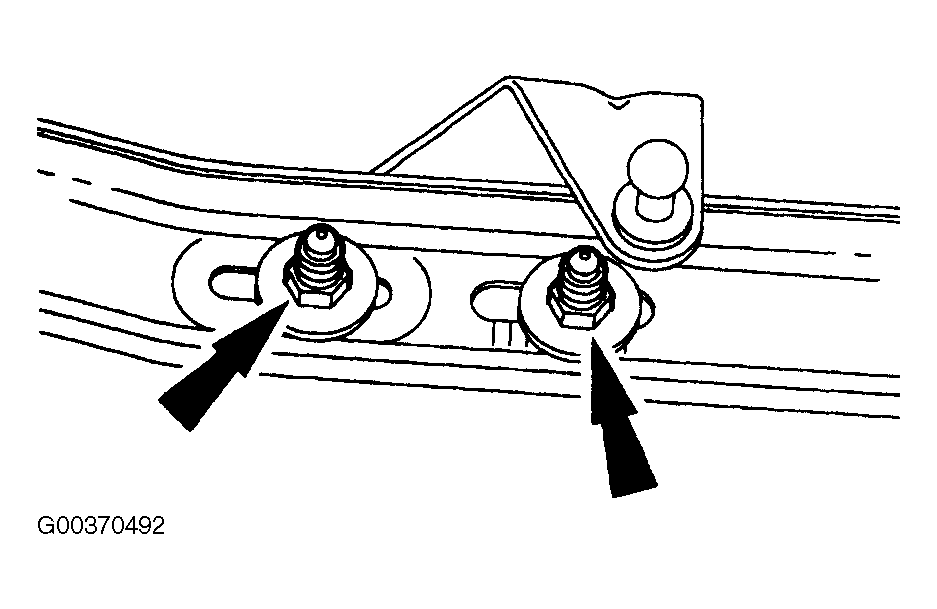

    Fig 1: Identifying Height Sensor Mounting Bracket Nuts
    G00370492Courtesy of FORD MOTOR CO.
