Stabilizer Bar & Link Assembly: Removal

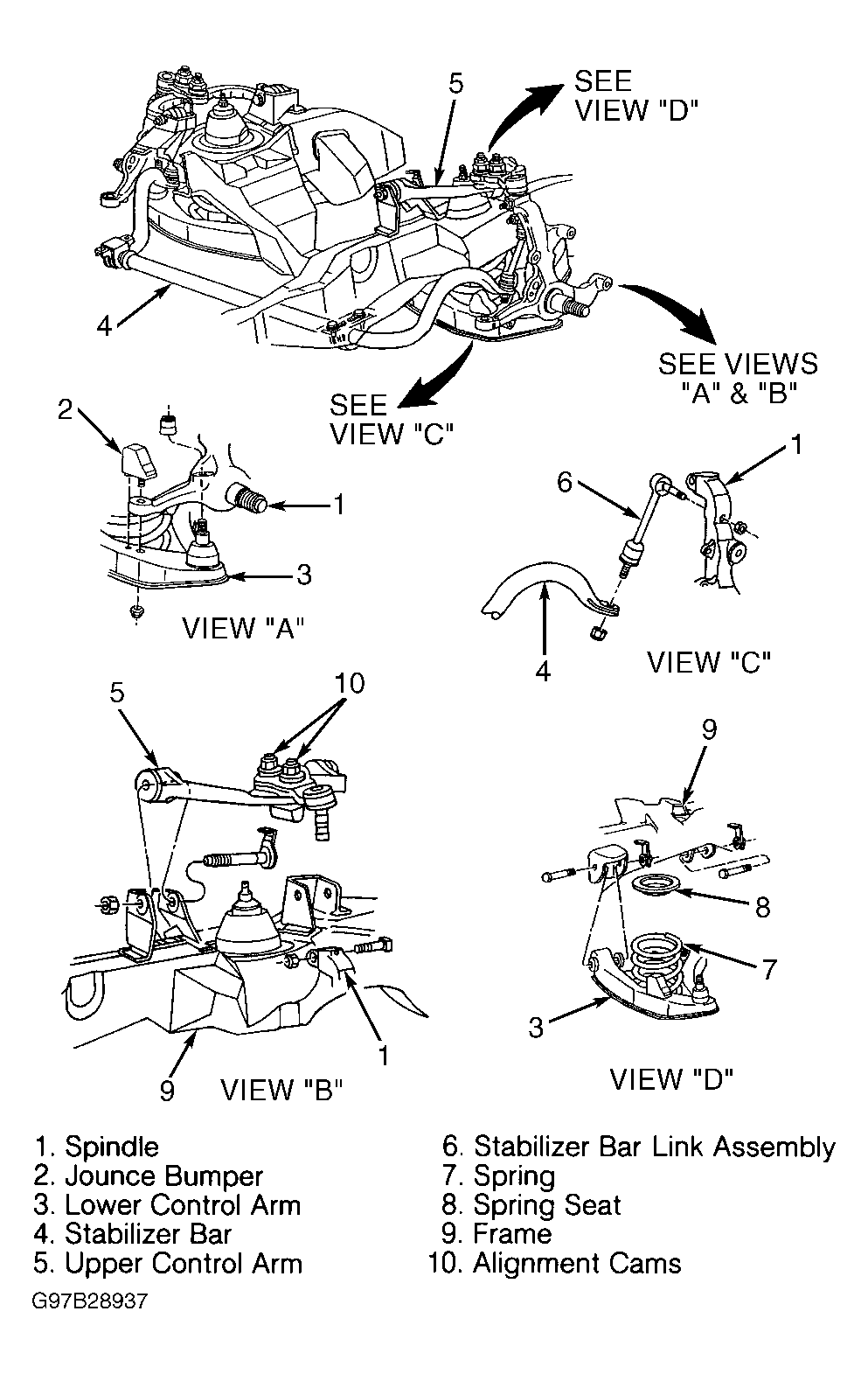

Raise vehicle on hoist. Remove retaining nuts from stabilizer bar links on stabilizer bar. Remove stabilizer link nut on wheel spindle. Remove stabilizer links. See Figure.

To remove stabilizer bar, remove nuts at frame brackets.
