Pinpoint Test A: No Communication With The EVO Control Module

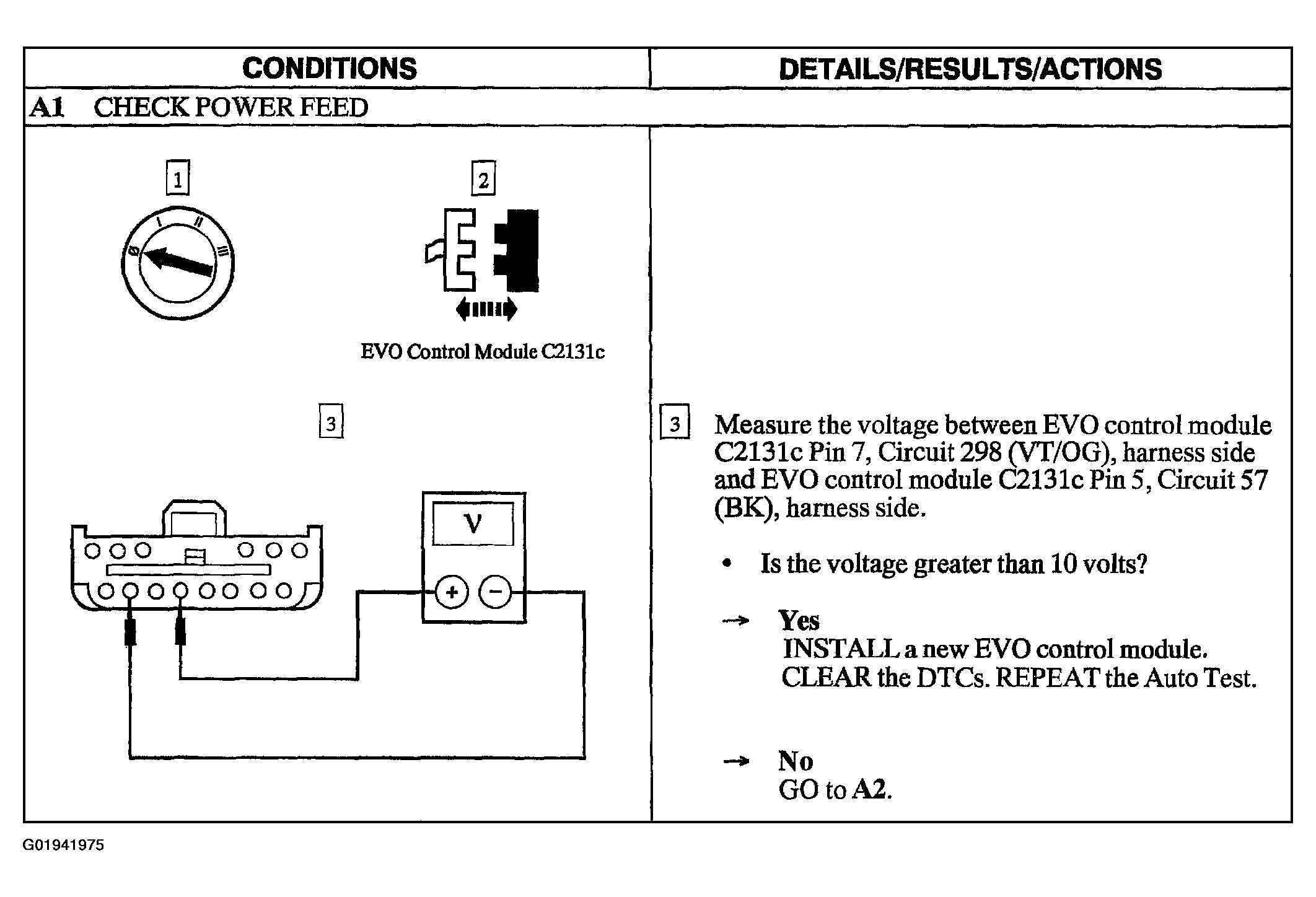

Fig 1: Pinpoint Test A: No Communication With The EVO Control Module (Step A1)

Courtesy of FORD MOTOR CO.

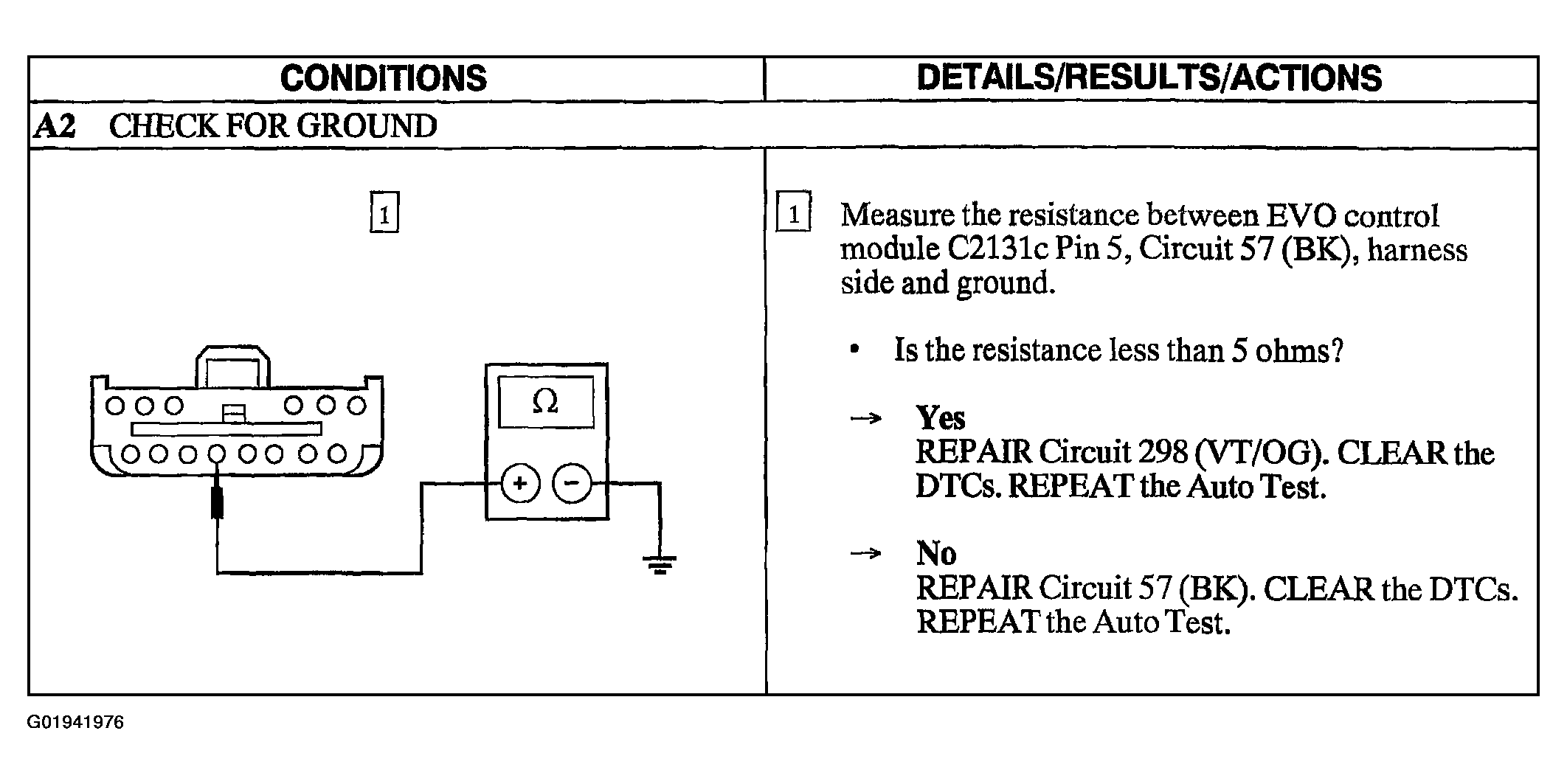

Fig 2: Pinpoint Test A: No Communication With The EVO Control Module (Step A2)

Courtesy of FORD MOTOR CO.
