Removal & Installation: Reservoir: Removal

  1. Drain the reservoir using a hand suction pump.
  2. Position a drain pan.
  3. Disconnect the power steering reservoir pump hose (3691) and the power steering return hose (3A713).

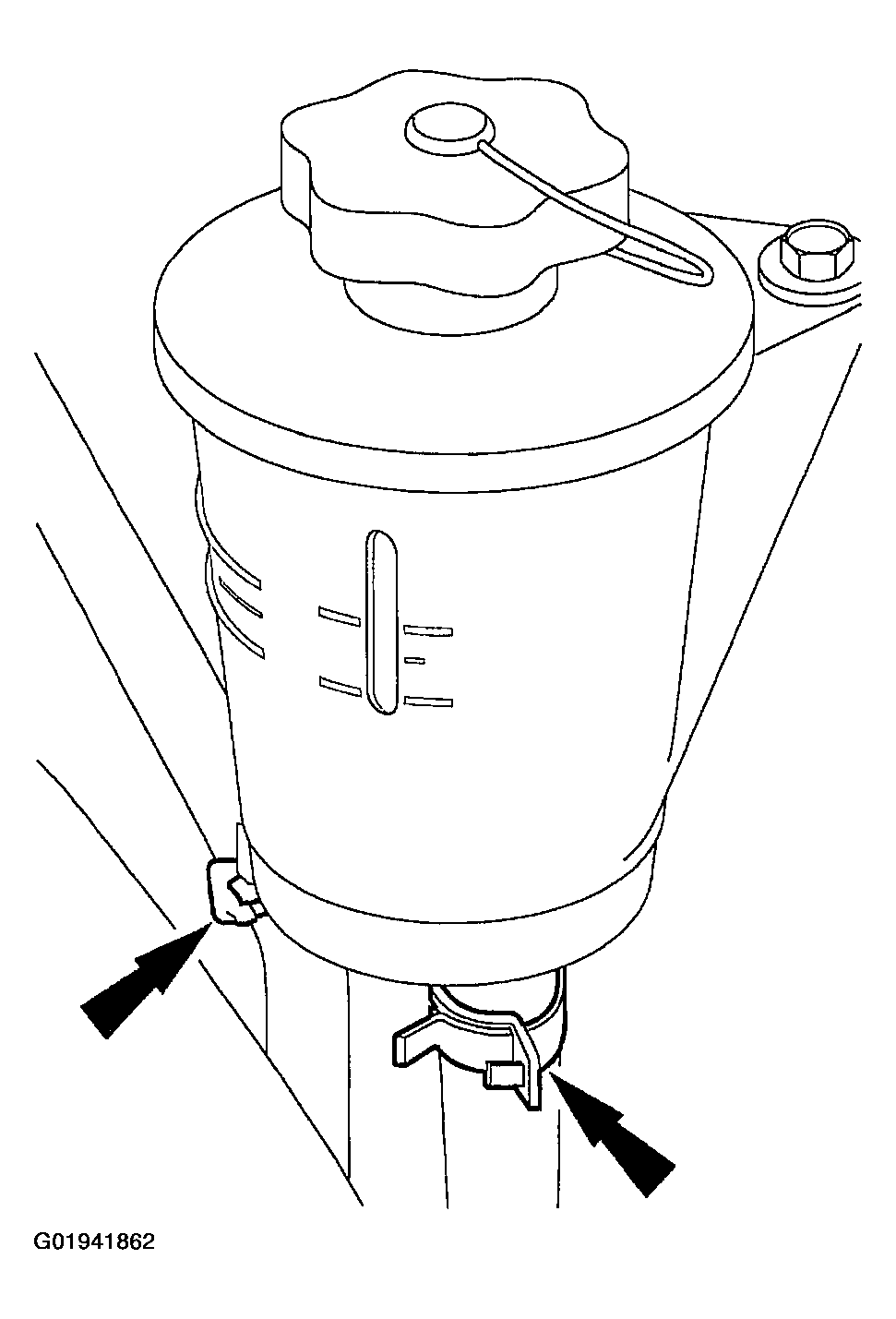

    Fig 1: Identifying Power Steering Reservoir Pump Hose & Return Hose
    G01941862Courtesy of FORD MOTOR CO.
  4. Remove the screw.

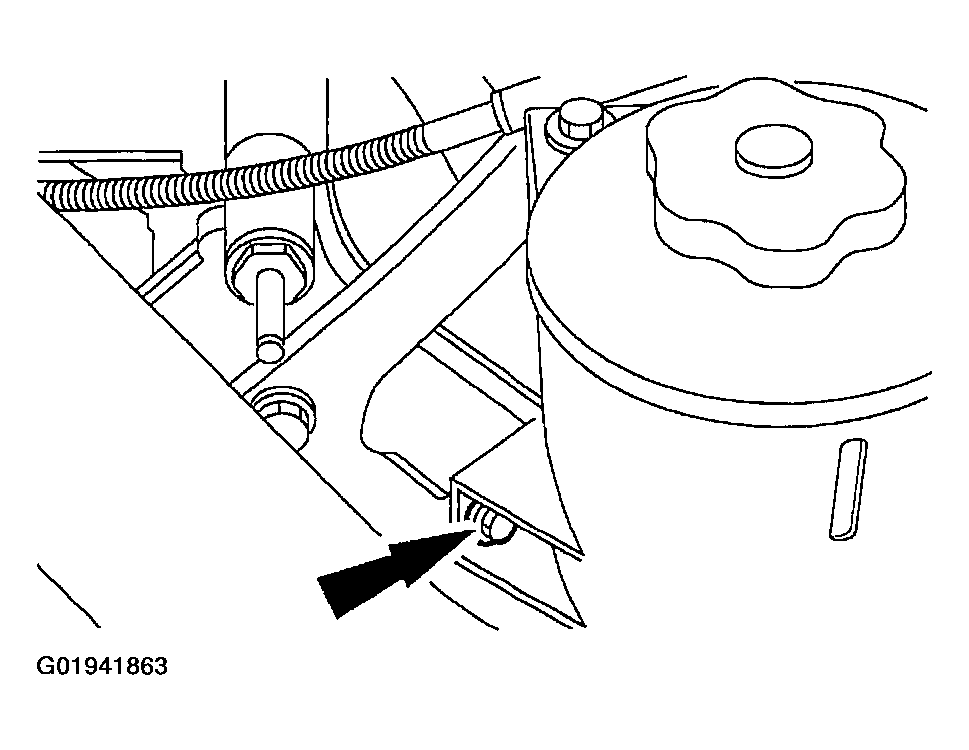

    Fig 2: Identifying Power Steering Reservoir Pump Bolt
    G01941863Courtesy of FORD MOTOR CO.
  5. Remove the screws and the power steering pump reservoir (3E764).

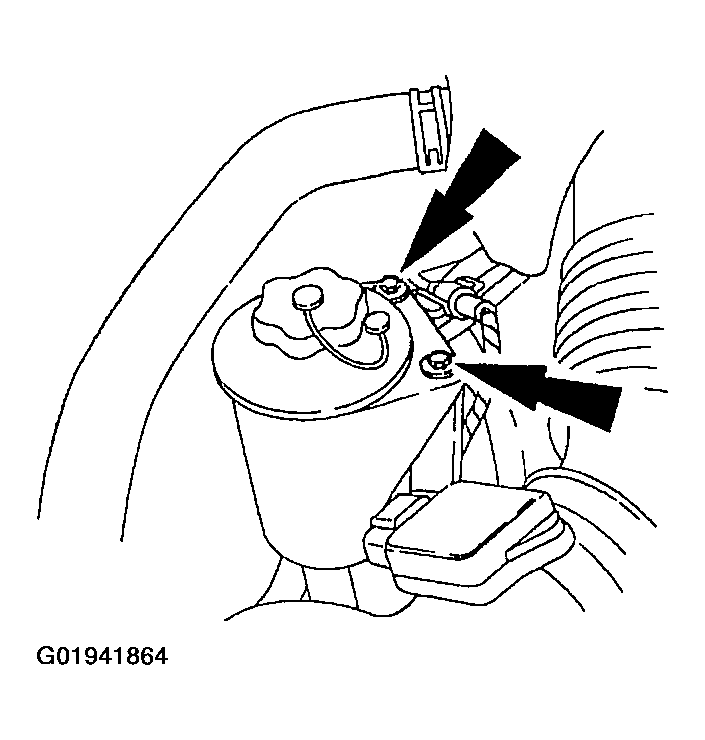

    Fig 3: Identifying Power Steering Pump Reservoir Screws
    G01941864Courtesy of FORD MOTOR CO.
