Removal & Installation: Pump: Removal

All Vehicles

1. Remove the drive belt.
2. Raise the vehicle.
3. Remove the routing bracket.

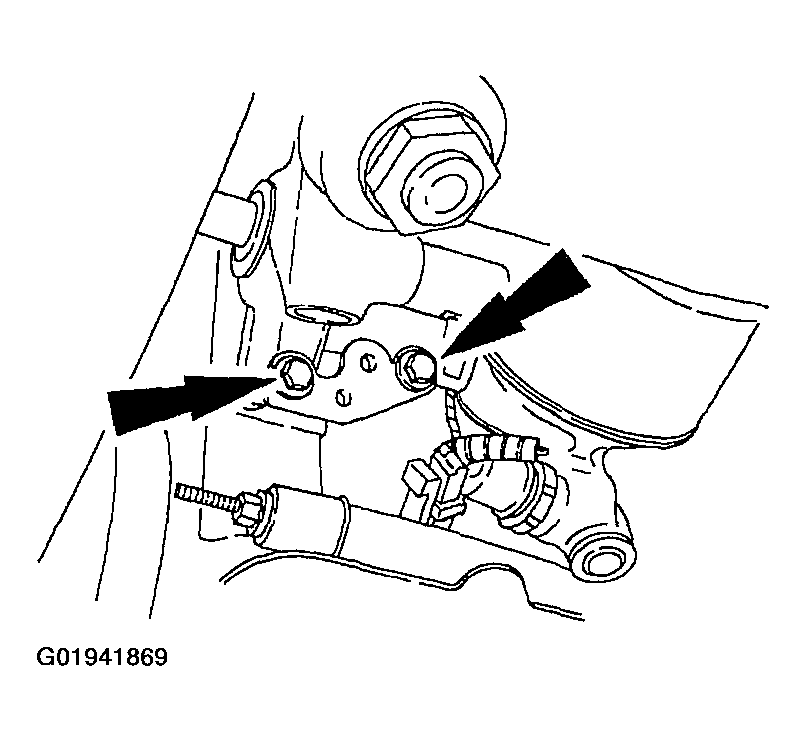

   Fig 1: Identifying Routing Bracket

   Courtesy of FORD MOTOR CO.

   Vehicles With EVO Steering System

4. Disconnect the power steering auxiliary actuator electrical connector.

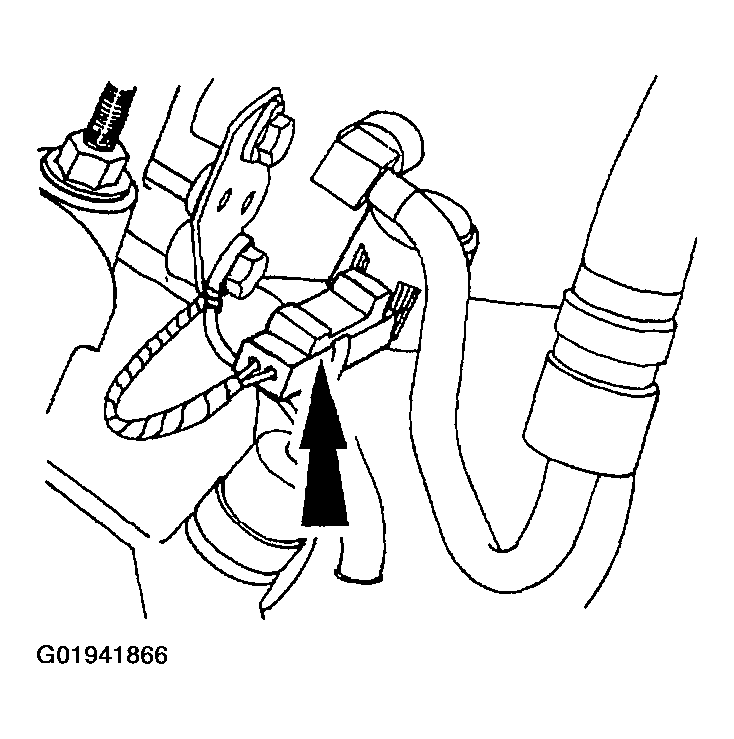

   Fig 2: Identifying Power Steering Auxiliary Actuator Electrical Connector

   Courtesy of FORD MOTOR CO.

   All Vehicles

5. Remove the pulley. For additional information, refer to PULLEY - PUMP .
6. Disconnect the hose.

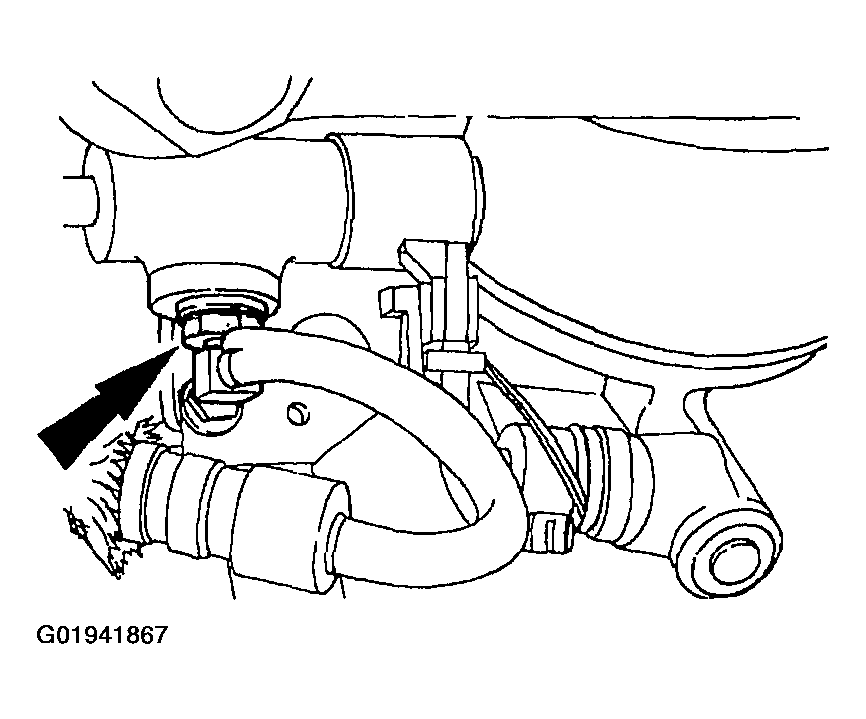

   Fig 3: Identifying High-Pressure Power Steering Hose

   Courtesy of FORD MOTOR CO.
7. Disconnect the hose.

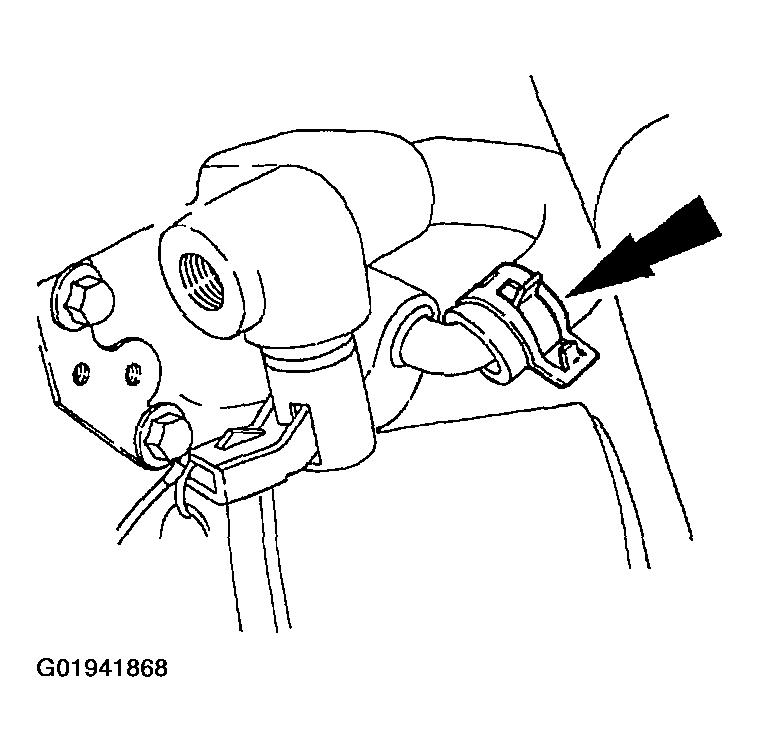

   Fig 4: Identifying Low-Pressure Power Steering Hose

   Courtesy of FORD MOTOR CO.
8. Remove the four bolts and the power steering pump (3A674).

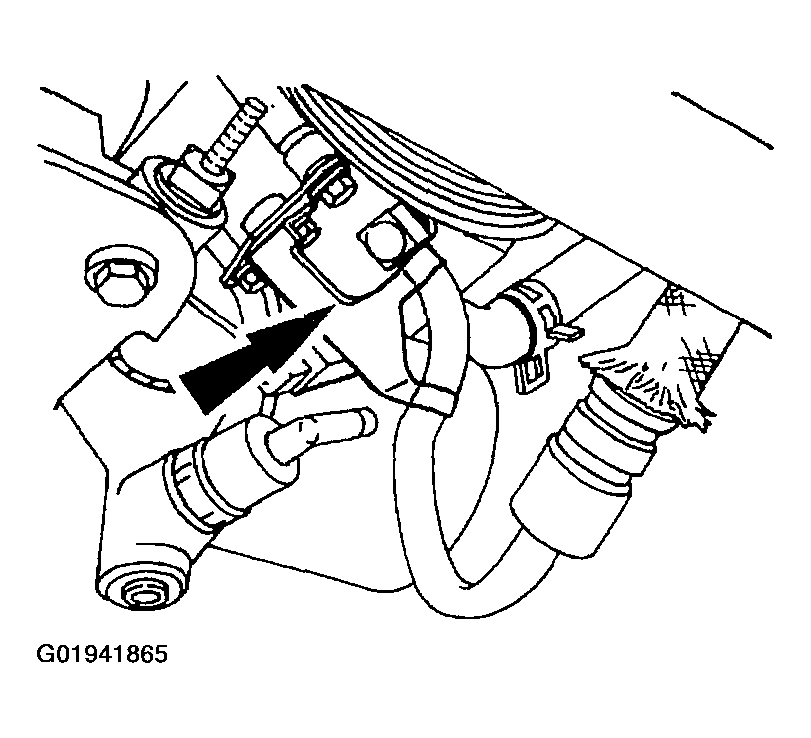

   Fig 5: Identifying Power Steering Pump Bolts

   Courtesy of FORD MOTOR CO.

   Vehicles With EVO Steering System

9. If the power steering pump is to be replaced, remove the power steering auxiliary actuator (3N803).

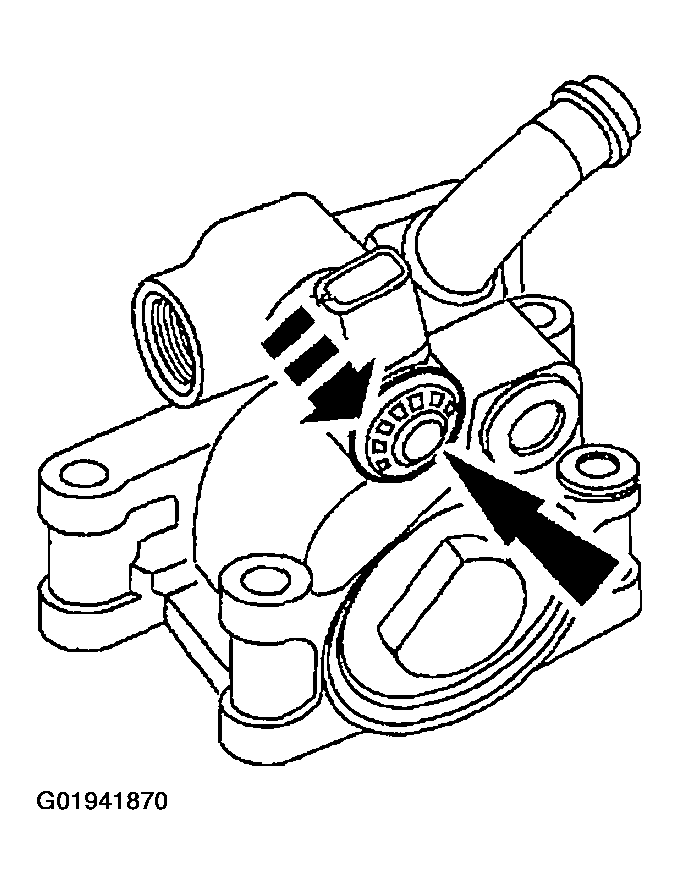

   Fig 6: Identifying Power Steering Auxiliary Actuator

   Courtesy of FORD MOTOR CO.
