Pulley - Pump: Removal
- Remove the drive belt.
- Raise the vehicle.

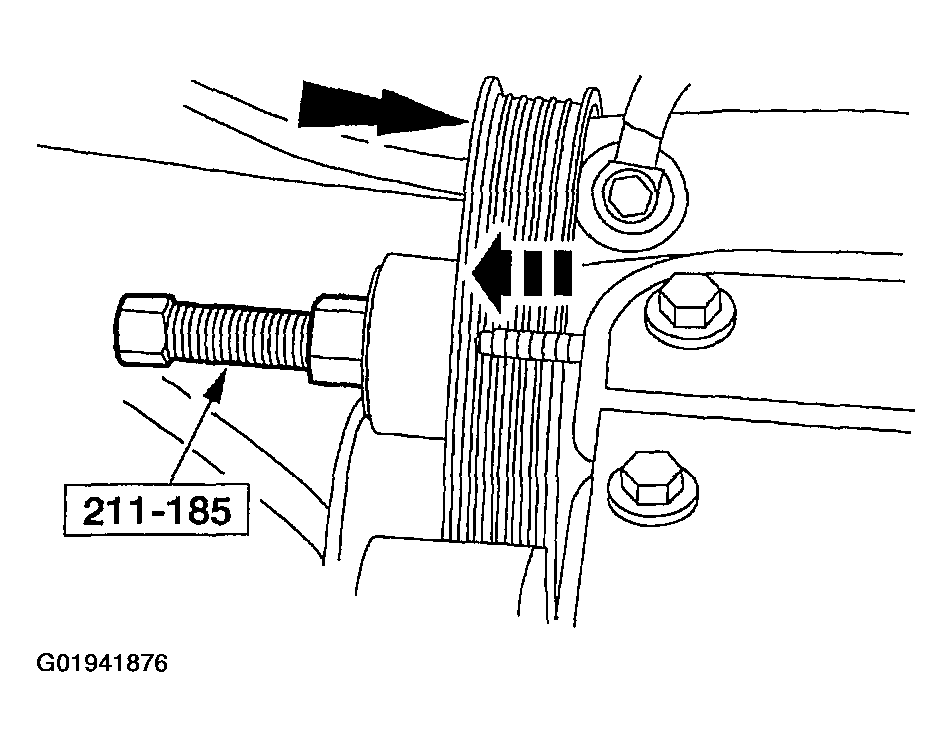

- Use the special tool to remove the pulley.
- Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, discard the pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub.
CAUTION:
Do not apply pressure on the power steering pump rotor shaft. Pressure will damage internal thrust areas of the power steering pump.
