Cooler - Fluid: Removal

Remove the air cleaner assembly.
Remove the bolt and the bracket. Repeat on the opposite side.

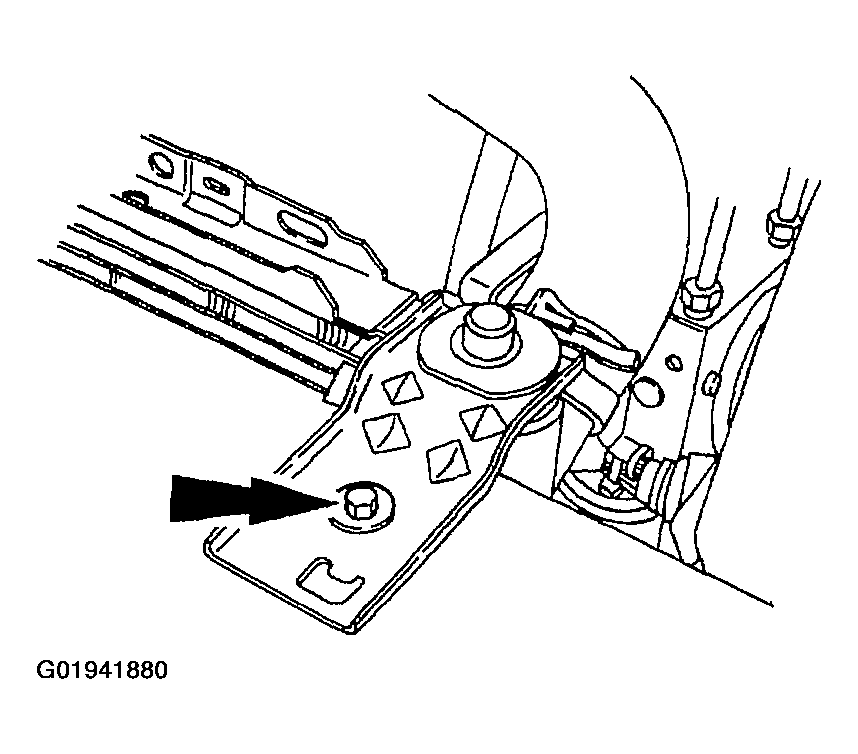

Fig 1: Identifying Radiator Bracket Bolt
Courtesy of FORD MOTOR CO.
Disconnect the hoses.

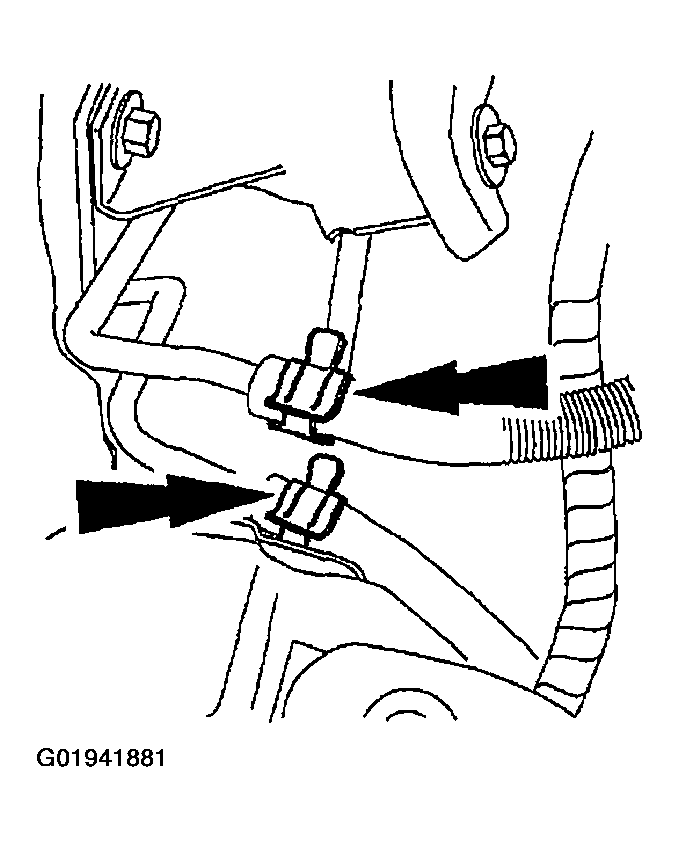

Fig 2: Identifying Lower Power Steering Cooler Hoses
Courtesy of FORD MOTOR CO.
Disconnect the hoses.

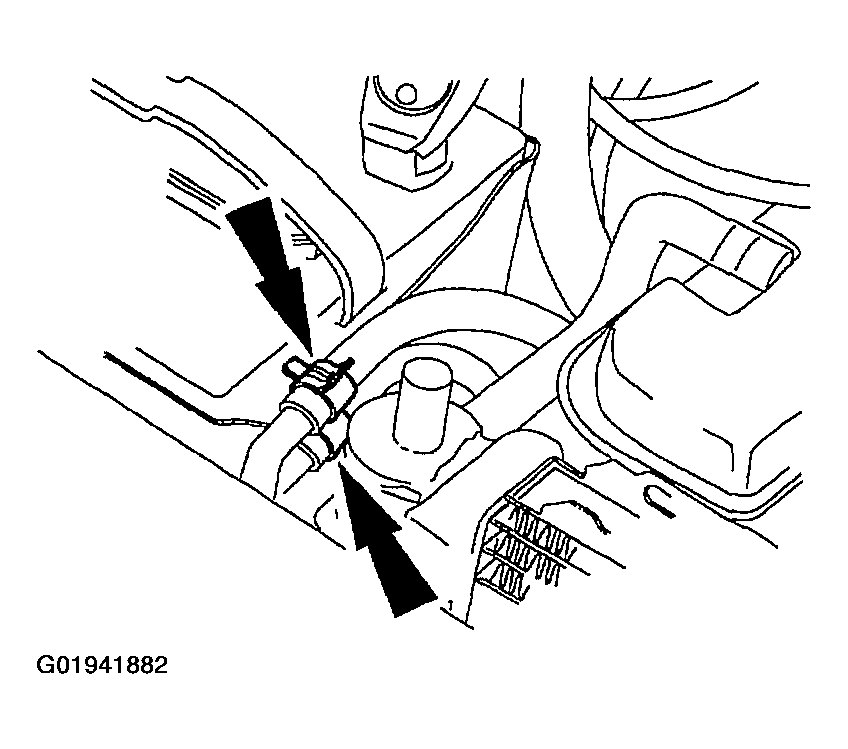

Fig 3: Identifying Upper Power Steering Cooler Hoses
Courtesy of FORD MOTOR CO.
Remove the bolt. Repeat on the opposite side.

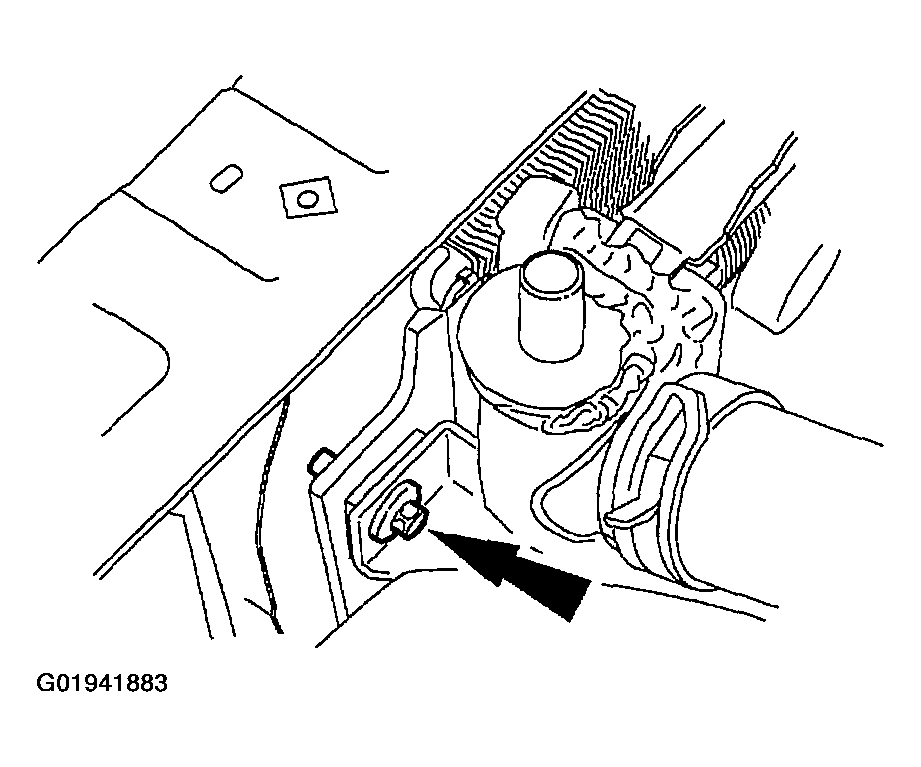

Fig 4: Identifying Radiator Mounting Bolt
Courtesy of FORD MOTOR CO.
Push back on the radiator and remove the power steering fluid cooler (3D746).
