Removal & Installation: Gear: Installation

Follow the removal procedure in reverse order.
- Install a new lock nut and pinch bolt.
- Install new seal rings as necessary. For additional information, refer to HOSE .

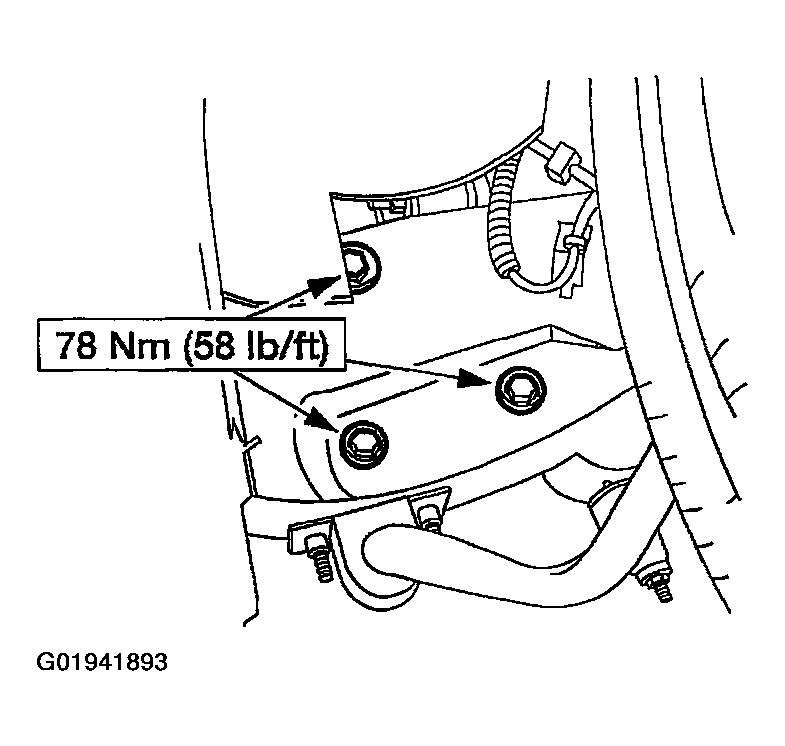

Fig 1: Tightening Steering Gear Bolts
Courtesy of FORD MOTOR CO.

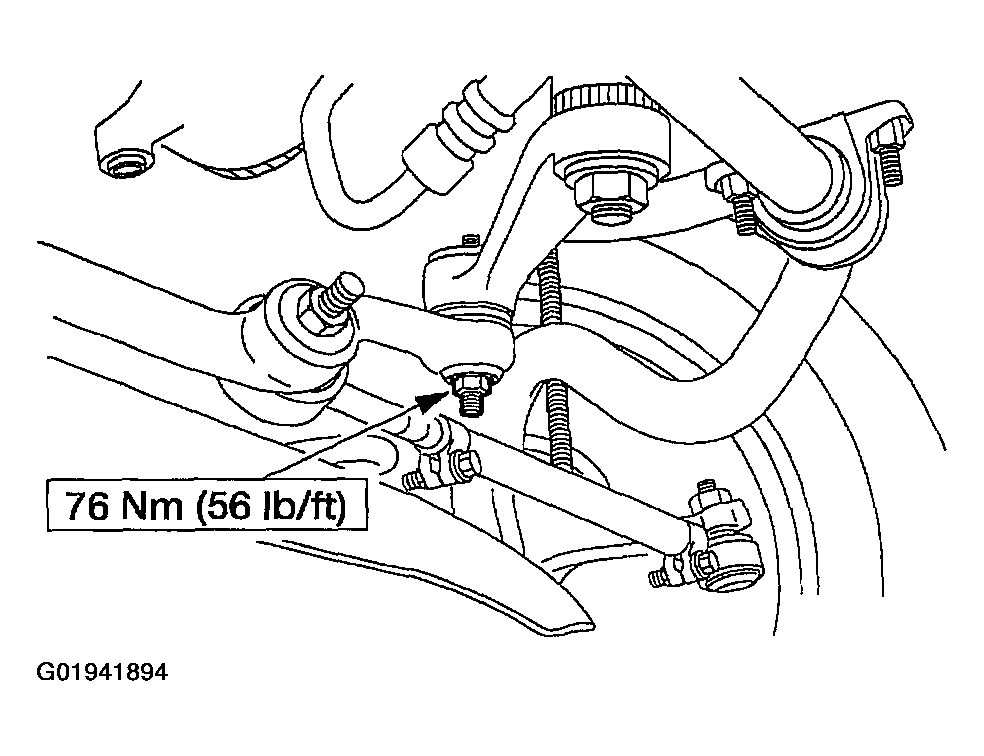

Fig 2: Tightening Steering Sector Shaft Arm Locknut
Courtesy of FORD MOTOR CO.

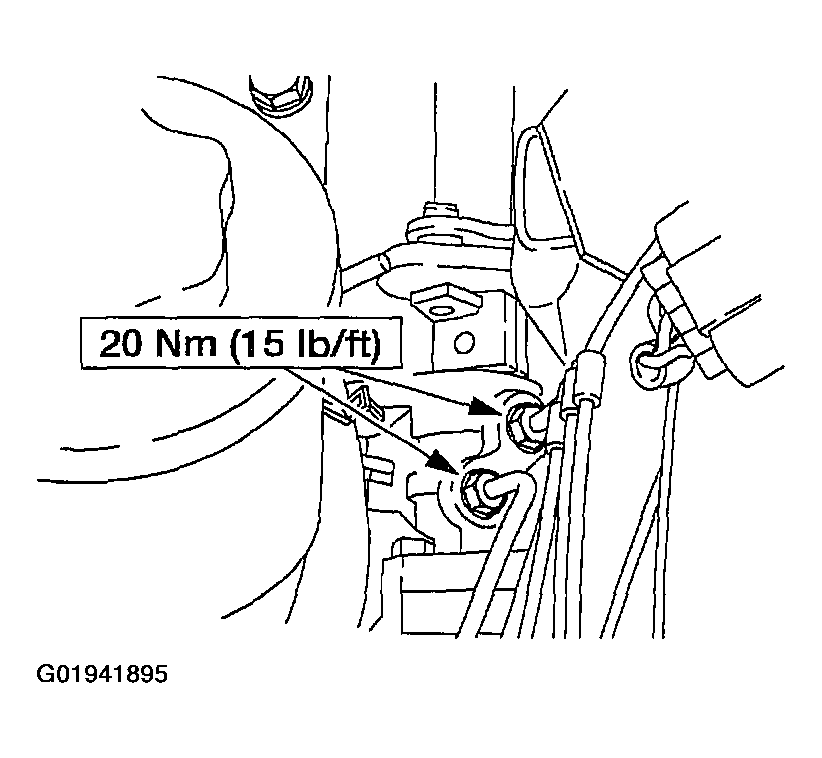

Fig 3: Tightening Power Steering Gear Lines
Courtesy of FORD MOTOR CO.

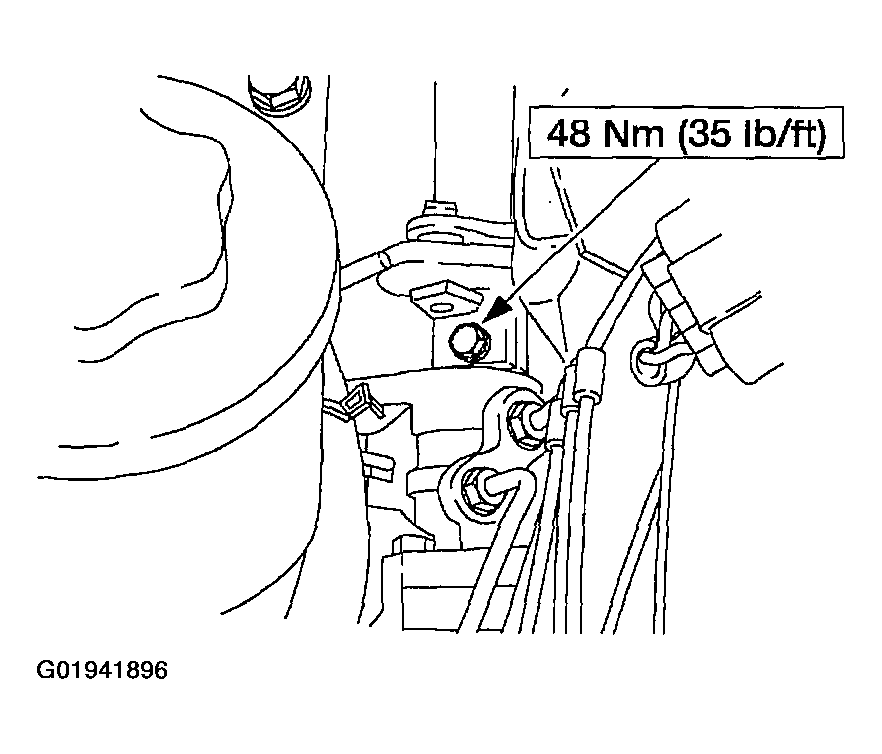

Fig 4: Tightening Pinch Bolt
Courtesy of FORD MOTOR CO.
Fill and leak check the system. For additional information, refer to FILL .
