Power Steering Control Valve Actuator: Removal

  1. Raise the vehicle.
  2. Remove the engine oil filter.

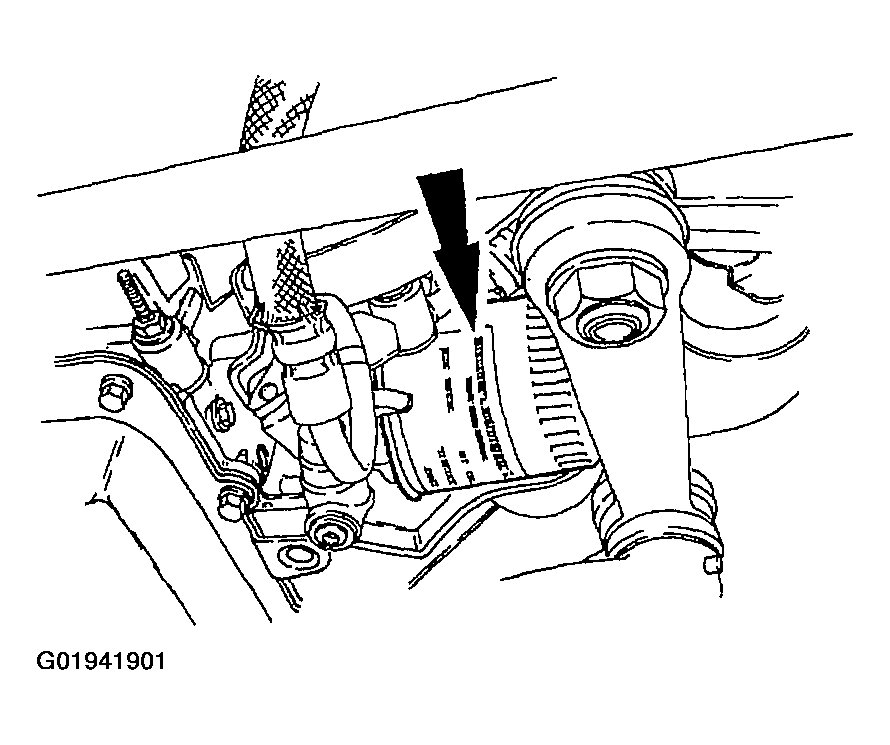

    Fig 1: Identifying Engine Oil Filter
    G01941901Courtesy of FORD MOTOR CO.
  3. Disconnect the power steering auxiliary actuator electrical connector.

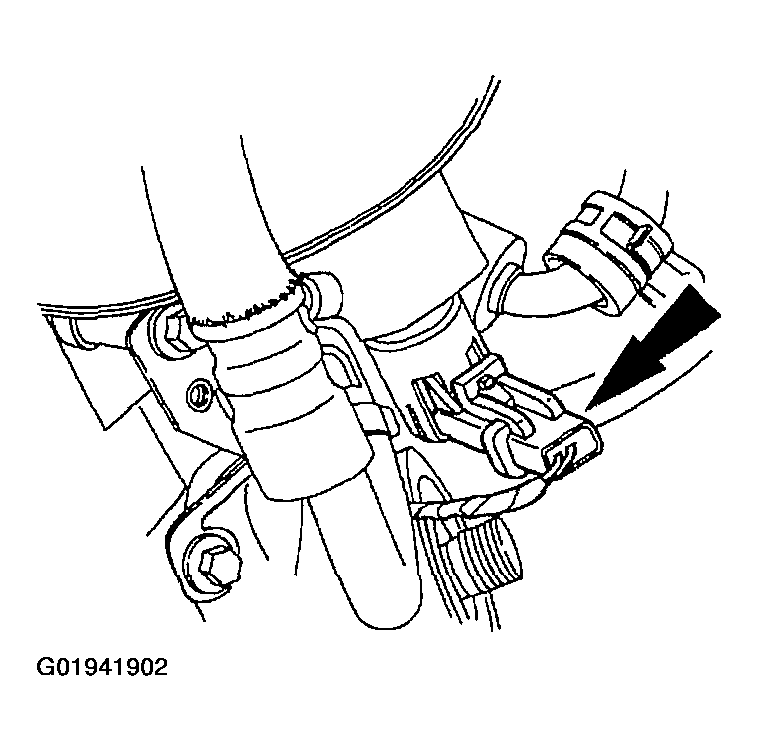

    Fig 2: Identifying Power Steering Auxiliary Actuator Electrical Connector
    G01941902Courtesy of FORD MOTOR CO.
  4. Remove the screw and the power steering auxiliary actuator (3N803).

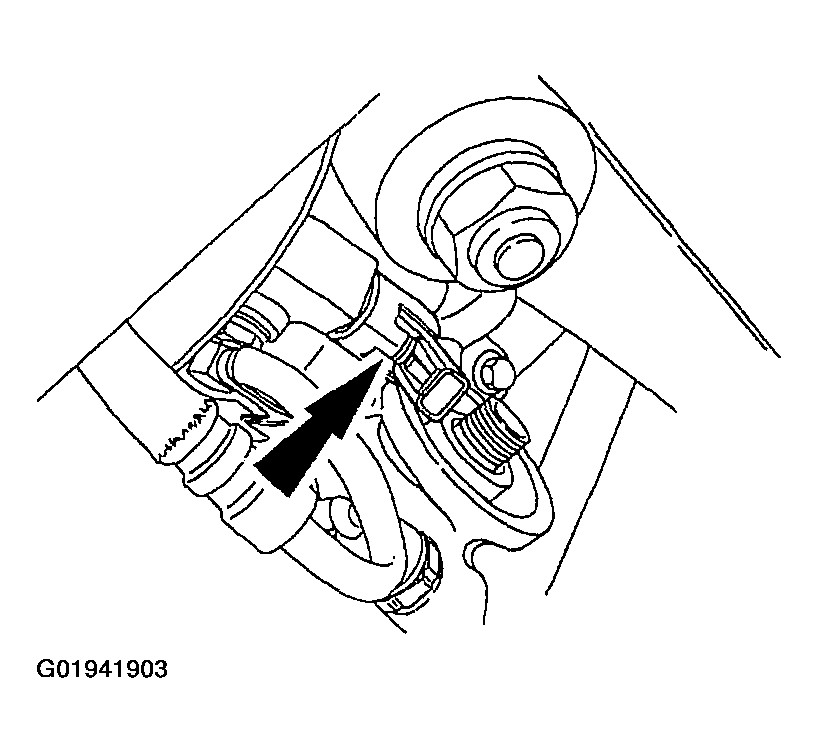

    Fig 3: Identifying Power Steering Auxiliary Actuator
    G01941903Courtesy of FORD MOTOR CO.
