Steering Wheel Rotation Sensor: Removal

  1. Remove the screws.

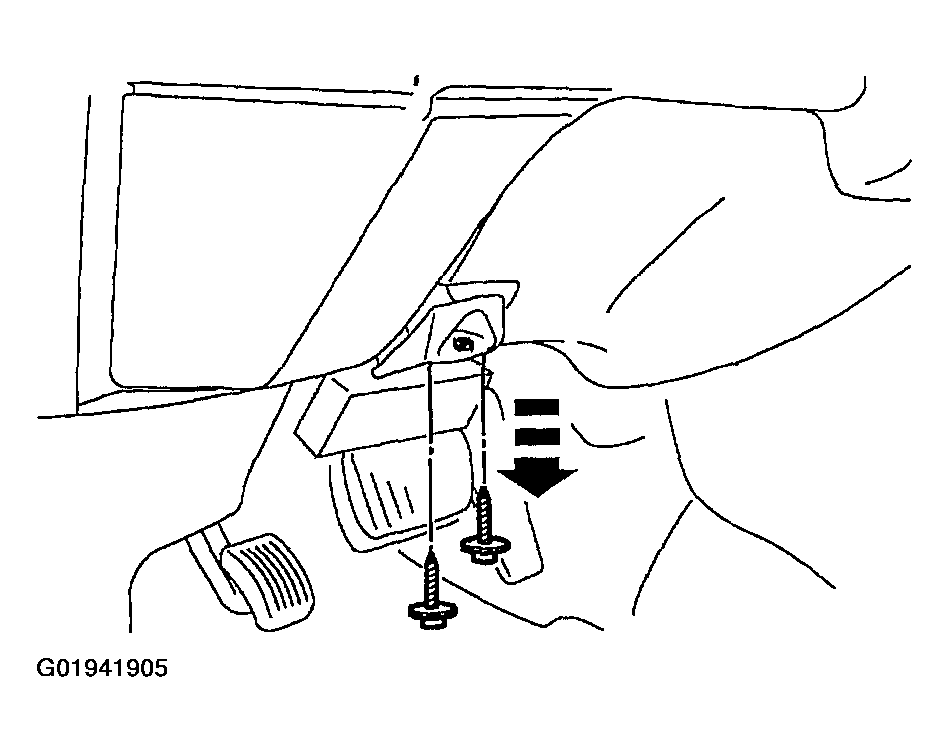

    Fig 1: Identifying Sound Panel Screws
    G01941905Courtesy of FORD MOTOR CO.
  2. Remove the sound panel.

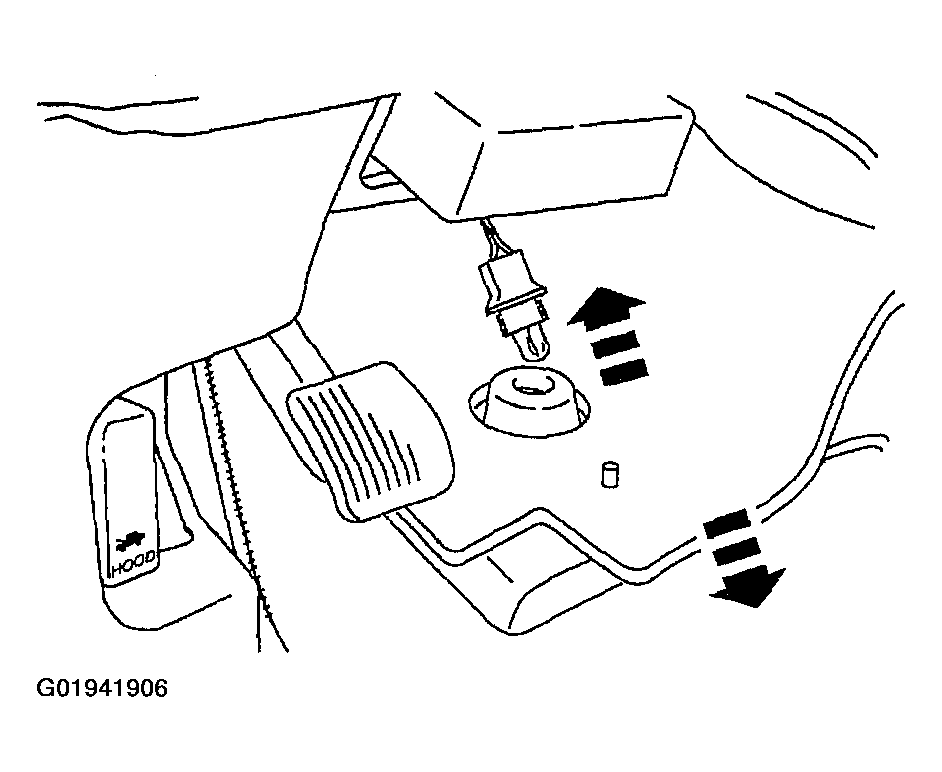

    Fig 2: Identifying Sound Panel
    G01941906Courtesy of FORD MOTOR CO.
  3. Remove the finish panel.

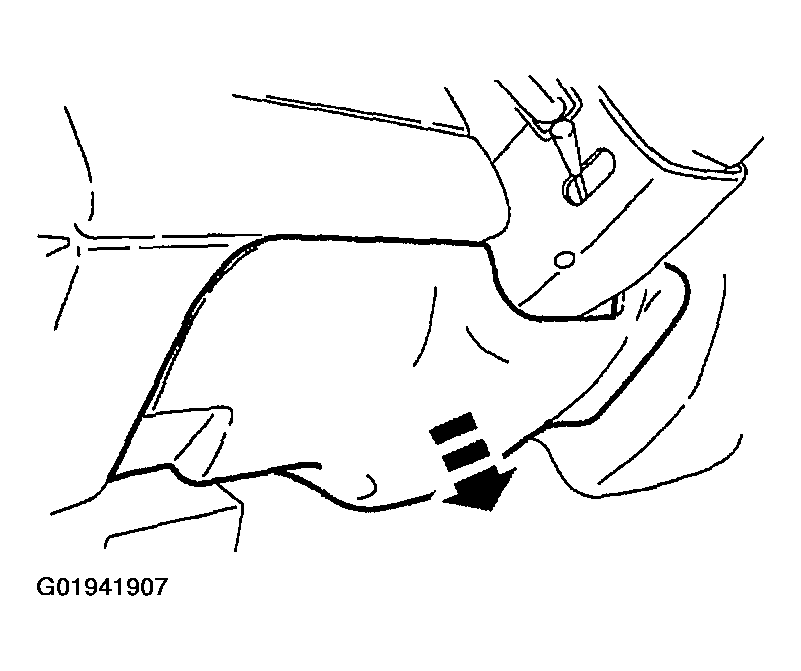

    Fig 3: Identifying Finish Panel
    G01941907Courtesy of FORD MOTOR CO.
  4. Remove the knee bolster.

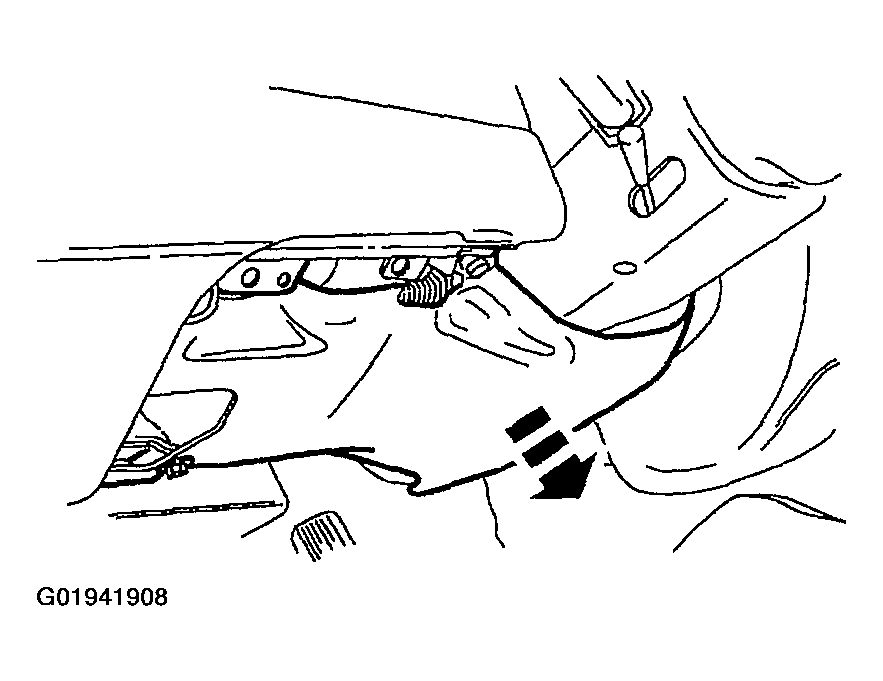

    Fig 4: Identifying Knee Bolster
    G01941908Courtesy of FORD MOTOR CO.
  5. Remove the bracket.

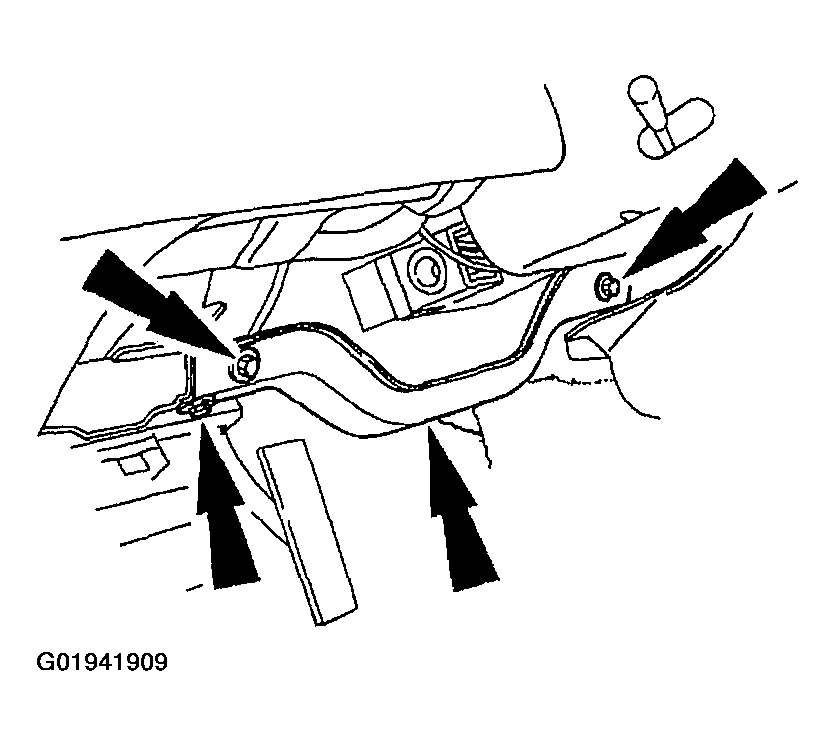

    Fig 5: Identifying Enter Support Bracket
    G01941909Courtesy of FORD MOTOR CO.
  6. Remove the sensor.
    1. Disconnect the wiring.
    2. Remove the screws.
    3. Remove the sensor.

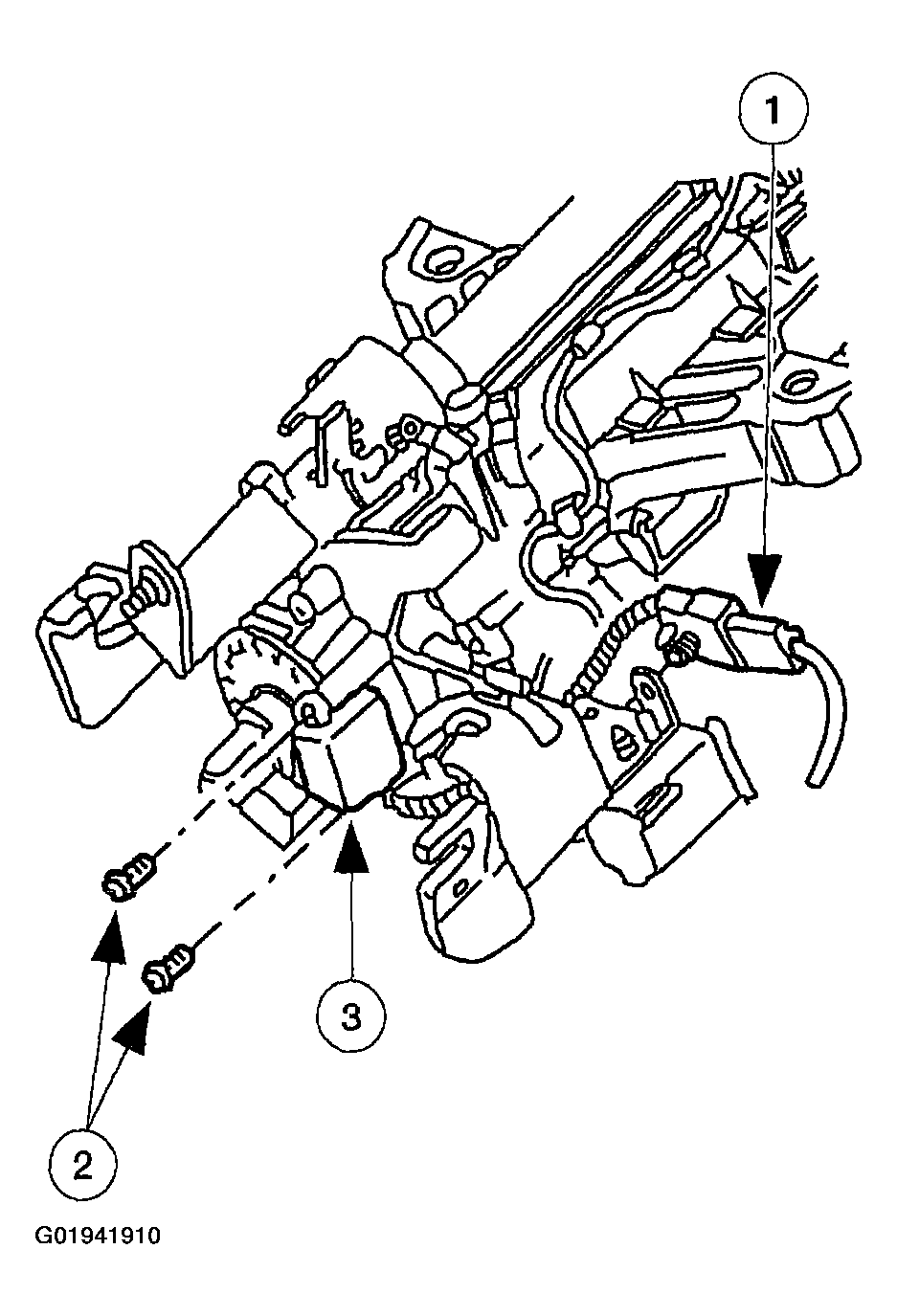

    Fig 6: Identifying Wiring, Screws & Sensor
    G01941910Courtesy of FORD MOTOR CO.
