Pinpoint Test U: The Exterior Lamps Are Inoperative

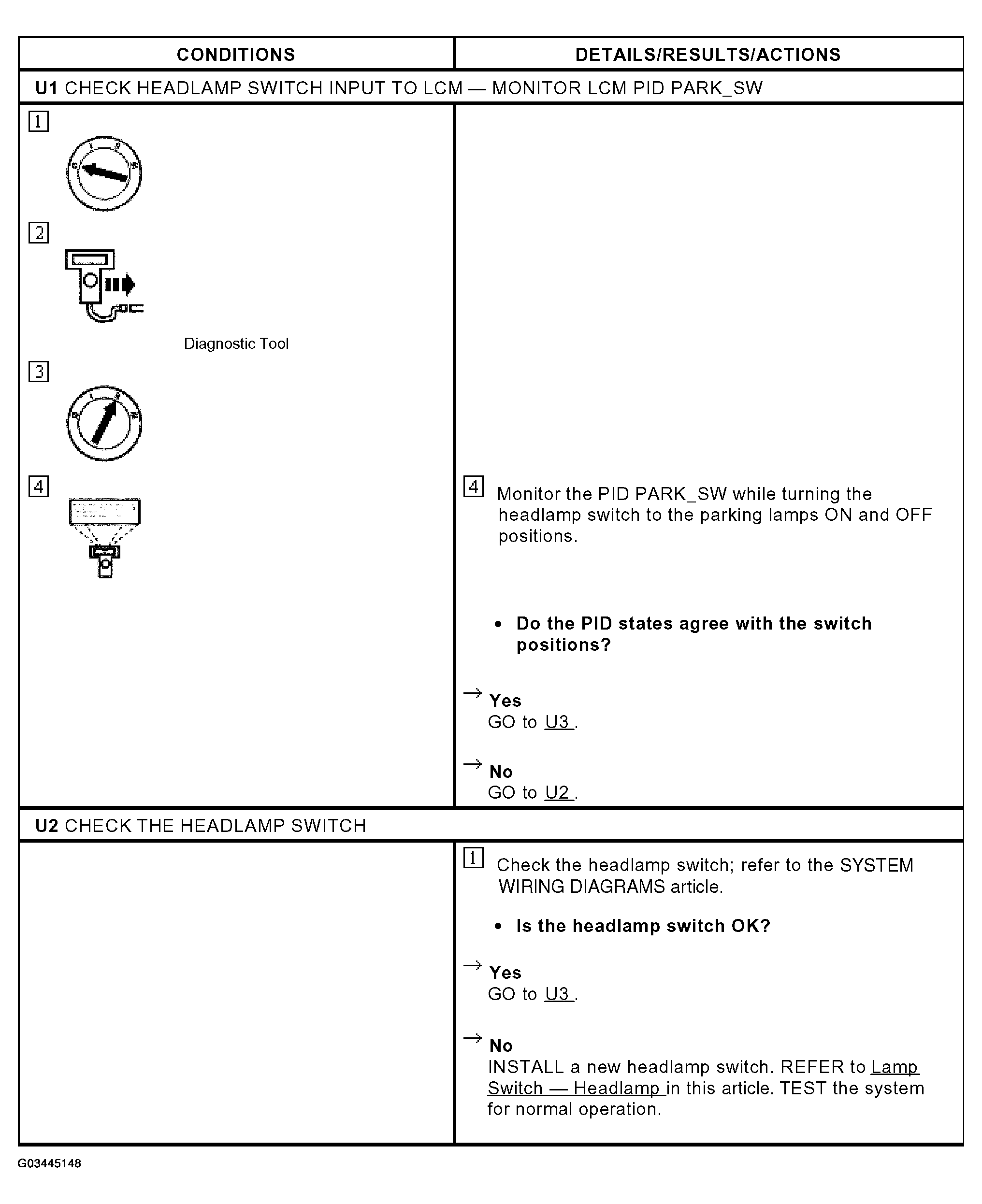

Fig 1: Pinpoint Test U: Exterior Lamps Are Inoperative (U1 Of U2)
G03445148Courtesy of FORD MOTOR CO.

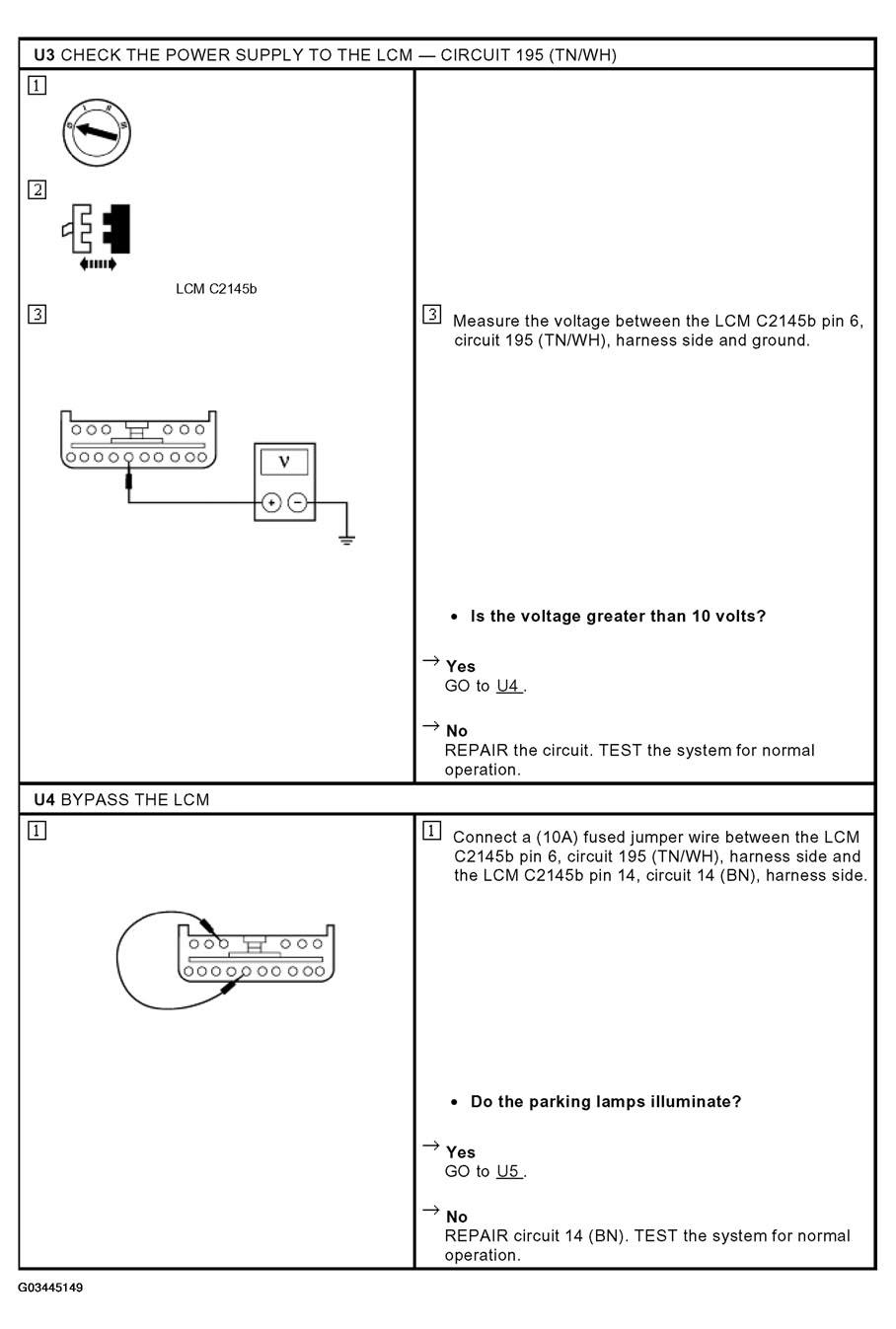

Fig 2: Pinpoint Test U: Exterior Lamps Are Inoperative (U3 Of U4)
G03445149Courtesy of FORD MOTOR CO.

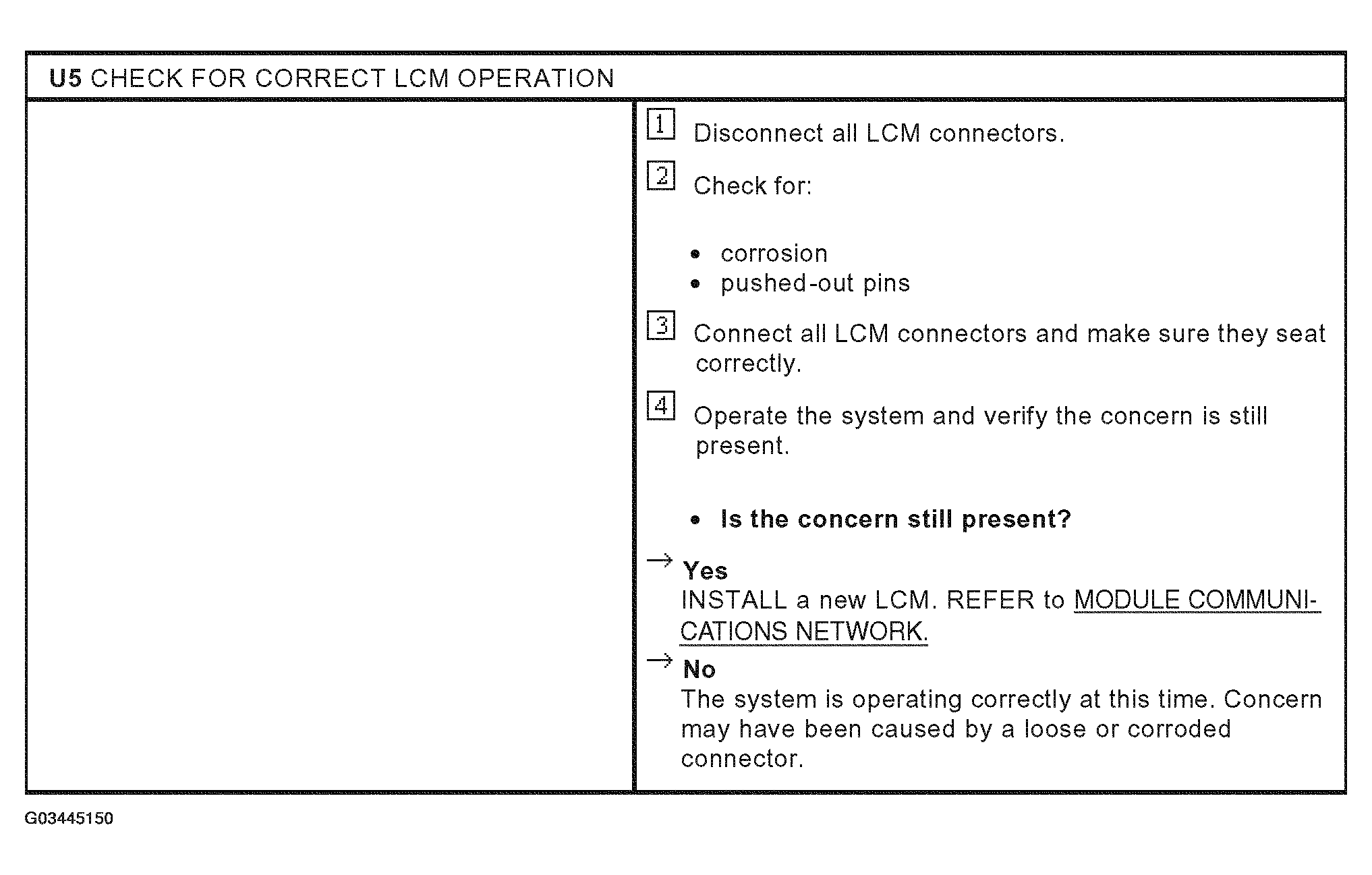

Fig 3: Pinpoint Test U: Exterior Lamps Are Inoperative (U3)
G03445150Courtesy of FORD MOTOR CO.
