Pinpoint Test Y: The Individual Reversing Lamp Is Inoperative

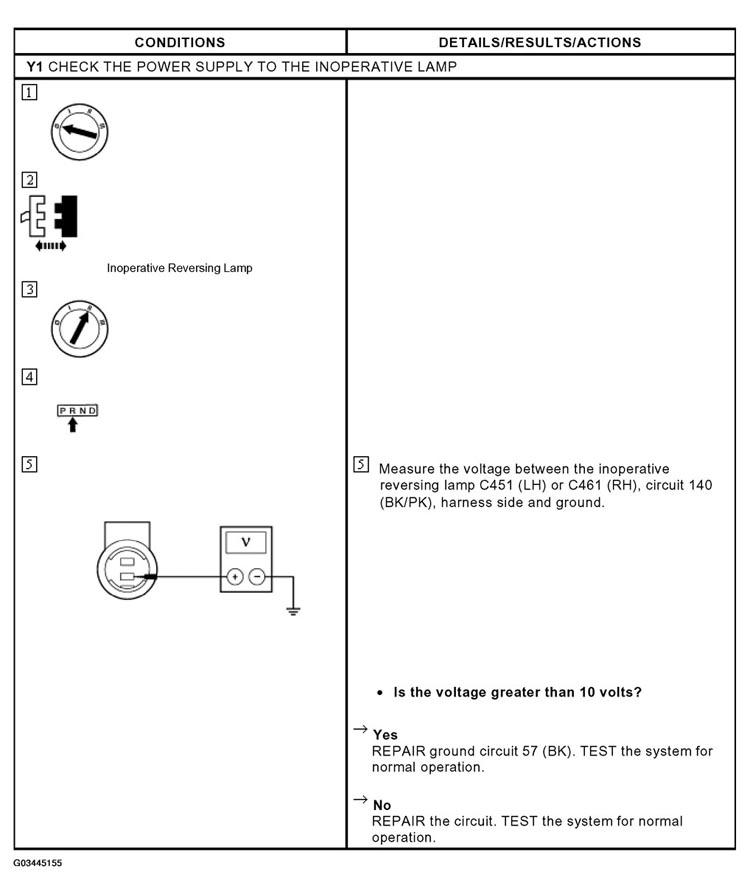

Fig 1: Pinpoint Test Y: Individual Reversing Lamp Is Inoperative

G03445155

Courtesy of FORD MOTOR CO.
