Pinpoint Test Aa: The Public Safety Equipment Power Supply Is Inoperative - Red Accessory Connector

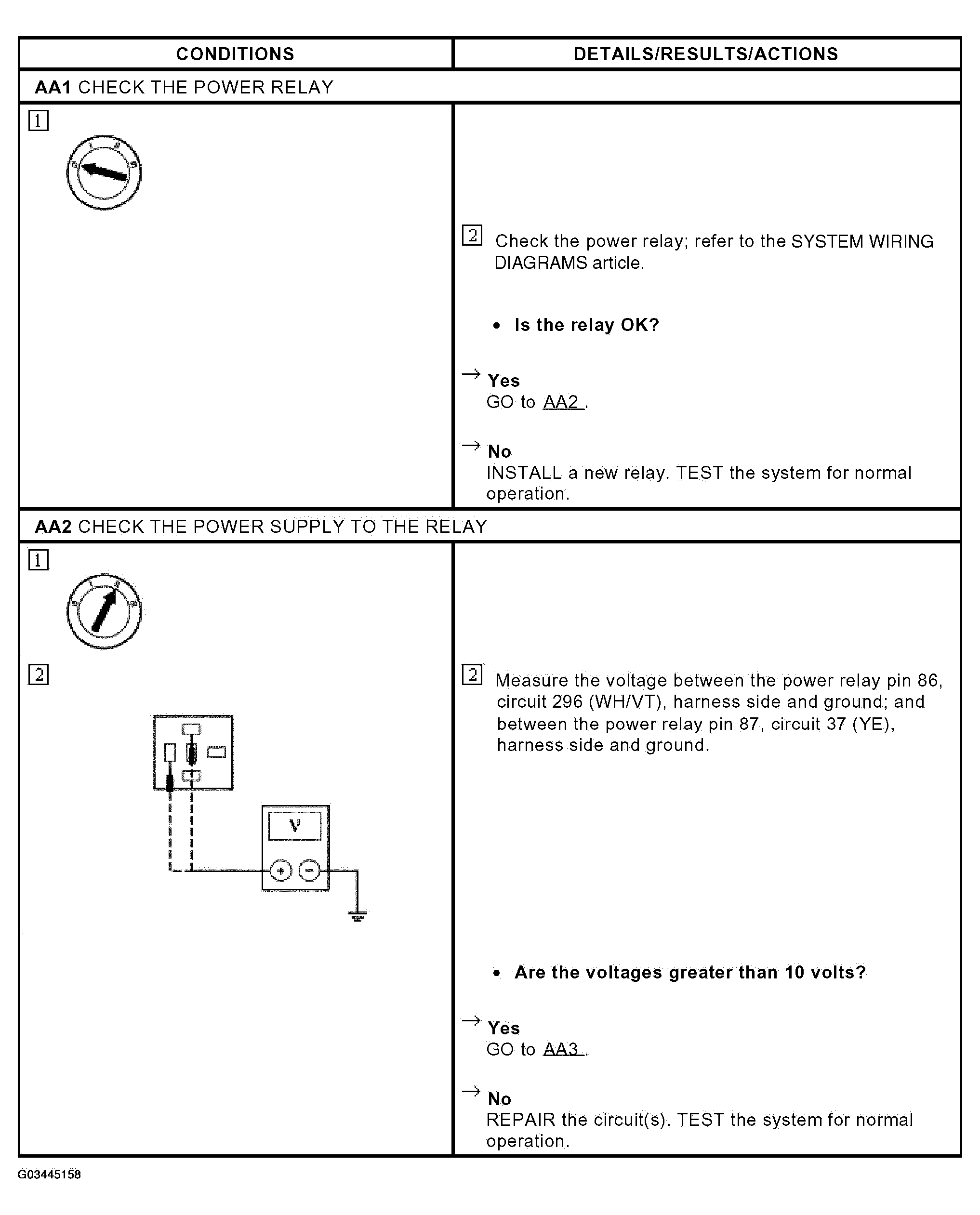

Fig 1: Pinpoint Test AA: Public Safety Equipment Power Supply Is Inoperative - Red Accessory Connector (AA1 Of AA2)
G03445158Courtesy of FORD MOTOR CO.

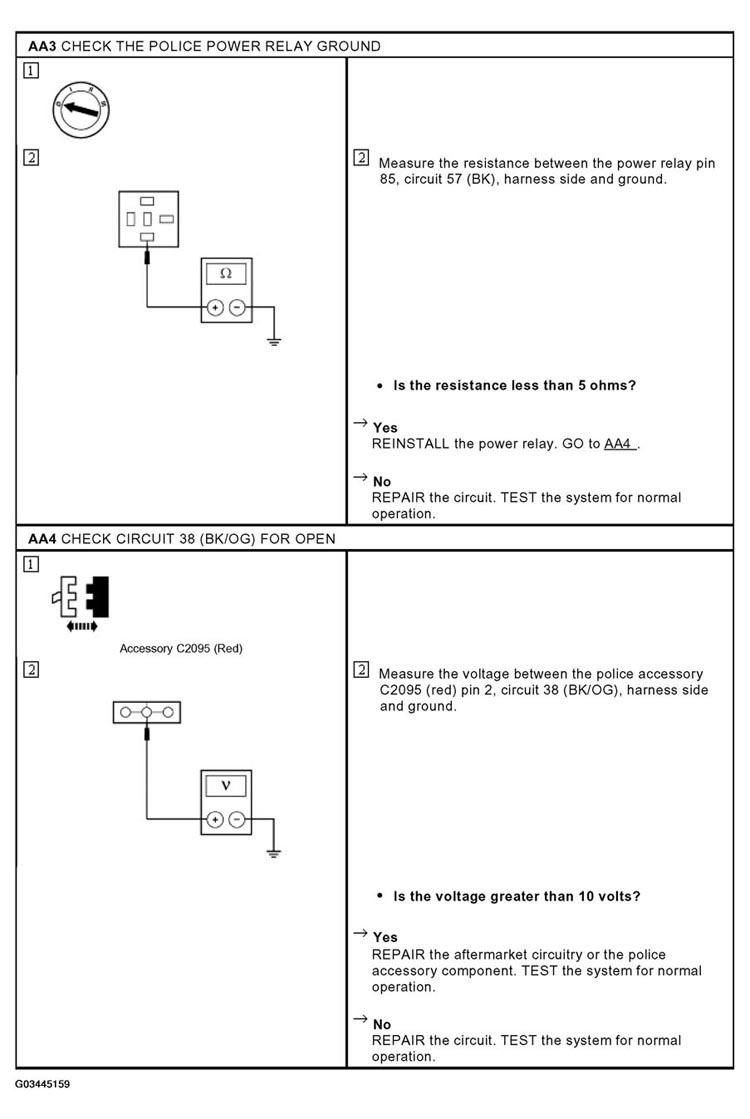

Fig 2: Pinpoint Test AA: Public Safety Equipment Power Supply Is Inoperative - Red Accessory Connector (AA3 Of AA4)
G03445159Courtesy of FORD MOTOR CO.
