PINPOINT TEST ad: THE PUBLIC SAFETY LIGHTING COMPONENT IS INOPERATIVE - LH PACKAGE TRAY LAMP(S)

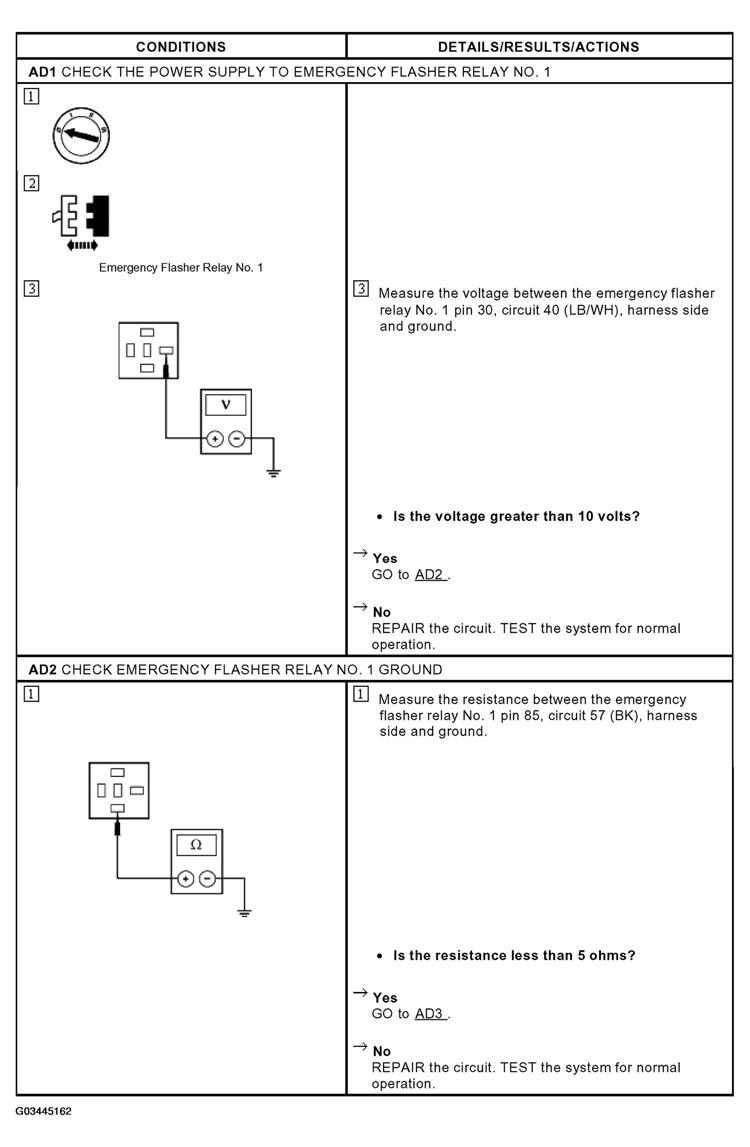

Fig 1: Pinpoint Test AD: Public Safety Lighting Component Is Inoperative-LH Package Tray Lamp (AD Of AD2)
G03445162Courtesy of FORD MOTOR CO.

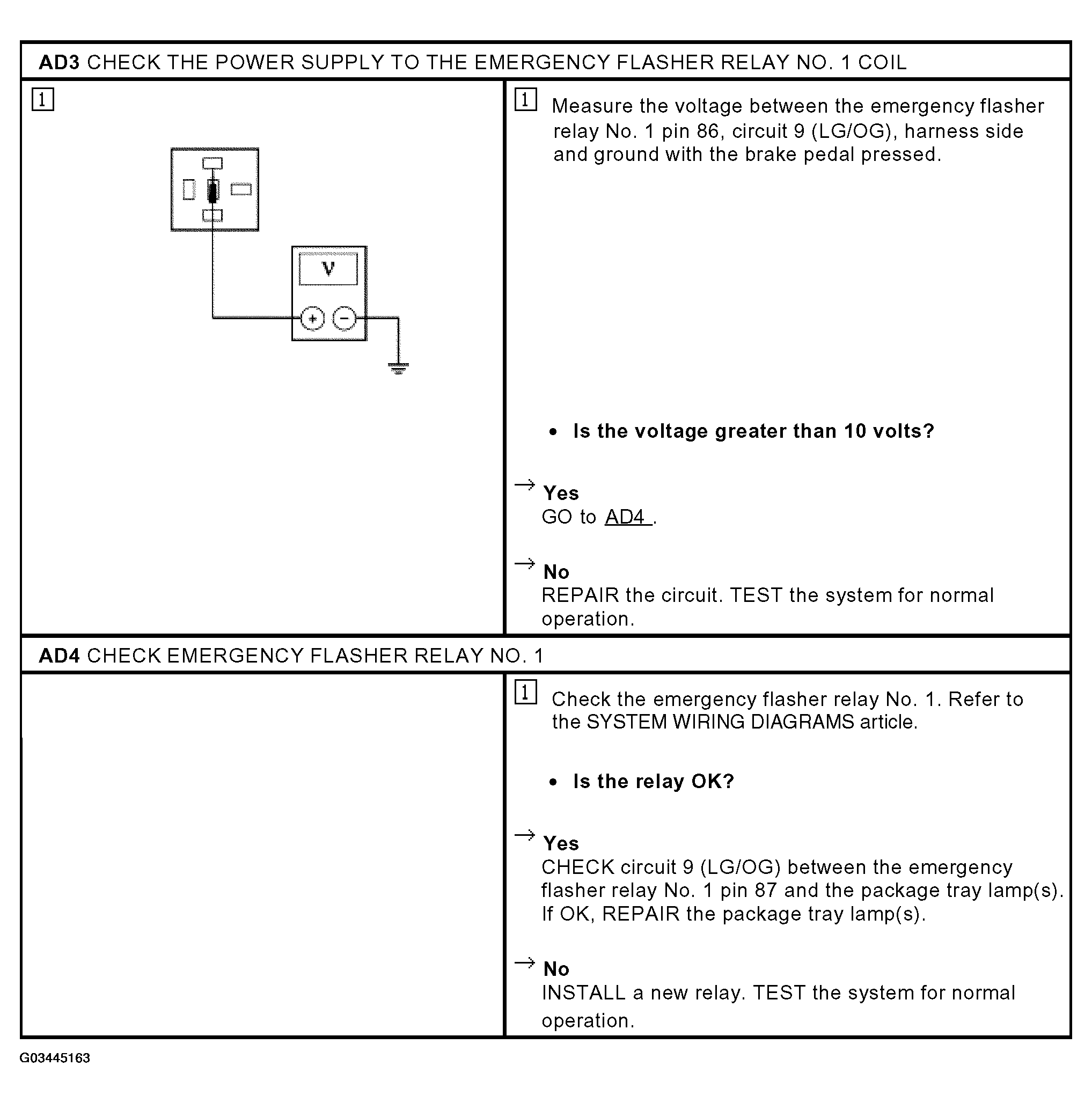

Fig 2: Pinpoint Test AD: Public Safety Lighting Component Is Inoperative-LH Package Tray Lamp (AD3 Of AD4)
G03445163Courtesy of FORD MOTOR CO.
